Steel Antenna Poles Towers Monopole Tower For Broadcasting / Cell Phone Signal

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel

Detail Information

Material: GB/ASTM/JIS/EN. Type: Steel Tubular Tower
Surface Coating: Hot Dip Galvanization Or Painting Voltage Grade: 10-750KV
Galvanization: Hot Dip Galvanization Shape: » Conical » Octagonal » Tapered Round
High Light:

self supporting tower

,

transmission tower

Product Description

Steel Antenna Poles Towers Monopole Tower For Broadcasting / Cell Phone Signal



Quick Detail:

Steel Antenna Microwave Communication Monopole Tower For Broadcasting/ 4G /Cell Phone Signal tower



Product Range:

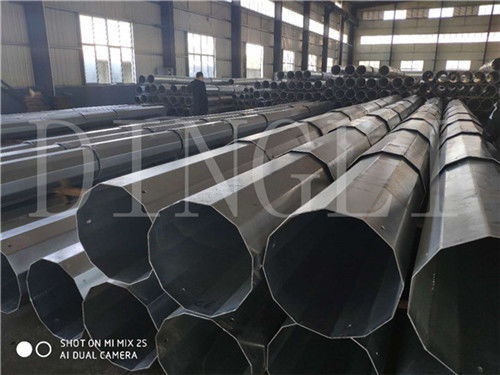

Steel Antenna Poles Towers Monopole Tower For Broadcasting / Cell Phone Signal 0



































































Steel Antenna Microwave Communication Monopole Tower For Broadcasting/ 4G /Cell Phone

Signal tower  is a type of signal transmission tower, also called a signal transmission tower or a signal

tower. Its main function is to support signal transmission and to support signal transmission antennas.


There are the following communication towers: angle steel four-post communication tower, steel pipe

three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),

lifting communication tower, and movable communication tower.



Product Description

Product Name Steel Antenna Microwave Communication Monopole Tower For Broadcasting/ 4G /Cell Phone Signal Application • GSM
• WIFI
• Microwave
• Broadcasting


Material Q235B (SS400)
S355
Q345B(ASTM A572 Gr.50)
Shape » Conical
» Octagonal
» Tapered round
Thickness 4mm-30mm

Installation

Method

Frange Connection
/ Direct Buried
Surface Treatment

Hot Dip Galvanization/

Powder Coating

H.D.G. Standard GB/T 13912-2002
or ASTM A 123
Welding Standard GBT 12467.2-2009
/ AWS D 1.1
/ BS EN 1011-1
Install Method
Of The Pole

Slip Joint

/Base Plate

Package

Nude Packing or

Customized

Service Life Of

The Poles

More than 30 Years

With more than 20 years experiences on the steel pole,we have manufactured and exported huge quantity

of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which

service for the signal transmission industry development of the world.We have the complete production line

and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the

electric power poles everyday. A quick production period and delivery schedule ensured our client have more

obvious advantage in their market.

The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate

which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized

and packing for delivery as following shows:

1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa.

Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs

and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close

scrutinyto deliver what you need.

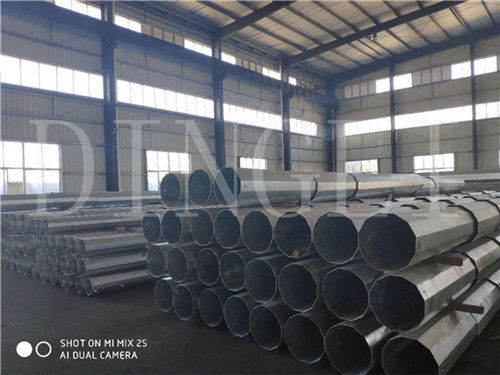

Steel Antenna Poles Towers Monopole Tower For Broadcasting / Cell Phone Signal 1

































































Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual

inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc.

but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas

for stress, along with known behavior of different materials under stress, to determine if any one point on

the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a

mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.

Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you

how to erect the tower structure step by step ,we also can make the tower structure erection Assembly

drawing and assembly instruction .so it will help you out on tower Structure erection easily

Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings

and confirm all shop drawings, technical specification, and which standard to conform. Before mass

production, we must received all signed approved shop drawings and technical documents from our client.

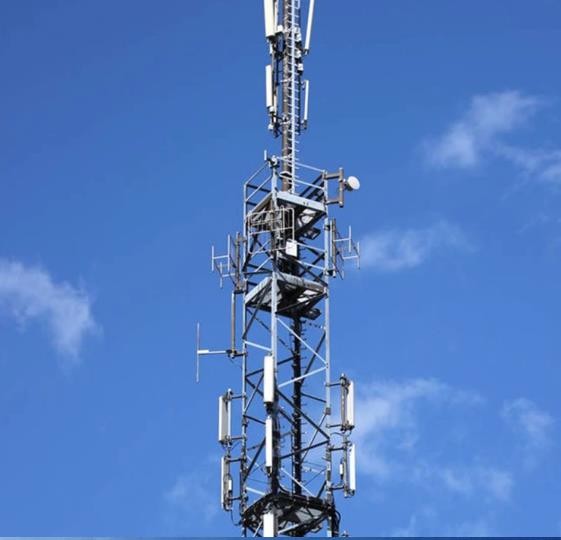

Steel Antenna Poles Towers Monopole Tower For Broadcasting / Cell Phone Signal 2

















































Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and

approved by the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.




Steel Antenna Poles Towers Monopole Tower For Broadcasting / Cell Phone Signal 3
