MV / LV Mobile Transformer Substation Compact Prefabricated Substation

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : According to client's request. 7.5mva 33kv semi-trailer transformer substation 11/0.4kv Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 10 Set/Sets per Year 7.5mva 33kv semi-trailer transformer substation 11/0.4kv
Place of Origin: China Brand Name: DINGLI
Model Number: Mobile substation

Detail Information

Certification: ISO9001/CE Material: Copper
Type: Dry Type Model Number:: CZBT1
Standard: IEC62271 Usage: Electricity Transmission Project
Retated Current On LV Side: 1250A Retated Voltage: Up To 2500kVA
IP55/IP65/IP66: IP55/IP65/IP66 Frequency: 50/60Hz
Insulation:: 75kV
High Light:

portable substation

,

gis ais substation

Product Description

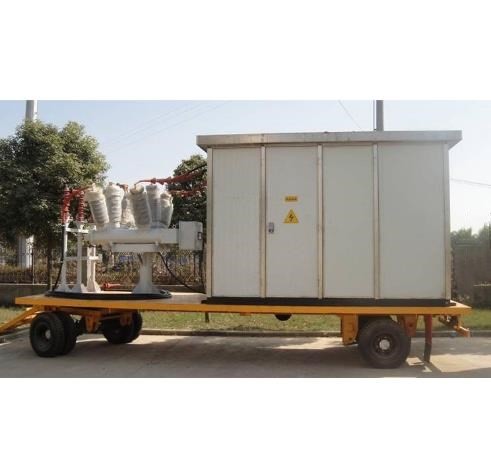

MV / LV Mobile Transformer Substation Compact Prefabricated Substation



MV / LV Mobile Transformer Substation Compact Prefabricated Substation 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

20kV 22kV 24kV MV/LV Compact Prefabricated Substation Mobile Substation



SafePackTM is a prefabricated substation, factory-designed, tested and ready-to-install and is fully compliant with IEC 62271-202 (IEC 61330). Our compact substations are engineered to the highest possible standards for personnel safety and aesthetics, designed to help solve problems of footprint and space limitations experienced within dense urban load centers.



Main features



– Modular construction of enclosure provides high degree of flexibility to meet specific site requirements
– Fully compartmentalized construction for MV switchgear, transformer and LV switchgear
– Specially designed ventilation system to suit local climatic conditions
– Appealing aesthetics
– Safety ensured for operator, public and environment
– Low life-cycle cost



Applicable Standards



IEC 62271-202 High-Voltage/Low-Voltage Prefabricated Substations



Internal CSS Equipment:

IEC 62271-200 Metal Enclosed switchgear
IEC 60076 Power transformers
IEC 61439-1 Low voltage switchgear



Technical data



Rated Voltage 12/17.5/24kV 36kV



Standard applicable

IEC 62271 – 202 (IEC 61330) IEC 62271 – 202 (IEC 61330)
Normal ambient temperature 40 ° C 40 ° C
Maximum ambient temperature 50 ° C 50 ° C
Enclosure construction Modular Modular
Ventilation Natural Natural
Temperature class (Std.) K 10 K 10
Degree of protection
MV and LV compartment IP 54 IP 54
Transformer compartment IP 23 IP 23
MV Switchgear
Rated voltage (kV) 12/24kV 36kV
Rated insulation level
Power frequency (kV rms) 28/50 70
Impulse (kV p) 75/125 170
Rated frequency (Hz) 50/60 50/60
Isolator
Rated normal current (A) 630 630
Breaking capacity (A) 630 630
Making capacity (kA) 52.5 / 40 50
Vacuum circuit breaker
Rated normal current (A) 630 630
Breaking capacity (kA) 21/16 20
Making capacity (kA) 52.5 / 40 50
Power Transformer
Rated power (kVA) – oil type 2500 2000
Rated power (kVA) – Dry type 2500 2000
Rated secondary voltage (V) 433 433
Vector group Dyn 11 Dyn 11
Tapping range + 5 in steps of 2.5% + 5 in steps of 2.5%
Type tests
IP Yes Yes
Internal arc Yes Yes
Enclosure class Yes Yes
Impact test Yes Yes
Short circuit test on earthing Yes Yes





Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.

2. We can arrange technicians to install the equipments and train your staff on site.

3. Anytime, we provide considerate technical consultation.

4. Prompt reply for your inquiry and feedback.



Packaging



1.Specific packaging can be made to order.



MV / LV Mobile Transformer Substation Compact Prefabricated Substation 1
