KEMA Certificate Mobile Substation 110kv 50mva For Electricity Transmission Project

Product Description

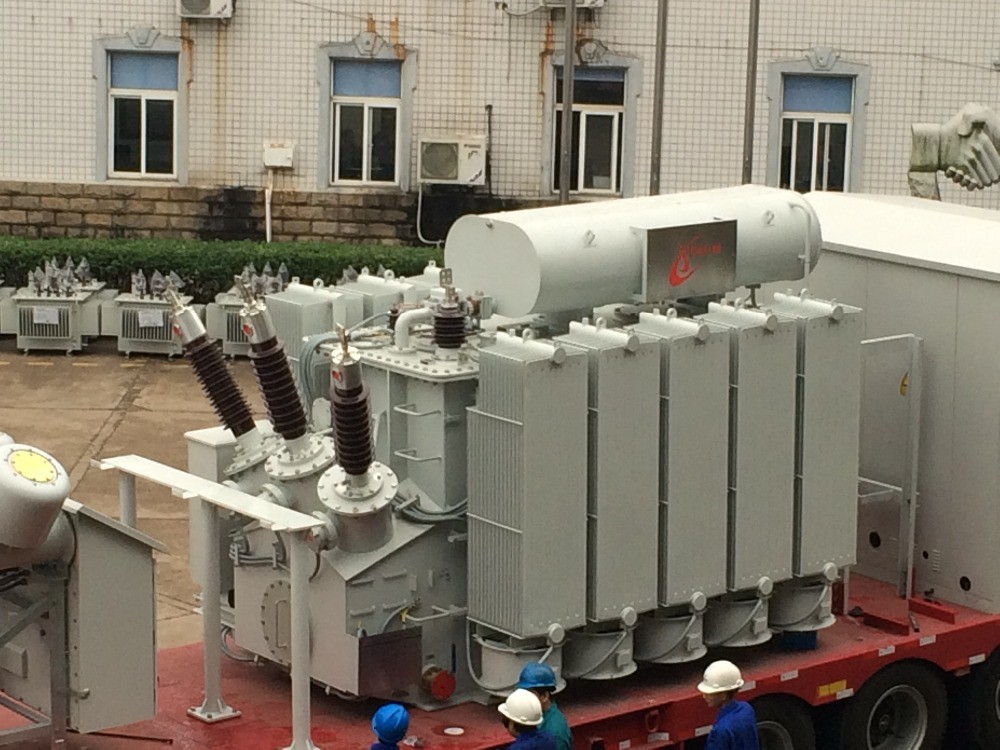

KEMA Certificate Mobile Substation 110kv 50mva For Electricity Transmission Project



Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

7.5mva 33kv semi-trailer transformer substation 11/0.4kv mobile transformer substation



Product Description

The Mobile Substation,supply by us is mainly used as a quick substation to the conventional substation to resume power supply in emergency. It be Used In the high-load season alleviate the shortage of power supply capacity and As a temporary substation put into operation. It can be put into immediate ser vice with just a simple laid out,connecting to the incoming and outgoing cables upon arrival at the site. The mobile substation has the advantages of compact structure,reliable operation,complete functions,highly intelligent,quick site operation,less maintenance,etc, Prefabricated semi-care hanging car mobile substation can be designed according to user requirements, can be configured as twin car or bicycle or car based on user conditions.



Function & features​:



It has all the function of ordinary substation.
(1) It is Include control, protection, lighting protection and step-down and other functions.
(2) It can be assigned to several power users of branches.
It is easy to install and put into operation quickly.

Just connect the cable to put into operation.

It has shock absorption, temporary rod, circuit components soft connection and other shock measures.



Structural composition:

It is divided into HV part, main transformer, LV switchgear room.
High pressure switches use HGIS or open type isolating switch and magnetic pole breaker as the main switch, mounted on a trailer.

LV switchgear room include: Low voltage side switch cabinet, control power supply, DC screen and measuring equipment control protection.



LV inner switchgear features

Use three-layer insulation shell;

Air-conditioned, open on demand;

Shell protection grade up to IP43 substation;

Indoor DC power supply battery of low-voltage switchgear is fully sealed products.



Technical Data:

No	Item		Unit	Parameter
1	Main transformer capacity		MVA	5, 7.5, 10, 15, 20, 25, 31.5, 40, 50
2	Rated voltage of the switch on HV side		kV	33, 35, 66, 110, 132, 145, 220
3	Rated current on HV side		A	630, 1250, 2000
4	Rated short circuit breaking current		kA	25, 31.5, 40
5	Rated voltage of the switch on LV side		kV	6.6, 11, 13.8, 22, 33, 35
6	Rated current on LV side		A	1250, 2000, 2500, 3150
7	Rated short circuit breaking current		kA	25, 31.5, 40
8	Rated frequency		Hz	50/60
Ambient Environment
10	Ambient temperature		℃	-40 ~ +60
11	Solar radiation		W/m2	1000
12	Humidity		%	≤95
13	Height above sea level		m	≤2000
14	Wind Speed		m/s	40
15	Earthquake	Horizontal acceleration	g	General area:0.15g Stricken area:0.3g
		Vertical acceleration	g	General area:0.075g Stricken area:0.15g
