Power Distribution Panel Motor Control Center Underground Distribution Switchgear

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS,CCC,KEMA,TUV Model Number: HXGN15

Detail Information

Rated Voltage: 12kV Standard: IEC 60439-1/GB 7251
Application: Electric Power Transmission Product Name: Switchgear Cabinet For Industries
High Light:

power distribution switchgear

,

gis gas insulated switchgear

Product Description

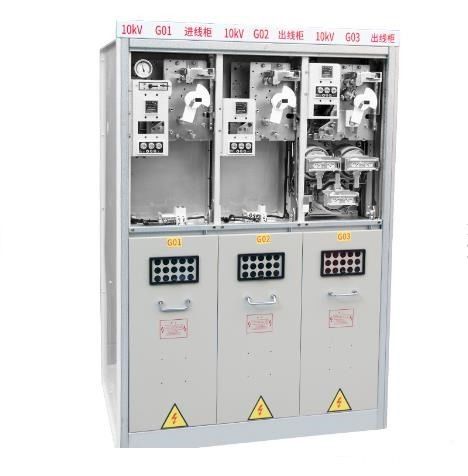

Power Distribution Panel Motor Control Center Underground Distribution Switchgear

Power Distribution Panel Motor Control Center Underground Distribution Switchgear 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

SF6 Insulated Switchgear Switchboard/ Power Distribution Panel/ Motor Control Center

Product Introduction

SCR (M) -12 series ring network cabinet is an expandable SF6 insulated switchgear. It can provide 10 different configurations, suitable for most applications in 12/24/36 kV distribution networks, and they represent a complete solution for 12/24/36 kV secondary distribution networks. It has the same user interface as ABB. All of its HV live parts are housed in a gas-tight gas storage tank made of 3mm stainless steel. The entire switch assembly is SF6 insulated from any external influences, thus ensuring great service reliability and maintenance-free. SCR (M) -12 series ring mainframe can choose switch fuse combination or circuit breaker with relay to protect the transformer. RMR can provide an integrated remote control and monitoring unit.



1.Structure



1.



pressure gauge

11. Fuse blow indicator
2. Module nameplate 12. Isolator / ground switch position indicator
3. Short circuit indicator 13. Capacitor voltage indication
4. Capacitor voltage indication Cable compartment cover
5. Load disconnect / ground switch position indicator 14. Cable compartment cover standard
6. Button close / open operation 15. Cable compartment cover with inspection window
7. Spring indicator 16. Support rod (removable)
8. Self-powered protective relay 17. Lifting ear
9. Vacuum circuit breaker position 18. Operating handle

10.Switchgear nameplate



2.Technology Parameter

Item Unit C F V/630A V/1250A
Load switch Combination appliances Vacuum circuit breaker Isolation / grounding switch Vacuum circuit breaker Isolation / grounding switch
Rated voltage KV 12 12 12 12 12 12
Rated frequency HZ 50 50 50 50 50 50
Power frequency withstand voltage (phase-to-phase, fracture) KV 42/48 42/48 42/48 42/48 42/48 42/48
Lightning impulse withstand voltage KV 75/85 75/85 75/85 75/85 75/85 75/85
Rated current A 630   630 630 1250 1250
Rated closed-loop breaking current A 630
Rated cable breaking current (peak) A 135/135
Rated short-circuit closing current (peak) A 63 80 63 63 80 80
Rated peak withstand current KA 63   63 63 80 80
Rated short-time withstand current KA/4S 25   25 25 31.5 31.5
Rated short-circuit breaking current KA 25   25 25 31.5 31.5
Rated transfer current A   1750
Maximum current with fuse A   125
Loop resistance n ≤300 ≤600
Mechanical life Times 5000 5000 10000 5000/3000 10000 5000/3000

3.Outer housing








Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.

2. We can arrange technicians to install the equipments and train your staff on site.

3. Anytime, we provide considerate technical consultation.

4. Prompt reply for your inquiry and feedback.



Packaging



1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



Power Distribution Panel Motor Control Center Underground Distribution Switchgear 1



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Power Distribution Panel Motor Control Center Underground Distribution Switchgear 2



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Power Distribution Panel Motor Control Center Underground Distribution Switchgear 3



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Power Distribution Panel Motor Control Center Underground Distribution Switchgear 4



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Power Distribution Panel Motor Control Center Underground Distribution Switchgear 5



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.



Package

Set-wisely packing or member-wisely packing as per client's requirements.
