12kv Vacuum Circuit Breaker High Voltage Switchgear Substation Transformer
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | sea worthy : professional packing, plastic bag, carton, pallets if clients needed. | Delivery Time : | Depends on the quality of client |
| Payment Terms : | 30% advanced payment , 70% balance payment before shipment. | Supply Ability : | 100 Set/Sets per Month 40.5kv Dead Tank High Voltage Circuit Breaker Price5 |
| Place of Origin: | China | Brand Name: | DINGLI |
|---|---|---|---|
| Certification: | CCC, CE, CQC, RoHS | Model Number: | LW24-40.5 |
|
Detail Information |
|||
| Type:: | High Voltage | Product Name:: | 40.5kv Dead Tank High Voltage Circuit Breaker Price |
|---|---|---|---|
| Rated Voltage: 132kv: | 40.5kv | Rated Current:: | 1200A |
| Rated Frequency:: | 50/60 Hz | Breaking Capacity:: | 31.5KA |
| Material:: | Copper | Mechanical Life:: | 20000 Times |
| High Light: | high voltage circuit breaker,vacuum circuit breaker |
||
Product Description

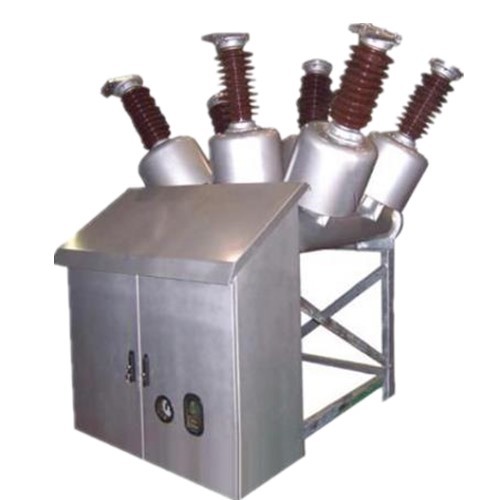

40.5kv Substation Circuit Breaker Dead Tank High Voltage Circuit Breaker
Quick Detail: 40.5kv Dead Tank High Voltage Circuit Breaker Price
Technical Datasheet
| The Specifications of LW24-72.5 | |||||
| No. | Item | Unit | Data | ||
| 1 | Rated Voltage | KV | 40.5 | ||
| 2 | Rated Current | A | 3150 | ||
| 3 | Rated Frequency | HZ | 50/60 | ||
| 4 | Rated Short-circuit Withstand Current(4s) | KA | 40 | ||
| 5 | Rated Short-circuit Duration | S | 4 | ||
| 6 | Rated Short-circuit Breaking Current | KA | 40 | ||
| 7 | Rated Short-circuit Making Current(peak) | KA | 100 | ||
| 8 | Rated Break Withstand Current(peak) | KA | 100 | ||
| 9 | Short-line Fault Breaking Current | KA | le*90% le*75% | ||
| 10 | Rated Out-of-phase Breaking Current | KA | le*25% | ||
| 11 | Rated Charging Line Breaking Current | A | 40 | ||
| 12 | Rated Insulating Level | 1 min P.F withstand voltage | Across open contacts | KV | 120 |
| Phase to phase | 95 | ||||
| Phase to earth | 95 | ||||
| Lightening impulse withstand voltage(peak) | Across open contacts | 218 | |||
| Phase to phase | 185 | ||||
| Phase to earth | 185 | ||||
| 13 | First Pole to Clear Factor | - | 1.5 | ||
| 14 | Rated Operate Sequence | - | O-0.3S-CO-180S-CO; CO-15S-CO | ||
| 15 | Full Breaking | MS | ≤60 | ||
| 16 | SF6 Gas Rated Pressure(20°C) | Mpa | 0.5 | ||
| 17 | Alarming Pressure | 0.5 | |||
| 18 | Locking Pressure | 0.5 | |||
| 19 | Terminal Static Pulling Power | Level lengthways | N | 1250 | |
| Level transverse | 750 | ||||
| Vertical | 1000 | ||||
| 20 | Fixed Opening Time | Rated Voltage | MS | 30±3 | |
| 21 | Closing Time | MS | 75±8 | ||
| 22 | Closing&Opening Time | Primary opening time | MS | 30 | |
| OC Time | 280~300 | ||||
| Closing Time | 30 | ||||
| CO Time | ≤60 | ||||
| Second opening time | 35 | ||||
| 23 | Control Circuit Voltage | V | AC/DC,110/220 | ||
| 24 | CO Loop Voltage | V | AC/DC,110/220 | ||
| 25 | CO Loop Current | A | 2 | ||
| 26 | Motor Voltage | V | AC/DC,110/220 | ||
| 27 | Motor | W | 600 | ||
| 28 | Heater Voltage | V | AC220 | ||
| 29 | Mechanical Duration | Times | 10,000 | ||
| 30 | Radio Interrupting Voltage | uV | ≤500 | ||
| 31 | Electrical Life of Rated Short-circuit Breaking Current | Times | 20 | ||
| 32 | Protection Grade of Enclosure | - | IP4X | ||
| 33 | Creepage Distance | MM | 1260 | ||
| 34 | Standard | - | IEC |
||
