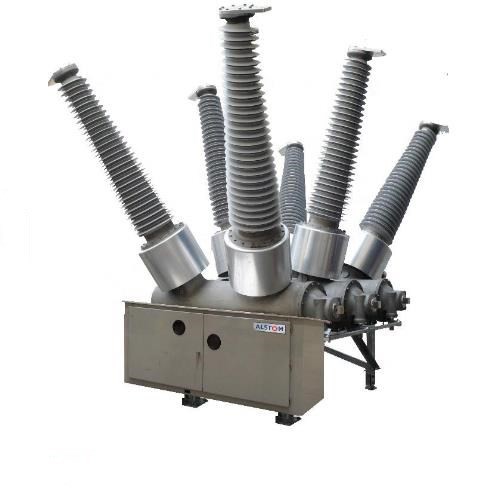

4000A Power Substation Circuit Breaker Closed End Structure IEC 60898 Standard

Contact Now

4000A Power Substation Circuit Breaker Closed End Structure IEC 60898 Standard

Name: 4000A Power Substation Circuit Breaker Closed End Structure IEC 60898 Standard
Brand: DINGLI
SKU: LW24
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (164 reviews)

Minimum Order Quantity :	Negotiation	Price :	Negotiation
Packaging Details :	sea worthy : professional packing, plastic bag, carton, pallets if clients needed.	Delivery Time :	Depends on the quality of client
Payment Terms :	30% advanced payment , 70% balance payment before shipment.	Supply Ability :	100 Set/Sets per Month 40.5kv Dead Tank High Voltage Circuit Breaker Price5

Place of Origin:	China	Brand Name:	DINGLI
Certification:	CCC, CE, CQC, RoHS	Model Number:	LW24

Detail Information
Type:	High Voltage	Product Name:	Power Substation Sf6 High Voltage Circuit Breakers 275kv
Rated Voltage:	275KV	Rated Current:	4000A
Rated Frequency:	50/60 Hz	Breaking Capacity:	40KA
Material:	Copper	Certificate:	ISO9001
Standard:	IEC 60898	Closing Time:	<0.06s
Opening Time:	<0.03s
High Light:	high voltage circuit breaker , vacuum circuit breaker

Product Description

4000A Power Substation Circuit Breaker Closed End Structure IEC 60898 Standard

Quick Detail: China EPC dead tank SF6 145kv circuit breaker price

1. Brief Introduction

LW24-SF6

Power substation sf6 high voltage circuit breakers 275kv.

LW24- Sf6 gas circuit breakers are new type products, which developed by our company. Compared with foreign similar products, the product can meet the needs of the electric power market. Our company can meet with different needs of users, not only design the layout form of flexible and varied, but also the whole substation (including interval bearing busbar, tower, etc.) and the secondary equipment of general contracting. LW24 open combination electric appliance, advanced structure, good performance, technical parameters can completely satisfy the requirements of GB and IEC standards. The product has both closed-end structure tight combination Gather together, cover an area of an area small features, and has the advantages of open electric price is cheap, convenient maintenance, compared to the conventional power station to reduce its covers an area of about 60%, especially for city network , substation mountainous area , industrial and mining enterprises to choose.

Technical Data:

ITEM	UNIT	LW24-40.5	LW24-72.5	LW24-126	LW24-145	LW24-252
RATED VOLTAGE	KV	40.5	72.5	126	145	252/275
RATED CURRENT	A	3150	3150	3150	3150	4000
RATED FREQUENCY	HZ	50/60	50/60	50/60	50/60	50/60
RATED SHORT CB CURRENT	KA	40	40	40	31.5	50
RATED SHORT TIME WITHSTAND CURRENT AND DURATION	KA	40(4S)	40(4S)	40(4S)	31.5(3S)	50(3S)
RATED PEAK WITHSTAND CURRENT	KA	100	100	100	80	125
RATED MAKING CURRENT(PEAK)	KA	100	100	100	80	125
RATED SHORT TIME POWER FREQUENCY WITHSTAND VOLTAGE
BETWEEN BREAKS	KV	95+23.4	160+42	315	315	460+145
TO EARTH	KV	95	160	275	275	460
RATED LIGHTNING IMPULSE WITHSTAND VOLTAGE
BETWEEN BREAKS	KV	185+33	350+59	650+100	650+100	1050+200
TO EARTH	KV	185	350	650	650	1050
CREEPAGE DISTANCE	MM/KV	31	31	25,31	25,31	25,31
BREAKING TIME	MS	≤60	≤60	≤60	≤60	≤60
OPENING TIME	MS	≤30	≤30	≤30	≤30	≤30
CLOSING TIME	MS	≤100	≤100	≤150	≤150	≤150
MECHNICAL ENDURANCE	TIMES	10000	10000	10000	10000	10000
RATED OPERATING SEQUENCE	O-0.3S-CO-180S-CO or	O-0.3S-CO-180S-CO or	O-0.3S-CO-180S-CO or	O-0.3S-CO-180S-CO or	O-0.3S-CO-180S-CO or	O-0.3S-CO-180S-CO or
RATED OPERATING SEQUENCE	CO-15S-CO	CO-15S-CO	CO-15S-CO	CO-15S-CO	CO-15S-CO	CO-15S-CO
RATED PRESSURE OF SF6 GAS(at 20°C)	MPA	0.50,0.40	0.50,0.40	0.50,0.40	0.5	0.6
ALARM/LOCK PRESSURE OF SF6 GAS	MPA	0.45/0.40	0.45/0.40	0.45/0.40	0.45/0.40	0.55/0.50
RATED VOLTAGE OF CONTROL CIRCUIT	V	DC220/110	DC220/110	DC220/110	DC220/110	DC220/110
RATED VOLTAGE OF ENERGY-STORE MOTOR CIRCUIT	V	DC220/110	DC220/110	DC220/110	DC220/110	DC220/110
RATED VOLTAGE OF ENERGY-STORE MOTOR CIRCUIT	V	;AC220	;AC220	;AC220	;AC220	;AC220
BREAKING NUMBER OF RATED-SHORT-CIRCUIT BREAKING CURRENT	TIMES	20	20	20	20	20
