Powerline Inspection Drone Uav Drone Unmanned Aerial Vehicle Remote Controlled

Product Description

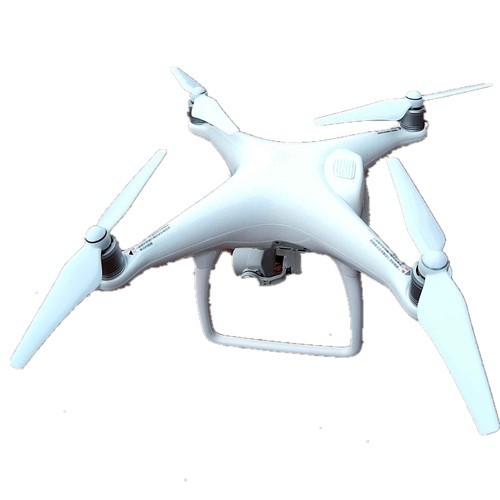

Powerline Inspection Drone Uav Drone Unmanned Aerial Vehicle Remote Controlled



Quick Detail:Power line inspection patrol drone UAV drone unmanned aerial vehicle Remote controlled aircraft



Application Background

The uav for electric power inspection is not restricted by landform and topography, and is especially suitable for inspection work in steep mountainous areas and multi-river landform. Airborne high-definition cameras on the transmission line, the real-time online fault locating and monitoring, ground controllers can be found out in time according to the ground station of return live line defect and major concerns, tower patrol to greatly improve the efficiency of saving a large amount of manpower and material resources, improve the safety coefficient of inspection personnel work.

In the construction process of many power lines, it is often restricted by terrain and environmental characteristics. For example, the wiring process must cross some rivers, lakes, industrial and commercial areas, residential areas, roads, railways, or hills, canyons, forestry. Seedlings and so on. These factors have led to a geometric increase in construction costs, construction schedules have to be delayed or even interrupted, and construction quality cannot be guaranteed. Power lined drones can effectively protect crops and seedlings from deforestation. Residential buildings do not need to be demolished and demolished. Construction workers no longer travel long distances and overcome obstacles, saving a large number of economic compensation due to them, and greatly speeding up construction progress. To reduce wire surface damage. The 8-wing power lined drone technology has reached a stage of full maturity. It has achieved thousands of aerial wiring operations and has rich experience in aerial wiring.

Data Deepening Application -- automatic identification of fine defects

The high-definition image data production and hidden danger automatic identification technology, such as visible light and infrared, adopts the multi rotor UAV equipped with visible light camera and infrared camera to take multi angle and fine aerial photos of the line tower and channel, automatically identify the defects such as tower insulator burst, conductor broken strand, grading ring and shock hammer falling off, with the accuracy up to pin level.

Product Characterastic

• Planned automatic cruise
• Duration 4 hours
• Cruise time: 100 km/h
• Payload: 3-7 kg
• Takeoff and landing method: vertical takeoff and landing, taxiing takeoff and landing
• Camera: single / dual HD visible light
• Accuracy: base station + airborne RTK, post differential mode

Main models

• Elf IV PRO2.0
• Elf IV RTK
• Royal 2PRO
• M210
• M600PRO

Line Corridor Inspection and Tilt Photography



• Profile analysis: analysis of the intersection of the traverse vertically with the ground
• Proximity analysis: analysis of the intersection of the traverse with the surrounding objects





Line corridor inspection report

Distance measurement and positioning of corridor features
and traverse (error <50cm)

Refined inspection of Power line

Lidar inspection and 3D modeling

VTOL fixed-wing UAV                                  Lidar acquisition device

Laser point cloud                                  Lidar inspection report

Laser-spectrum integrated drone           Laser-spectrum integrated acquisition device

Spectral image and laser point cloud registration                          Distance between the traverse and the ground

UAV inspection data production—refined defect reporting

Visible light defect mark



Infrared defect mark                     Defect report

Data Deepening Application——Digital Transmission Channel Platform

• 3D visualization integrated display; line operation status prediction under different working conditions;
• Accurate measurement of channel features; tree growth prediction.

Data Deepening Application-High Precision Application of Laser Point Cloud

• Strengthening management of important crossover points
• Develop risk prediction functions for wind conditions such as wind deflection, high temperature, and icing



                                                   Absolute positioning accuracy is better than 50cm, distance accuracy is better than 5cm



Data deepening application-precise location technology

3D data of line channel

Data Deepening Application -- automatic identification of fine defects

The high-definition image data production and hidden danger automatic identification technology, such as visible light and infrared, adopts the multi rotor UAV equipped with visible light camera and infrared camera to take multi angle and fine aerial photos of the line tower and channel, automatically identify the defects such as tower insulator burst, conductor broken strand, grading ring and shock hammer falling off, with the accuracy up to pin level.

Autonomous inspection platform for drones

The drone takes 30 hours, which is 4.5 times more efficient than traditional human patrols for 136 hours. At the same time, it strengthens basic management and on-site operation risk management and control, and improves the lean management level of drone patrols. The application of the human-machine independent inspection platform makes the drone inspection more autonomous and intelligent.



Autonomous inspection platform for drones

The company possesses industrial multi-rotor, fixed-wing aircraft R & D, integrated development, flight services, data production and supporting software system development capabilities, and provides full-chain solutions such as UAV software and hardware platform development, inspection services, data production, and intelligent system development.

Also total solution for electricity maintenance

• 1. Transmission line condition monitoring and evaluation system.
• 2. Inspection robot on the earthing wire/ Conductor
• 3. UAV inspection system for transmission line
