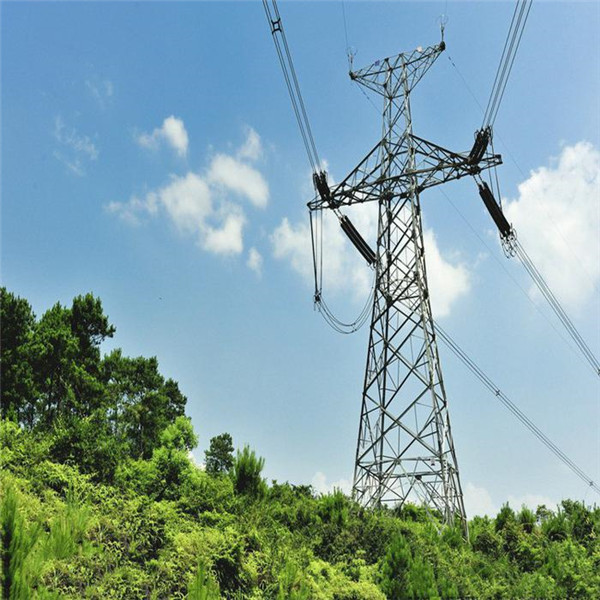

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: IEC

Detail Information

Design Software: PLS And MS Tower, SAP2000,etc. Standard: ASTM A123/ A123M-15 AS/ NZS 4680
Surface Coating: Hot Dip Galvanization Or Painting Voltage Grade: 10-750KV
Galvanization: Hot Dip Galvanization Painting: According To Clients' Request
High Light:

steel lattice tower

,

power transmission tower

Product Description

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower

Quick Detail:

Electrical power 230kv towers overhead 400 kv transmission line tower steel electric pole 30m

PRODUCT DESCRIPTION

Product Name
Electrical power 230kv towers overhead 400 kv transmission line tower steel electric pole 30m
Material
Rolled steel
Color
As per customer request
Standard
ISO9001:2008
Material
Steel Q235B/Q345B/Q420
Welding Standard
AWSD1.1
Galvanization Standard
ASTM123
Usage
Power Transmission and Distribution

Specifications:
The product features:

As the traditional transmission line equipment, Angle steel tower has the field widely used, the characteristics of the design code, the craft is mature, at different distances, different voltage level are showing the advantages and general applicability

The design of Power Transmission line tower depends on, type of conductor and Earth-wire, wind zone, deviation angle and material specification. These towers are galvanized to protect the steel from corrosion. The galvanizing coating thickness depends on the weather conditions at the location of tower.

Steel Grades
Angle Steel: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q2230B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994

B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard

Voltage: Power transmission equipment/electric transmission line Angle Iron tower grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV

Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.

Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and approved by the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.

Shearing A:Shearing and cutting shall be performed carefully and all portions of the work which will be exposed to view after completion shall be finished neatly. Manually guided cutting torches shall not be used.
B:All material over 13 (or 12) mm thick shall be cold sawn or machine flame cut.
C:Cropping or shearing shall be allowed for material thickness of 13 mm or less.
Flame cutting of high yield steel shall be preceded by a slight preheat operation by passing the cutting flame over the part to be cut.
All flame-cut edges shall be ground clean.
Bending Our company owaned the bending machince. Frether more, we can manufacture the towers with hot bending or cold bending according to client's requirements.
Welding No welding shall be done unless prior approval has been obtained from the Engineer.
Welding shall not be allowed at tower attachment points for conductor, shield wire, insulators or associated assemblies or brackets
Sub-punching All holes in structural steel less than 10 mm thickness may be punched to full size unless otherwise noted on the approved Drawings. Holes shown on the Drawings as drilled holes and all holes in structural steel 10 mm or more in thickness and tension members of cross-arms shall be drilled or sub-punched and reamed.

All holes shall be clean cut and without torn or ragged edges. All burrs resulting from reaming or drilling shall be removed. All holes shall be cylindrical and perpendicular to the member.

Where necessary to avoid distortion of the holes, holes close to the points of bends shall be made after bending.
Punching For punching to full size, the diameter of the punch shall be 1.0 mm larger than the nominal diameter of the bolt, and the diameter of the die shall not be more than 1.5mm larger than the diameter of the punch. For sub-punching, the diameter of the punch shall be 4 mm smaller than the nominal diameter of the bolt, and the diameter of the die shall be not more than 2 mm larger than the diameter of the punch. Sub-punching for reamed work shall be such that after reaming no punch surface shall appear in the periphery of the hole
Hole Size Where holes are reamed or drilled, the diameter of the finished hole shall be not greater than the nominal diameter of the bolt plus 1.0 mm.
Galvanizing All material shall be hot-dip galvanized after fabrication in accordance with the latest revision of GB/T 13912-2002 or ASTM Specification A 123.
Material that has been rejected because of bare spots or other coating defects shall either be stripped and re-galvanized, or the uncoated areas shall be recoated by an approved method.
All plates and shapes which have been warped by the galvanizing process shall be straightened by being re-rolled or pressed. The material shall not be hammered or otherwise straightened in a manner that will injure the protective coating.
Approval shall be secured from the Engineer if galvanizing is done outside of the Contractor's plant.
All galvanized steel work shall be protected against white storage stain by using an approved solution treatment immediately following galvanizing.
Packing Our product will be packed into several bundles whose weight is 2~3 MT or according to your requirement.



Hot dip

galvanizing

Standard Steel thickness/mm

Mean coating

thickness/μm

Metallic

Element

Content

Pole shafts,cross

arms&bolted on

accessories

ASTM A123/

A123M-15 AS/

NZS 4680

>6 85 Mn 0.25%-0.40%
<3-6 70
1.5-3 55 Cu <0.15%
<1.5 55
Bolts,nuts&washers GB/T 5267.3-2008 _____ ≥ 54 P <0.025%
(ISO 10684-2004)
Foundation bolts

ASTM A153/

A153M-09

_____ ≥ 54 S <0.03%



Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project delivers as specified. What’s more, he/she communicates with you every step of the way.



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

To improve the products’ quality and provide superior service for our customers, DINGLI has started using new Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA, which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization, which can meet ASTM standard, EN standard, GB standard under the computer control system.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 0



3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.



ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 1

4. Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 2



5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center

Cambodia

Cambodia Phnom Penh Factory

Spain

Madrid (Spain) Sales and Service Center

Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse

Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse

Lima, Peru

Lima (Peru) Sales and Service Center

Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse

Santiago, Chile

Santiago (Chile) Sales and Service Center

Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center





ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 3

6. International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be completed in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing better to avoid the missing parts problem

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 4

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 5

7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 6



ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 7



8. Customers and Partners of Dingli

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 8

ASTM123 230kv Lattice Steel Towers Overhead 400 Kv Transmission Line Tower 9
