33KV 120KN U120BP Toughened Electric Glass Insulators

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Model Number: Insulator

Detail Information

Certification: ISO9001/ROHS Material: Glass, Glass
Type: Insulator Model Number:: U120B/146
Usage: Insulation Protection OEM/ODM: Available
High Light:

Toughened Electric Glass Insulators

,

33KV Electric Glass Insulators

,

120KN Electric Glass Insulators

Product Description

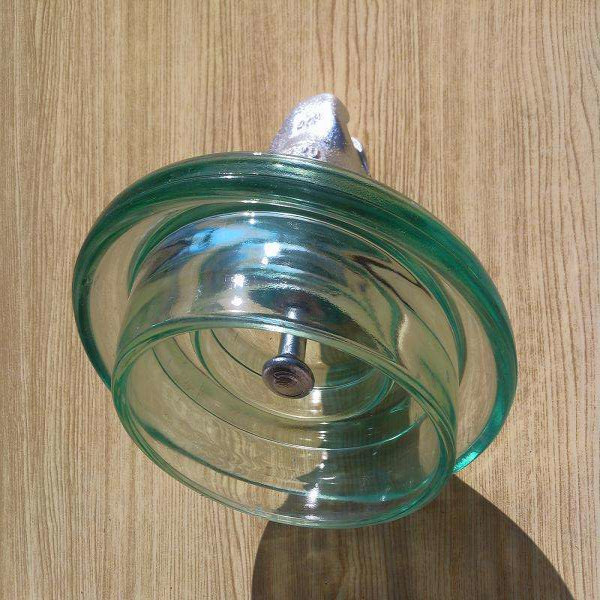

33KV 120KN U120BP Toughened electrical Disc Suspension High Voltage Glass Insulator



Quick Detail: 33KV 120KN U120BP Toughened electrical Disc Suspension High Voltage Glass Insulator



Product Range:





Technical Requirement
1
The contact surface of the steel leg and adhesive should be coated with a buffering agent layer prior to binding
2
Creepage distance:450mm
3
Others should comply with the provisions of IEC60383 , in addition to the provisions of drawing
4
Electrical performance:
1)
Lightnig impact withstand voltage (5 pieces):450KV
2)
Wet power-frequency withstand voltage (5 pieces):180KV
3)
Puncture withstand voltage:130KV
4)
Impact breakdown voltage in air:P.U=105KV
5)
Radio interference under 10KV:50uv
6)
Visible corona voltage:Steel leg:18KV Iron cap:22KV
7)
Electromechanical failing load test SFL=120KN X-3∝ ∧SFL



ITEM
DESCRIPTION
QTY
MATERIAL
1
Cap
1
Malleble cast iron
2
Cotter pin
1
Stainless steel-IEC120 size 16
3
Gasket
1
Asphalt felt
4
Adhesive
2
Portland cement
5
Steel leg
1
Forged steel coating
6
Glass piece
1
Toughened glass
7
Cushion
1
Low density polythene







33KV 120KN U120BP Toughened Electric Glass Insulators 0



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



33KV 120KN U120BP Toughened Electric Glass Insulators 1





1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

33KV 120KN U120BP Toughened Electric Glass Insulators 2



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.





2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



33KV 120KN U120BP Toughened Electric Glass Insulators 3



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.



Package

Set-wisely packing or member-wisely packing as per client's requirements.







5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center





33KV 120KN U120BP Toughened Electric Glass Insulators 4





7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.





8. Customers and Partners of Dingli

33KV 120KN U120BP Toughened Electric Glass Insulators 5

33KV 120KN U120BP Toughened Electric Glass Insulators 6
