Q355 ASTM A572 Antenna Monopole Communication Tower

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: DINGLI

Detail Information

Material: ASTM A36,ASTM A572 GR65, GR50, Etc. Type: Straight Pole ,Tensile Pole ,Turn Pole
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Galvanization: Hot Dip Galvanization Life Time: More Than 30 Years
Height: 5-80m Application: Mobile Communication Tower
High Light:

Antenna Monopole Communication Tower

,

ASTM A572 Monopole Communication Tower

,

Q355 Monopole Communication Tower

Product Description



Product Name:Single pipe tower antenna monopole communication tower



Product Application

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other

steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave,

wireless network signal transmission and transmission.



Specifications of galvanized telescopic antenna mast:

Single pipe tower antenna monopole communication tower
Brand DINGLI
Material Q355/Q345/Q235/Q420 steel
Surface treatment Hot dip galvanized/painting
Height 1-80m, also can customized as buyer’s requirements
Wind speed 30-50m/s, also can customized as buyer’s requirements
Payload 500kg, also can customized as buyer’s requirements
Connection type Flange
Service life More than 30 years
Application Park, uptown, playground, street, etc
Standard GB
Certification ISO9001
Delivery time Within 20 days or depend on the quantity of pole
OEM OK
Welding Standard Standard Title

Pole shafts&multi-sided tubular

Cross arms&all accessories

AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Welding wire AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Hot dip galvanizing Standard Steel thickness/mm Mean coating thickness/μm Metallic element Content
Pole shafts,cross arms&bolted on accessories ASTM A123/A123M-15 AS/NZS 4680 >6 85

Mn



0.25%-0.40%



<3-6 70
1.5-3 55

Cu



<0.15%



<1.5 55
Bolts,nuts&washers

GB/T 5267.3-2008

(ISO 10684-2004)

_____ ≥ 54 P

<0.025%



Foundation bolts ASTM A153/A153M-09 _____ ≥ 54

S



<0.03%



Place of Origin:  Henan China (Mainland)
Brand name: DINGLI
Color: User-defined
Certificate: ISO9001:2008
Surface Treatment: Hot Dip Galvanized
Service life: 30 years
Material: Steel
Spare Parts: Parts for connection or installation
Height: 6-50m
Packaging details: Standard seaworthy package(wooden boxes,cotton ,steel strip and other package)or as buyers' requirement



Specifications:

The technical parameters meet the following standard:
Design wind speed: 30M/S (varies by regions)
Icing depth: 5mm-7mm: (varies by regions)
Aseismatic intensity: 8°
Preference temperature: -35℃~45℃
Vertical missing: <1/1000
Ground resistance: ≤4Ω

Preservative treatment: the steel member of the tower is treated with hot dip galvanized anti-corrosion

technology, which ensures the tower doesn’t get rusted within 35 years.
Main functions of the communication tower: to support signal transmitting antenna.
Material origin: Baosteel/Shougang Group/Handan Steel/Tangshan Iron & Steel, etc.

Hot dip galvanizing Standard Steel thickness/mm

Mean coating

thickness/μm

Metallic element Content

Pole shafts,cross

arms&bolted on

accessories

ASTM A123/

A123M-15 AS/

NZS 4680

>6 85 Mn 0.25%-0.40%
<3-6 70
1.5-3 55 Cu <0.15%
<1.5 55
Bolts,nuts&washers GB/T 5267.3-2008 _____ ≥ 54 P <0.025%
(ISO 10684-2004)
Foundation bolts

ASTM A153/

A153M-09

_____ ≥ 54 S <0.03%



Features of galvanized telescopic antenna mast:

1, Wide application

2, Standardized design

3, Matured technology

4, Good quality

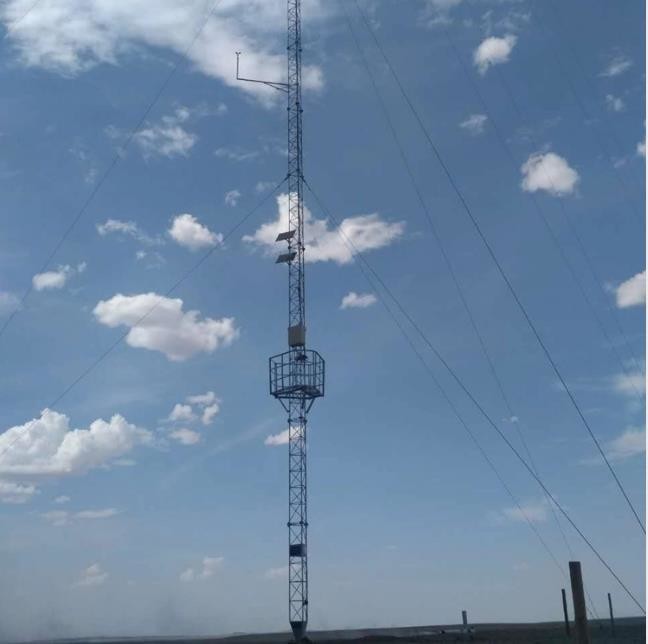

Q355 ASTM A572 Antenna Monopole Communication Tower 0

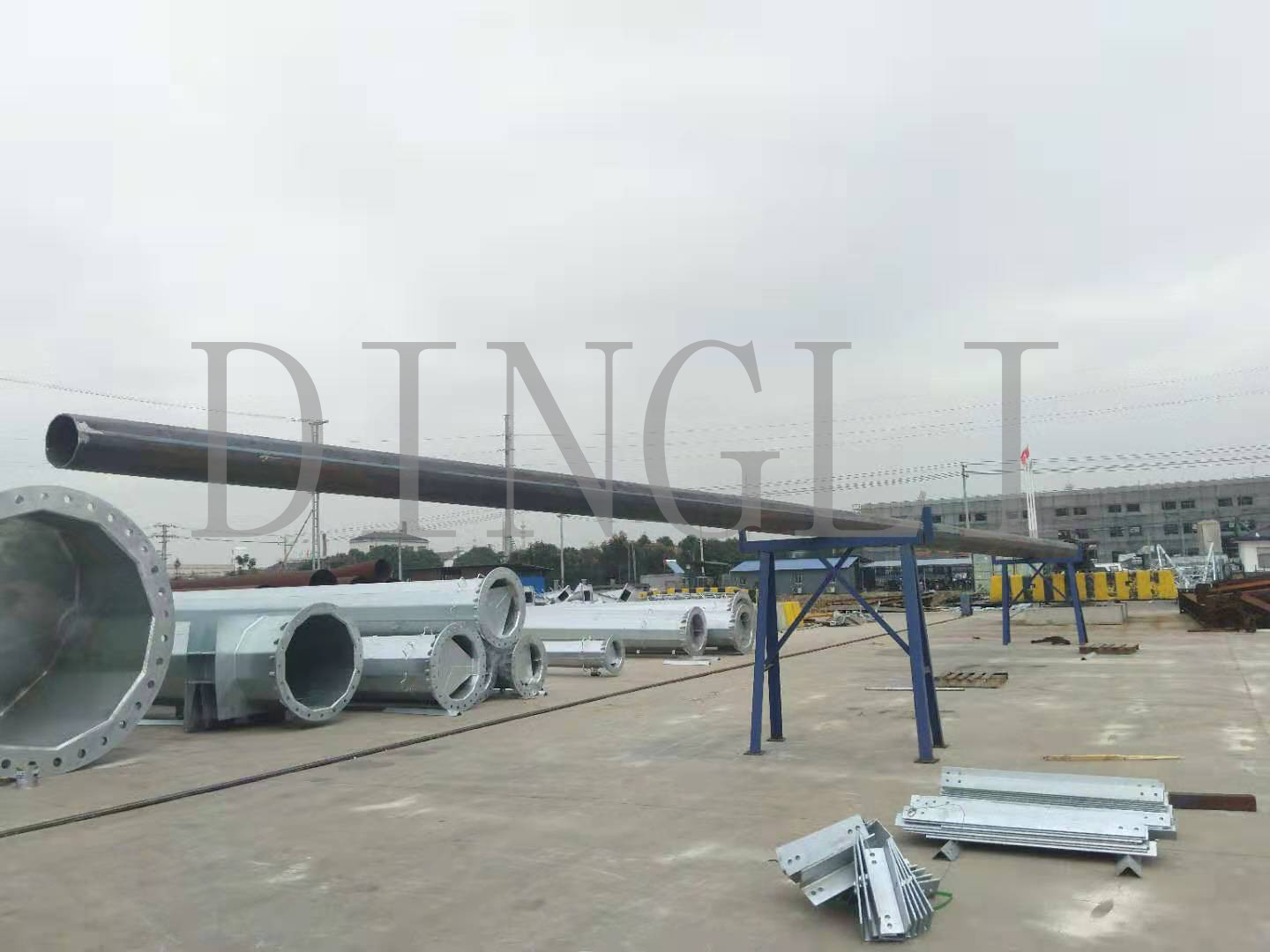

Q355 ASTM A572 Antenna Monopole Communication Tower 1

Detials of Telecommunication Antennas galvanized steel structure

Q355 ASTM A572 Antenna Monopole Communication Tower 2

Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure

our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

Experienced senior engineers and technical staff keeping on learning can help perform design accurately and

timely and ensure quality, reliability and innovation of products. With the help of the latest advanced design software

of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes meeting complex landform

and environment, so as to meet various needs of customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company

be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis

of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other

CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid

the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project

delivers as specified. What’s more, he/she communicates with you every step of the way.

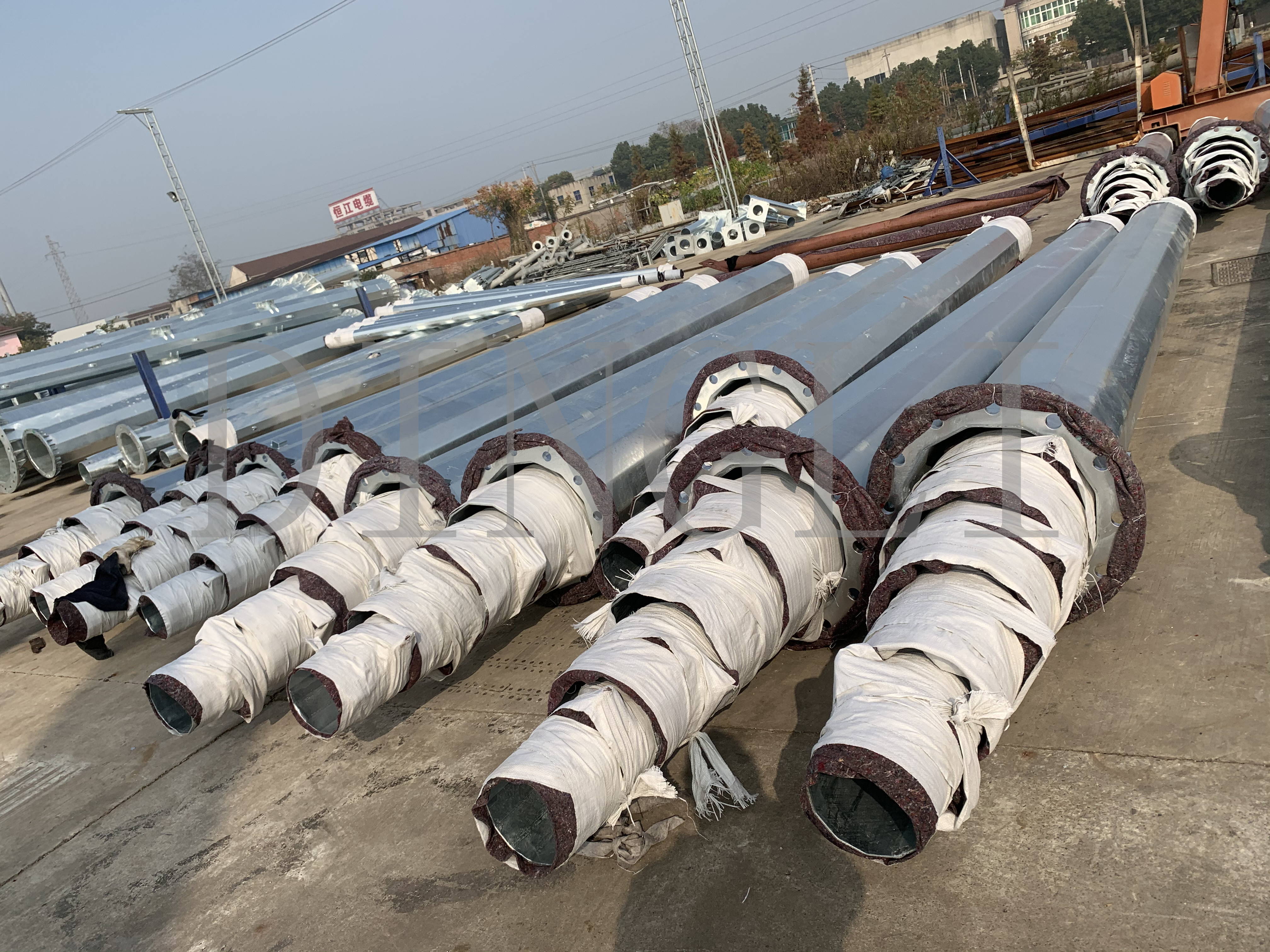

Package

A. Profiles packing methods:

Profiles will be packed by drums. Each drum shall not exceed 2 tons. The profiles below length of 5.8 meters at least tied 4 times, above length of 5.8 meters at least tied 6 times, to ensure them are not scattered bundle.

Each drum could be adjusted by customers when packing. And there is a plastic filler piece between every two profiles to avoid being worn.

B. Steel Plate packing methods:

The steel plate ( including warning signs and number plate) will be packed by iron boxes, each box shouldn’t exceed 2 tons.

There are beams under the box for forklift loading. And each box has lifting holes around the foursquare easy for lift loading.

C. Bolts packing methods:

Each type of bolts ( including nuts, washers, etc.) will be individually wrapped in woven bags . Each woven bag should not exceed 30KG, then packed in metal bucket. Each bucket should not exceed 1.5 tons.

D. Identification

Correspondingly, each product has detailed identification from piece to packing box.

E. New packing solution

We also offer a better protect packing solution, named railway frame loading solution.

Techniques:

The products will be fixed as one unit in the container then mounted on the frame, and there are wheels under the frames. Installing rails in the container, put the frame with products into the container, then fix it.

In this case, we would additionally charge 1500USD/40GP for the cost price of welding frame and rails in the factory.

Remarks: Dingli has applied patent for this packing method in 20th OCT, 2016.Q355 ASTM A572 Antenna Monopole Communication Tower 3
