Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel

Detail Information

Model Number: 3 Legs Tube Tower Material: Tube Steel ASTM A36 A572 Gr50/S275JR S275JR.
Available Height: From 9-40M Or According To Client's Requirement Surface Coating: Hot Dip Galvanization Or Painting ASTM A123/ ISO 1461
Wind Speed: 0-300KM/H Galvanization: Hot Dip Galvanization
Power: 10 KV ~550KV Type: Telecommunication Tower
Lifetime:: More Than 20 Years Product Name:: Telecommunication Communication Steel Monopole Tower
Nuts & Bolts:: Grade 8.8/6.8/4.8 Shape: Polygonal Or Conical
Welding Standard:: AWS(American Welding Society)D 1.1 Standard: GB / ANSI / TIA-222-G
High Light:

Steel Lattice Telecommunication Tower

,

75 Ft Telecommunication Tower

,

75 Ft lattice tower telecom

Product Description

hot dip galvanized communication steel lattice telecommunication tower 75 ft steel pole


1.key Details:
Place of Origin: Henan, China (Mainland) ;

Brand Name: DINGLI or OEM ;

Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.


2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from QINGDAO port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.


Quick Detail:

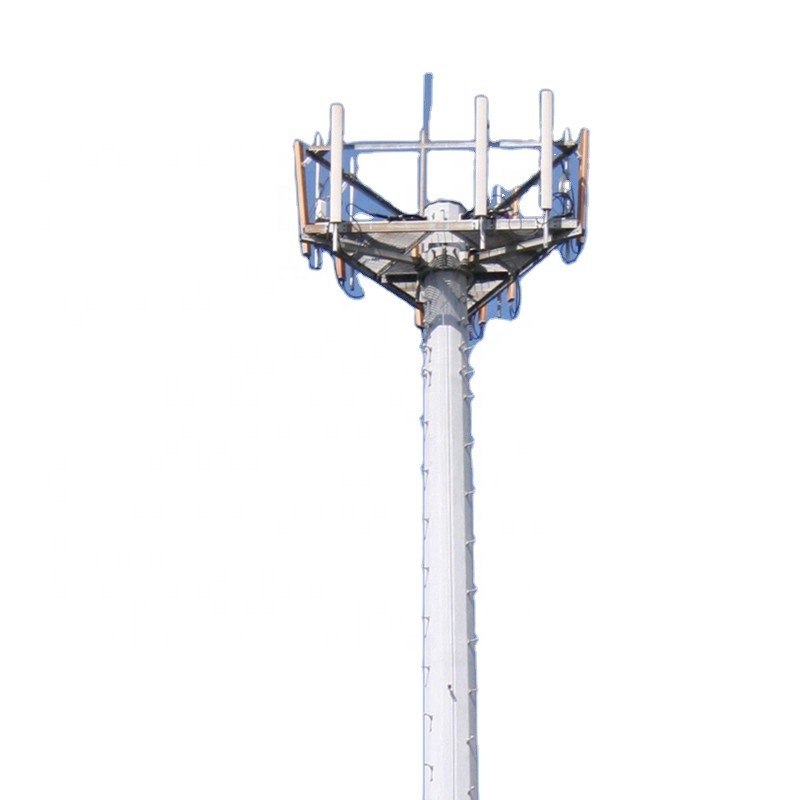

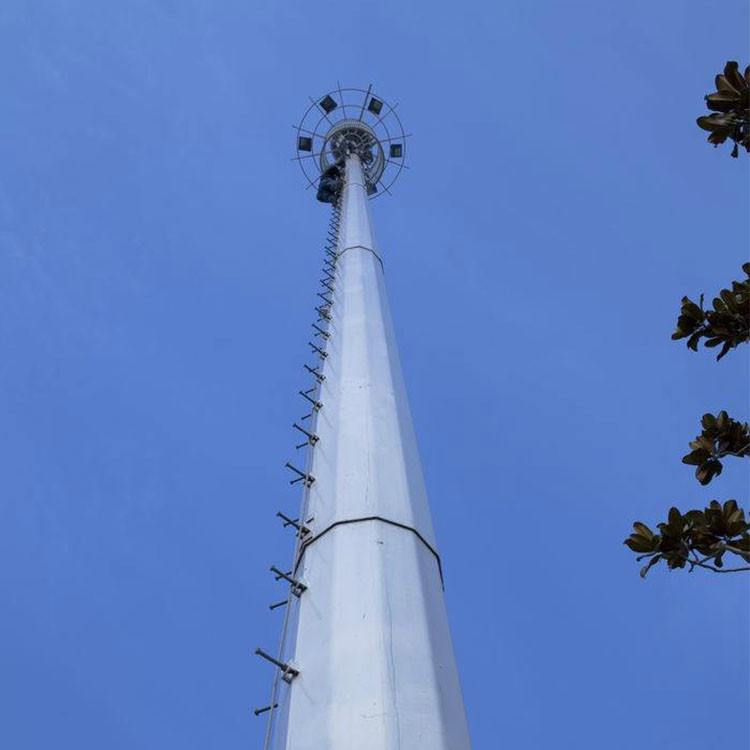

Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This

fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.

As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe

capacity issues on their networks. While new technology and better wireless antennas can help, the best solution

is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more

stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles

and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more

aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.



Monopole advantages:
Small tower footprint and foundation
Fast and easy to erect
Aesthetically pleasing

Versatile for different loading applications
With tapered monopoles becoming more popular in the wireless industry, NELLO invested in a plant that is capable

of producing thousands of poles a year. Some NELLO monopole advantages are listed below:



3. Technical Data

Design
1. Design Code TIA/EIA-222-G/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum



Packing Detials:

Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 0



Production Process And Quality Control

Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 1

Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds
of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting
,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent
standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.


Competitive Advantage:
Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
4. Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure
our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.
7. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
and staff.
8. Special discount and protection of sales are provided to our distributor.
9. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20
years, competitive with good quantity.
Service
Experienced senior engineers and technical staff keeping on learning can help perform design accurately and
timely and ensure quality, reliability and innovation of products. With the help of the latest advanced design
software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes meeting
complex landform and environment, so as to meet various needs of customers.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company
be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis
of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other
CAD and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant
and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.
The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and
avoid the replacement on the profiles to save the working time.
Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your
project delivers as specified. What’s more, he/she communicates with you every step of the way.


Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 2
International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
After-Sale Service
Technical Support
Technical support on pre-sales stage.



DINGLI has own survey and engineering company with more than
100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 3
Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,
Ecuador, Senegal, which will make a fast response for customer.
Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 4
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production
line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with
common use spare parts.
Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 5
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical
consultant and design service within our scope of work. For Quito tower design center, most of the engineers
are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce
the weight, and avoid the replacement on the profiles to save the working time.
Package
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoid the
damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of
40HC or OT an be calculated calculation base on the client actually specification and data.

Hot Dip Galvanized Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole 6
