Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations

Minimum Order Quantity : 10 set or Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS

Detail Information

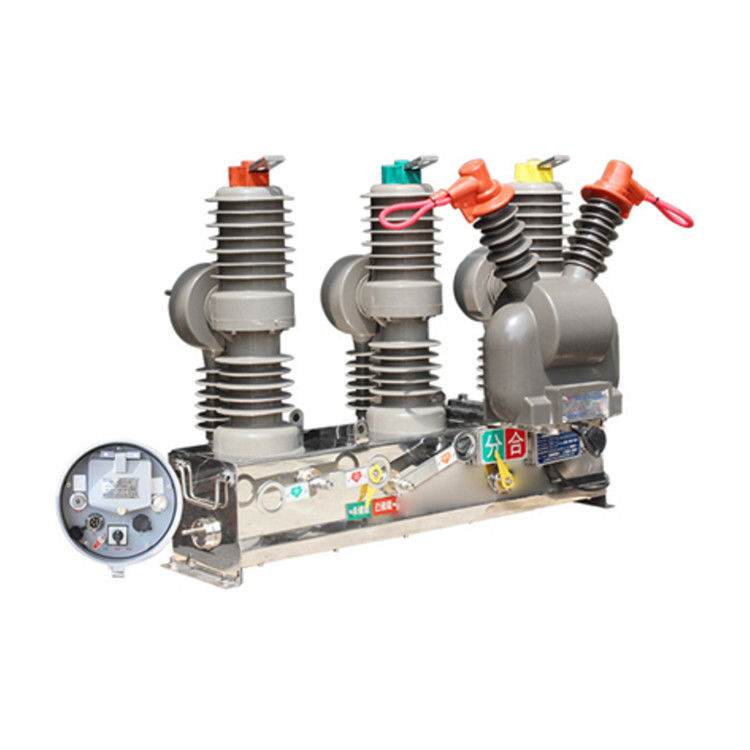

Model Number: ZW32-12F Product Name: Outdoor Voltage Circuit Breaker
Material:: Stainless Steel Or Hot-dip Galvanized Steel. Altitude: ≤2000m
Ambient Tempretureperatu: -40°C-+45°C Wind Speed: 34m/s
Earthquake Intensity: ≤ 8 Degre Ice ThickNess: 10mm
High Light:

12KV High Voltage Vacuum Circuit Breaker

,

Substations High Voltage Vacuum Circuit Breaker

,

12KV hv vacuum circuit breaker

Product Description

China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations



Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations 0

Quick Detail:

Product Description

ZW32-12 model outdoor AC vacuum circuit breaker is used to make and break load current,

overload current and short-circuit cur rent in 12/24kV, 50/60Hz power system. It is applicable

for substations, industry and mining, urban and rural electricity power networks, especially for

occasions with frequent operation and automatic power distribution network. It accords with the

standard of IEC622 71-100 & GB1984: AC high voltage circuit breaker, IEC60694 & GB/T11022:

HV General technical requirement of switch and control apparatus.

Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations 1

Technical Parameter

Name Unit Data
12kV
Rated voltage KV 12
Rated current A 630,1250

Rated

insulating

level

1min.PF

withstand voltage

dry KV 42(across open contacts:48)
wet 34

Lightning impulse

withstand voltage(peak)

kv 75(across open contacts:85)

Rated short-circuit

breaking current

KA 20,25

Rated short-circuit

making current (peak)

KA 50,63

Rated peak

withstand current

KA 50,63

4s rated short-time

withstand current

KA 20,25
Rated operating sequence   O-0.3s-CO-180s-CO

Breaking times of

rated short-circuit

breaking current

times 30
Mechanical duration times 10000

Rated voltage of

energy storage motor

V DC or AC220,DC110, 48, 24
Rated operation voltage V DC or AC220,DC110, 48,24
Abrasions thickNess of contacts mm 3

Rated current of

over-current release

A 5
Current transformer ratio

200/5, 400/5, 600/5

(Protection degree: Ⅲ class, Class: 0.5)

Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations 2

Standard IEC622 71-100 & GB1984: AC high voltage circuit breaker, IEC60694 & GB/T11022: HV General technical requirement of switch and control apparatus.
Ambient condition

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3. Wind speed: 34m/s

4. Earthquake intensity: ≤8 degre

5. Ambient pllution: IV

6. Ice thickNess: 10mm

7. Applicable occasions should be free from inflammables, explosives,corrosives and severe vibrations.
