33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 8000 Piece/Pieces per Month
Brand Name: DINGLI Certification: ISO14001、ISO9001、ISO45001

Detail Information

Place Of Origin: China Model Number: HY5WZ-34/85
Rated Voltage: 33kV Rated Current: 630A
Standard: IEC Recom-mnded UR (kV Rms): Distribution 5kA 4.5
Dimensions(mm): Distribution 5kA 31±1.0 Current Withstand Capability: 4/10ms(kv) 65
High Light:

33kV High Voltage Lightning Arrester

,

Composite High Voltage Lightning Arrester

,

33KV Metallic Zinc Oxide Arrester

Product Description

High Voltage Lightning Arrester Composite Metallic Zinc-Oxide Arrester



Product Description:

Product Show

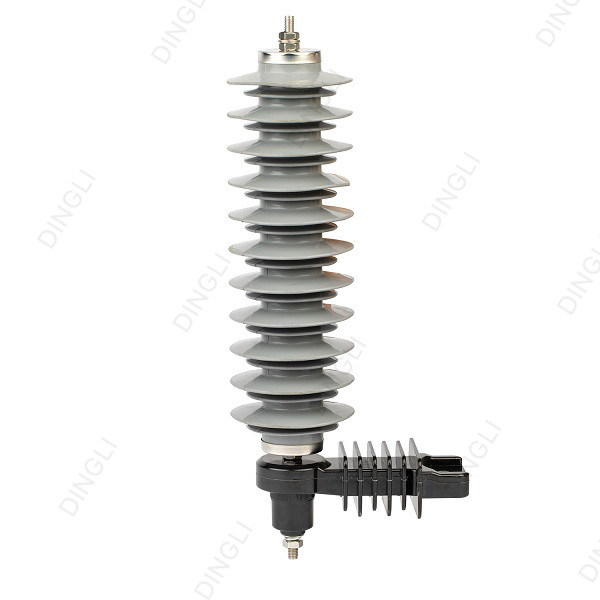

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 0

Application

1. Arrester use under oil-immersed transformer.

2. GIS arrester

3. Railway arrester (DC substation yse,mount on rolling stock).

4. Polymeric protection arrester.

5. Cable sheath protection arrester.

6. Low voltage surge absorber.

Technical Sheet

Application forl EC Standard Recom-mnded UR (kV rms) Model Dimensions(mm) Range of critical operating voltage V1mA-DC,kV-DC Max.residual voltage ration(VX kV/V1 mA)(at 8/20 μs) Current withstand capability
4/10ms(kv) 2ms(A)
Distribution 5kA 3.0 ZV0030-0020-32 21±1.0 4.55-5.40 1.78(at 5kV) 65 100
4.5 ZV0045-0030-32 31±1.0 6.80-8.10 1.78(at 5kV) 65 100
Distribution& Classl 10kA 3.0 ZV0030-0020-42 21±1.0 4.55-5.40 1.83(at 10kV) 100 400
4.5 ZV0045-0030-42 31±1.0 6.80-8.10 1.83(at 10kV) 100 400
Class 2 10kA 1.5 ZV0015-0012-52 12±1.0 2.10-2.40 1.79(at 10kV) 100 600
3.0 ZV0030-0023-52 24±1.0 4.18-4.82 1.79(at 10kV) 100 600
Class 3 10kA 1.5 ZV0015-0012-62 12±1.0 2.10-2.40 1.69(at 10kV) 100 1000
3.0 ZV0030-0023-62 24±1.0 4.18-4.82 1.69(at 10kV) 100 1000
Class 4 10kA 3.0 ZV0030-0023-75 24±1.0 4.18-4.82 1.78(at 20kV) 100 1300

Lightning arrester

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 1

Working Condition

1. Ambient air temperature:-40ºC~+60ºC;

2. Altitude:≤3000m;

3. Frequency 48Hz-62Hz;

4. Power frerequency voltage applied betweeen terminals of surge arrester must not exceed continuous

operating voltage of surge arrester;

5. Earthquake(Seismic)intensity is less than 8 degree;

6. Max Wind speed is 35m/s;

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 2

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 3

 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 4

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 5

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 6

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

33kV High Voltage Lightning Arrester Composite Metallic Zinc Oxide Arrester 7
