126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker

Contact Now

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker

Name: 126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker
Brand: DINGLI
SKU: DINGLI
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (144 reviews)

Minimum Order Quantity :	10 set or Negotiation	Price :	Negotiation
Packaging Details :	Sea worthy : professional packing, plastic bag, carton, pallets if clients needed.	Delivery Time :	Depends on the quality of client
Payment Terms :	30% advanced payment , 70% balance payment before shipment.	Supply Ability :	2000 Set/Sets per Month

Place of Origin:	China	Brand Name:	DINGLI
Certification:	CCC, CE, CQC, RoHS

Detail Information
Model Number:	LW24-126	Product Name:	126 Kv Dead Tank For General Substation Electric Circuit Breaker
Phase:	3	Coil Structure:	TOROIDAL
Coil Number:	2 Winding	Type:	Power Transformer
Rated Current:	3150A	Frequency:	50Hz
Rated Voltage:	126KV	Rated Current:	630A
Rated Frequency:	50Hz/60Hz	Creepage Distance:	31MM/kV
Opening Time:	≤30ms	Closing Time:	≤150ms
Mechanical Life:	>10000 Times
High Light:	126 Kv Dead Tank Circuit Breaker , Substation Use Dead Tank Circuit Breaker , 126 Kv Electric Circuit Breaker

Product Description

126 kv dead tank for general substation use electric circuit breaker

Quick Detail:

Type LW24 outdoor H.V A.C dead tank SF6 with voltage range from 125 to 220kv is a new kind of circuit breaker

with self-blast interrupter and spring operating mechanism.

The lastest achieve-arc gas-blast pressure adapter for breaking current extinguishing principle is employed, most of the

energy for the breaking of short-circuit current is required by the arc itself. Therefore, the demand for operating

power is reduced significanlty. The three phase interrupters are placed inside three metal enclosures respectively.

The circuit breaker can be machanically three phase gang-operated, from both a remote electrical control and a

local manual control. Type CT20-II spring operating mechanism, provided with the product, is a mechanism with

low operating power, minimun maintenance work need and high realiabiity.

Service Conditions

Altitude:≤3000m

Humidity monthly:≤90%
Max .wind velocity:≤35m/s
Pollution class:Ⅲclass,IV class
Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
Max .temperature difference daily: 25K
Earthquake withstand density:9 degree
Ice coating: ≤20mm
Max. radiance from sun: 1000 W/m2
Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.

Product Description

The Specifications of LW24-126
No.	Item			Unit	Data
1	Rated Voltage			KV	126
2	Rated Current			A	3500
3	Rated Frequency			HZ	50
4	Rated Short-circuit Withstand Current(4s)			KA	40
5	Rated Short-circuit Duration			S	3
6	Rated Short-circuit Breaking Current	Short-circuit Current		KA	40
6	Rated Short-circuit Breaking Current	DC Shunt		-	44%
7	Rated Short-circuit Making Current(peak)			KA	100
8	Rated Break Withstand Current(peak)			KA	100
9	Short-line Fault Breaking Current			KA	le90% le75%
10	Rated Out-of-phase Breaking Current			KA	le*25%
11	Rated Charging Line Breaking Current			A	40
12	Rated Insulating Level	1 min P.F withstand voltage	Across open contacts	KV	315
			Phase to phase		275
			Phase to earth		275
		Lightening impulse withstand voltage(peak)	Across open contacts		750
			Phase to phase		650
			Phase to earth		650
		5 min zero-pressure withstand voltage test(virtual value)	Across open contacts		145
		5 min zero-pressure withstand voltage test(virtual value)	Phase to phase		145
13	First Pole to Clear Factor			-	1.5
14	Rated Operate Sequence			-	O-0.3S-CO-180S-CO; CO-15S-CO
15	Full Breaking			MS	≤60
16	SF6 Gas Rated Pressure(20°C)			Mpa	0.5
17	Alarming Pressure				0.45
18	Locking Pressure				0.4
21	Closing Time			MS	75±8
22	Closing&Opening Time		Primary opening time	MS	30
			OC Time		280~300
			Closing Time		30
			CO Time		≤60
			Second opening time		35
23	Control Circuit Voltage			V	AC/DC,110/220
24	CO Loop Voltage			V	AC/DC,110/220
25	CO Loop Current			A	2
26	Motor Voltage			V	AC/DC,110/220
27	Motor			W	600
28	Heater Voltage			V	AC220
29	Mechanical Duration			Times	10,000
30	Radio Interrupting Voltage			uV	≤500
31	Electrical Life of Rated Short-circuit Breaking Current			Times	20
32	Protection Grade of Enclosure			-	IP4X
33	Creepage Distance			MM	5040
NOTE: If there is any question or problem does not comply with your local standards, feel free to contact us.

Our partner is a large-scale manufacturer of circuit breaker electric equipment. During first Five-Year-Plan

it has become an important base for developing and manufacturing in China after many years of development.

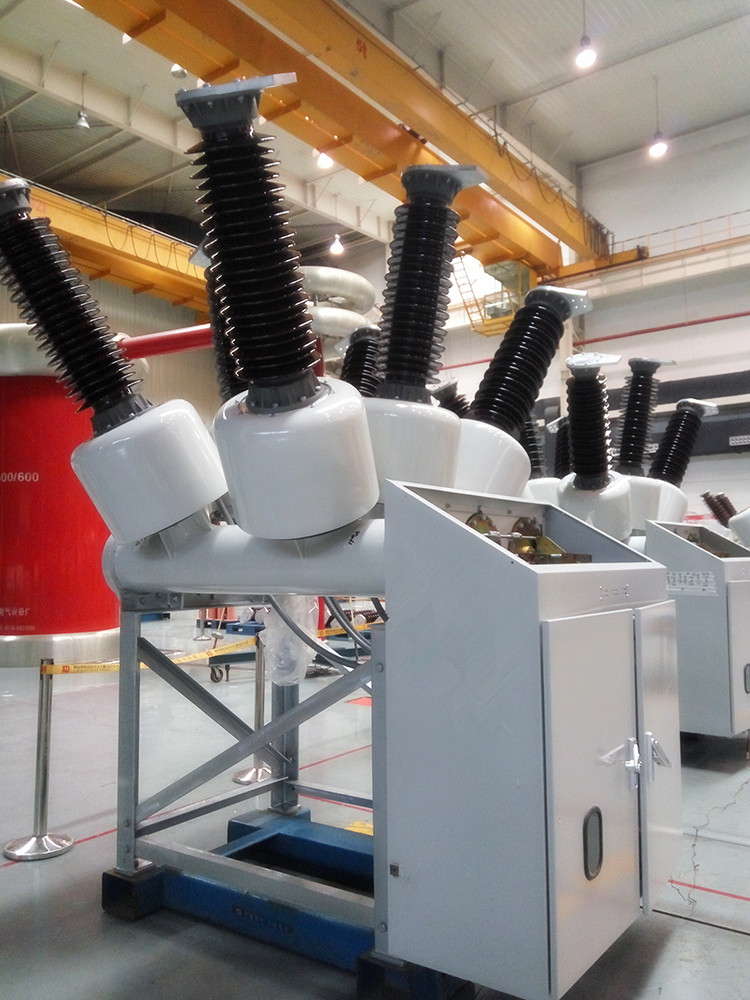

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 1

The products involving power networks have been put into operation everywhere in China and also exported

to many foreign countries and regions. The Company has decades of experience of manufacture. The products

are stable in performance, reliable in quality, advanced in technology. The performances of products reach

advanced international standars, as demostrating by the obtaining of International Certificates.

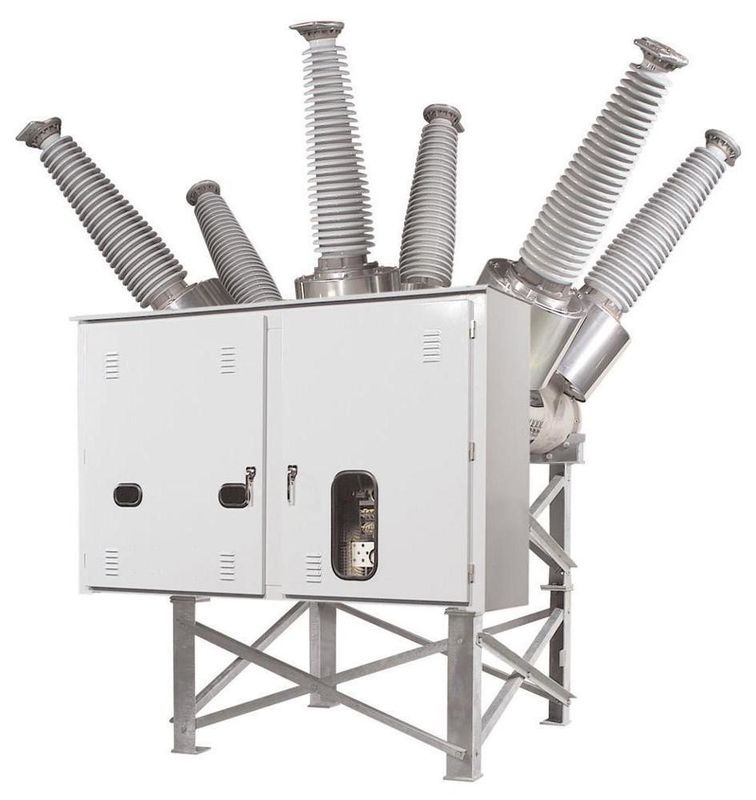

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 2

Service Environment

Workshop:

Shipping:

1. Packing

Our packing experts will work with you and your product’s specifications, and provide solutions for packaging

options to ensure safe transport and delivery.

Packaging:Wooden case, container or according to client's requirements

Shipping:Land transportation and Ocean transportation

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation.

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 5

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 6

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 7

Project Case

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 9

126 Kv Dead Tank Circuit Breaker For General Substation Use Electric Circuit Breaker 10
