Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | DINGLI |
| Certification: | ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard National Packing Method |
| Delivery Time: | Depends on the quality of client |
| Payment Terms: | 30% advanced payment , 70% balance payment before shipment. |
| Supply Ability: | 2000 Ton per Month |
|
Detail Information |
|||
| Material: | Q345B/Q235B | Type: | Steel Tubular Tower |
|---|---|---|---|
| Surface Coating: | Hot Dip Galvanization Or Painting | Voltage Grade: | 10-750KV |
| Galvanization: | Hot Dip Galvanization | Design Wind Speed: | 32M/S |
| High Light: | self supporting tower,transmission tower,hot dip galvanization telecom tower |
||
Product Description
Hot Dip Galvanization Telecom Tower For Gsm With Antenna Net Mast Pole
Quick Detail:
Steel Hot Dip Galvanization Microwave telecoms Communication Post Tower For GSM With Antenna net mast pole
Product Range:
Steel Hot Dip Galvanization Microwave telecoms Communication Post Tower For GSM With Antenna net
mast pole is a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main
function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post
communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication
tower, and movable communication tower.
|
product name
|
New design hot galvanized communication monopole pole tower
|
|
material
|
Q345B/Q235B
|
|
Surface treatment
|
Hot Galvanized
|
|
lifetime
|
50 years
|
|
Appear
|
city
|
|
Design Wind Speed
|
32M/S
|
|
connection
|
Slip joint or Flange
|
|
Shape
|
Conical or Polygonal
|
|
Spare Parts
|
All necessary parts for installation and connection
|
|
Prove
|
ISO9001:2008
|
1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,
and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing
worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can
save land resources and costs, and is especially suitable for construction in cities.
Fabrication
As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete
series of telecom tower ,monopole ,landscape monopole,
camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;
chinmey;water tank) with quick delivery at competitive
prices. Let us provide you a quotation.
Design
Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs.
All tower design is done in complete
conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F,
“Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.
Design and Detailing
We have broad experience with virtually every make and model of tower used in the South America and Africa.
Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to
fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutinyto deliver
what you need.
Structure Analysis and Calculation
We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual
inspection. The visual inspection
of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc.
but it will not show whether a tower is
overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for
stress, along with known behavior of different materials under stress, to determine if any one point on the tower
is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model
of any steel structure, and quickly determine the stresses at hundreds of points on the tower.
Telecom Structure Erection Guide
If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect
the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly
instruction .so it will help you out on tower Structure erection easily
Production Process
Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm
all shop drawings, technical specification, and which standard to conform. Before mass production, we must received
all signed approved shop drawings and technical documents from our client.
Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and approved by
the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.
Proto-Assembly:
For every new type, our factory will do proto-assembly before mass production to ensuere the safety and quality
of product for client.

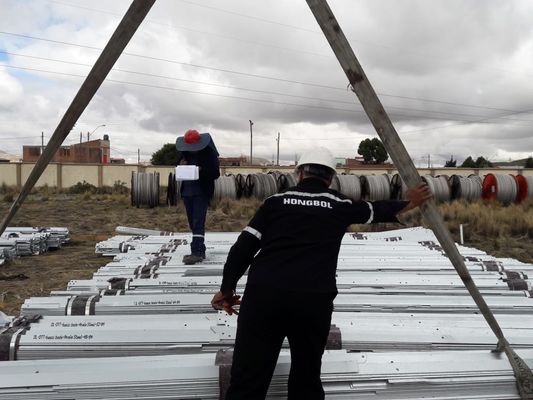

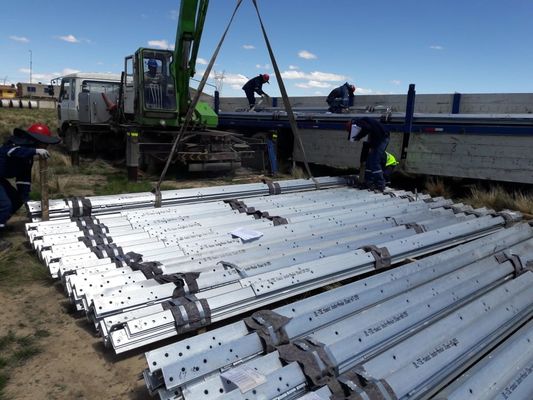

Delivery Site of Client
Package
Set-wisely packing or member-wisely packing as per client's requirements.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
International Fully Automatic Pollution-free Galvanizing Line
All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.
In the new production line, we invest whole package of lifting equipment, all the loading works will be completed in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to protecting our products as always.
The new production line has improved on the part number tracking system, with this system we are doing better to avoid the missing parts problem
Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found
ways to solve it together. They set a high value on this cooperation.
