|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Standard National Packing Method|
|Delivery Time:||Depends on the quality of client|
|Payment Terms:||30% advanced payment , 70% balance payment before shipment.|
|Supply Ability:||2000 Ton per Month|
|Material:||Composite Polymer, Silicone Rubber Insulator||Type:||Insulator|
|Model Number::||U120B/146||Usage:||Insulation Protection|
glass power line insulators,
disc suspension insulator
Epoxy Resin Electric Glass Insulators
Epoxy Resin line Transmission composite post insulator
Composite polymer insulator is composed of epoxy glass fiber core rod, silicon rubber shed and metal parts.
Composite polymer insulator is of high strength and light weight. A synthetic insulator is 1/5 of that of porcelain insulator, but the circum-tensile strength of insulator is very high. Generally, it can be above 6000mpa.
Its umbrella skirt is an organic polymer structure of silicone rubber.Therefore, it has a strong anti-pollution performance.
The product has reliable structure and will not damage the core rod. It belongs to the rod-shaped insulation structure.
① Light weight:
It's small in size and in light weight, it is about 1/5 to 1/9 of the porcelain insulator in the same grade voltage, so it' sconvenient for transportation and installation.
② Good anti-pollution
Composite insulator has a good anti-pollution performance, so it can operate safely in polluted areas, it requires neither annual cheaning nor maintaining at zero.
③ High antifouling property
Good aging resistance performance, strong ability of anti-pollution flashover and good electric corrosion resistance, can ensure that the internal insulation core will not be affected by moisture.
4. Strong shock resistance
Composite insulators have good brittleness resistance, strong shock resistance and there's no brittle fracture accident. Composite insulators are interchangeable with ceramic insulators.
The composite insulator has high mechanical strength, reliable structure and stable performance, which provides a guarantee for the safe operation of the line.
suitable for multiple industries, widely used in power grid, petro chemical, wind power, machinery, construction, communications and other industries.

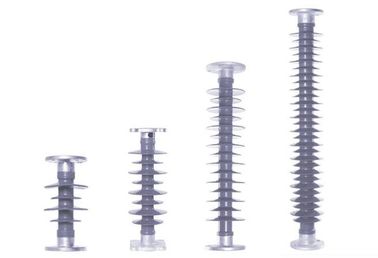

Polymer line Post Insulator / Composite Tensile Insulator / Composite Suspension Insulator
Composite Pin Insulator / Composite Post Insulator
Production and Quality Inspection
Quality Inspection Process:
Material Incoming Inspection Items
a:Strong light test (every piece)
b:Porosity and warter diffusion test
c:Power frequency withstand voltage inspection
d:Tension force loading inspection
a:50% rated mechnical load tensile test
b:50% rated mechnical load bending tes
c:50% rated mechniacl load torsinon test
d:Power frequency with stand voltage inspection
a: Leakage current testing
b: The comparative and the proof tracking inspection
c: Lmpulse endurance test
d. lighting full-wave impulse test
e: Mechnical tensile test broking test
1.Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.
Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
Set-wisely packing or member-wisely packing as per client's requirements.
