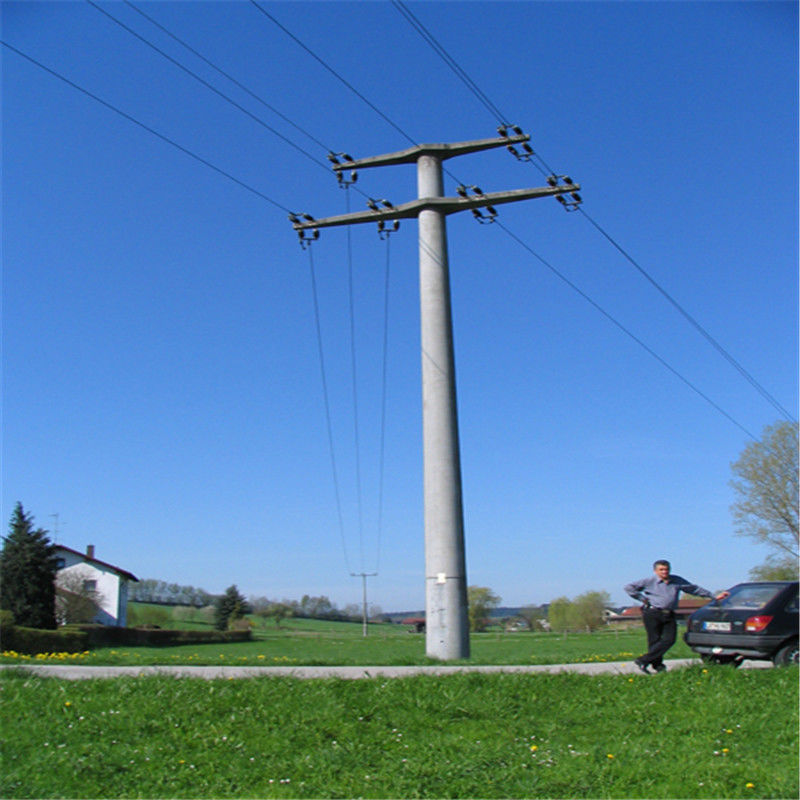

220kV Concrete Pole Production Line

Product Details:
Place of Origin: China
Brand Name: DINGLI
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard National Packing Method
Delivery Time: Depends on the quality of client
Payment Terms: 30% advanced payment , 70% balance payment before shipment, or neg
Supply Ability: 2000 Ton per Month

Detail Information

Material: All Types,GB/ASTM/JIS/EN. Type: Concrete Pole
Surface Coating: Hot Dip Galvanization Or Painting Voltage Grade: 220kV And Below
Painting: According To Clients' Request Pipe Materials: Carbon Steel
High Light:

concrete pole making machine

,

electric pole making machine

Product Description

220kV Concrete Pole Production Line



Quick Detail:

Concrete electric pole making plant /pile mast making machine and moulds

Fencing Compound Cement Poles are simple and easy to install. Used along with barbed and other wires,

they protect any territory from unauthorized entry. They also serve as a boundary for a specific piece of land.

Made using premium quality of cement and other materials, the fencing poles are long-lasting and durable.

They are extremely tolerable to sun and rain.

Few characteristics include:
Simple maintenance
Easy to install
Highly durable
Excellent protection
Available in large volume



Pre-stressed Concrete Electric Pole Making Machine is a kind of mould equipment, which used for making

a variety of different diameter and length of reinforced concrete poles and other cement products.

Pre-stressed Concrete Electric Pole Making Machine is operated by remote-controlled continuously variable

motor. It runs smoothly and has a variable-speed range. So the production Freeson concrete cement electrical

electric pipe pole pile making machine of concrete pipes and piles are good at quality.



Features:



1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing

high stress steel wire can save 40%~69%).



2. Crack resistance can increase about 3~5 times.



3. Rigidity increases 1~3 times.



4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).



5. Good durability, can delay the existence and expansion of cracks.



6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.

.

photos of concrete cement pole making mould:



Main technical specifications:

Inner diameter (mm) Length (m) Wheel diameter(mm) Running wheel diameter(mm)
100 6-7 2000 600
110 6-7 2000 600
120 6-8 2000 600
130 6-8 2000 600
150 8-10 2000 600
170 6-12 2000 600
190 6-12 2000 600
190 15-18 2000 650
230 6-9 2000 650
310 6-9 2000 650
350 6-9 2000 680
390 6-9 2000 750



You want to set up a new factory of concrete pile or pole .Please follow below question :

1. How many poles or pile will be produced per day?also the working day per year, working shift .

2. Will you set up a new concrete pole/pile plant? or just increase the production capacity. we will

give you

differentproposal and solution. also including the factory layout, technology introduction.

3. What kind of Concrete pole/piles? there are reinforced concrete poles, piles; pre-stressed concrete

poles/piles, also the partical pre-stressed poles and piles. there will need some other different machines

for the whole

production line.

4. Pole/Piles Specification: tell us the top diameter, bottom diameter, total length , thank you!

5. How much for the budget ? will you prefer semi-automatic or the full-automatic production?

6. Have you do any market research ? who is your potensial customers? the government project of

telecommunication, electric transmission; or your own project !



Working scope of concrete pole production line:
-Advanced technology transfer of concrete pole production
-Concrete pole production line design,installation and turnkey
-Worker training
-Work with you till mass production or testing production concrete pole productionlineinvestmet.



220kV Concrete Pole Production Line 0



Production Range and advantage:

DINGLI mainly produces various types and grades of pre-stressed concrete poles, reinforced concrete poles,

transmission and transformation steel structure and railway concrete pillars for 220 kV and below transmission

line. At the same time, the company has developed high-strength concrete poles.



In order to realize the "upgrade and transformation" of enterprises, our company has improved the situation of

high energy consumption, low labor rate, poor labor environment and backward production equipment in the

domestic pole industry. In order to achieve environmental optimization and improve product quality. Referring

to the advanced experience of concrete products production at home and abroad and assisting with relevant

equipment manufacturers at home, we have developed and designed an advanced "double-span circulating

concrete pole production line". The pole has realized automatic production, in which concrete mixing, centrifugal

process, prestressing steel bar tension and steam maintenance have realized intellectualization.



Production Capacity and Simple Introduction of Dingli

ØXIPING main factory, built in year of 1966, after six time technical improvement and upgrading, now the yearly
capacity is 80000 pcs per year, available for all kind of spec in Chinese market, also be able to produce based on
international standard.
ØXIPING new factory, built in the beginning year 2016, and now in mass production, designed capacity of 80000
pcs per year, specially for large bending concrete poles, high voltage level products and overseas market. High level
automatic control process, 80% of manufacturing process with automatic and digital control.
ØCOMBODIA PHNOM PENH factory, built in the middle of 2010 and mass production in early of 2011, designed
capacity with 36000 pcs, mainly produce low voltage used concrete poles for rural power grid.
ØXINJIANG RUOQIANG factory, built in beginning of 2008 and mass production in end of 2008, designed yearly
capacity of 80000 pcs, mainly used for urban power grid and long distance rural power grid, also delivery to Tajikistan
Power Grid.
ØSENEGAL DAKER factory, invested by local EPC company, YULIN POWER CONSTRUCTION CO., LTD. Mass
production in 2012, designed yearly capacity of 22000 pcs, mainly used for urban power grid.
ØETHIOPIA BAHDAR factory, invested by local power consultant company, designed yearly capacity 100000 pcs,
high automatic control design, still in construction.

What is our advantage of total solution for Concrete Pole Production Line

1. Skeleton forming process

The Skeleton forming process is finishedThe Skeleton forming process is finished by rolling automatic welding

system which the process has been improved based on our experience and compared to the traditional way we

could save 8 workers , and also the efficiency and yield rate has been improved a lot.

by rolling automatic welding system which the process has been improved based on our experience and compared

to the traditional way we could save 8 workers , and also the efficiency and yield rate has been improved a lot.

220kV Concrete Pole Production Line 1

220kV Concrete Pole Production Line 2

2. Centrifugal molding process

The centrifugal machine is controlled by smart computer system, and all the process would be input into the

system before producing, in this case, one worker could manager three different machines at one time.

220kV Concrete Pole Production Line 3

220kV Concrete Pole Production Line 4

3.Bridge Crane

We use special designed Crane with automatic holding system, in this case it will highly increased the working

efficiency when we transfer the parts to different working platforms. Meanwhile, it will make sure the worker are

safe in this production line for they don’t need to go inside into the centrifugal machine area and the steam curing area.

220kV Concrete Pole Production Line 5

4. Mobile material baiting platform

Dingle own designed system, the baiting platform could optimize the production process into the best

status. It could work for three production lines at the same time.

220kV Concrete Pole Production Line 6

220kV Concrete Pole Production Line 7

What we could do for you?

➢We could supply concrete poles based your drawings, and we have professional packing and delivery solution.

➢We could building a concrete poles production line for you, based on our 50 years experience, we will bring

you a most high efficiency line for you.

➢We could training the workers and engineers for you. At the begin of the mass production or testing production,

we could work together with you until you have all the ability to manage and control this production line.

➢We could invest the line together with you, we will be one of the shareholders and we will be responsible for the

manufacturing and you will be responsible for the marketing.

Therefore, both parties shall give full play to their respective advantages and cooperate to establish a concrete pole

fabrication companyry in your local count, and further develop your local market,and further develop the local market

in your place so as to promote more investment returns for both parties.

220kV Concrete Pole Production Line 8
