SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Export Wooden Box or As required Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Piece/Pieces per Day according to your order qty and delivery
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Stainless Steel, Stainless Steel, Hot Dip Galvanized Steel Type: Galvanized,H.D.G,Wire Rope Clip
Model Number:: U12 Usage: Electric Power Cable,Electric Cable Fittings
Color: Silver,white Process: Casting. Deburring .Drilling .threading
Model Number: Adss Cable Clamp Application: ADSS OPGW Cables
High Light:

overhead line accessories

,

power line fittings

Product Description

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings



SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 0

Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories



Quick Detail:

ADSS dead end clamp fiber optic cable fittings OPGW fittings



Metal Joint Box for ADSS,OPGW Cable:
Cable Joint Box is designed for splicing ADSS,OPGW cables and the normal cables, including two to four sleeves for input and output.
Loose storage space makes storage more conveniently, quickly and cable bending radius big enough, avoiding fiber optic extra loss and ensuring transmission performance.
The double sealed designs make Cable Joint Box more reliable. Easy to install and fix on pole(tower) or tubes.
SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 1
1. Cable Storage Shelf:
Cable Storage Shelf is attended for coiling the surplus cable on the splicing pole.

2. Fix Clamp(GXJ):
Fix Clamp is attended for installing Cable
Joint Box and Cable Storage Shelf one
the tower.

3. Stainless Steel Band:
Stainless Steel Band is designed to install
Cable Joint Box and Cable Storage Shelf
on poles.
SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 2
Down Lead Clamp:
Down Lead Clamp is designed to lead down cables on splicing and terminal pole/tower and to fix the arch section on the middle reinforcing pole/tower. Normally, a unit of Down Lead Clamp is needed 1.5meters, and it is also used in other fixing area.
SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 3
Spiral Vibration Damper:
Spiral Vibration Damper is made of high-strength, antigenic and high-elasticity PVC plastic, easy to be installed on ADSS cables and OPGW cables which diameter are smaller than 12mm. It is an interference type damper designed to attenuate the energy of cable vibration and restrain cable vibration amplitude by impacting with its damping section, so as to protect cables.
SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 4

Corona Suppression Ring:
Corona Suppression Ring is designed to protect ADSS Cable Outer and prolong the ADSS Cable lifetime in the trolley wire. After installation, homogeneous electric field is produced to resist corona and protect the cable.
SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 5

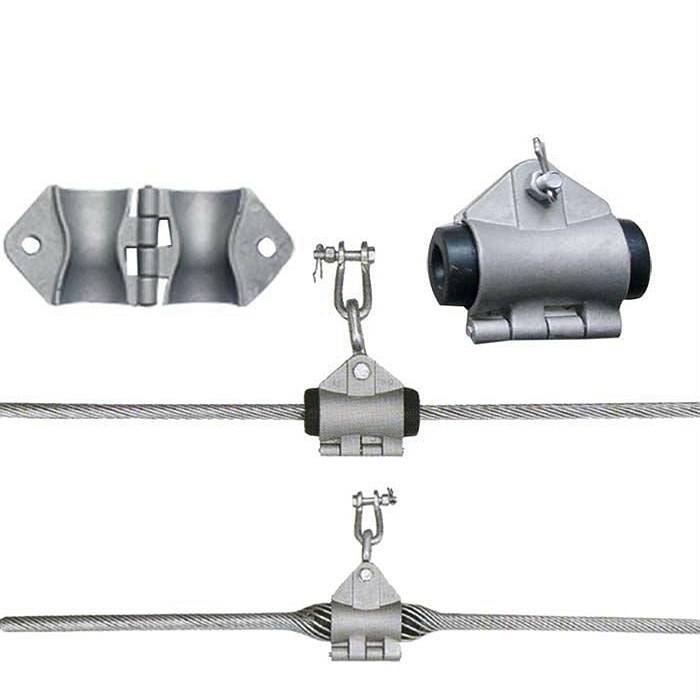

Preformed Suspension Clamp:
The Preformed Suspension Clamp is the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.



Structure and Raw Material:

Housing Clamp--- It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.



Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance, with high and low temperature performance, high strength and elasticity, small compression deformation.



Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.



Inner Preformed Rods---According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance , it can be used for a long time in the bad weather condition.



Outer Preformed Rods--- The same as the Inner Preformed Rods.

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 6



SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 7

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 8

Fastening Clamp:

1. Fastening Clamp for Tower
Series of Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material.

2. Fastening Clamp for Pole
Series of Fastening Clamps for Poles are designed to connect Tension Clamps, Suspension Clamps and cement poles, it is according to the pole type of hanged points and the size of main material.

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 9

Traction Clamp:
Traction Clamp is specially intended for connecting the tightening wires and the cable during the installation of ADSS and OPGW Cables. The Preformed Traction Clamps can keep the cables steady without causing mechanical stress. The structure is simple and reliable. Traction Clamps can be reused no more than three times.



Application Guide:
1. Traction Clamps are suitable for ADSS and OPGW Cables.
2. Select the Specification of Traction Clamp is according to the cable diameter.
3. Traction Clamps can be reused no more than three times.

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 10



All Product Advantage:
1. Light weight
2. Easy to install
3. Hight Quality
4. Against corrosion, can be used for a very long time
5. Warranty & Long life
6. Hot dip galvanized surface tratment, against rust and corrosion



Packaging:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.





SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 11

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 12

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development,

DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 13



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



SS Transmission Line Fittings ADSS Dead End Clamp Opgw Hardware Fittings 14



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
