GR65 GR50 Lattice Steel Towers Electric Transmission Line Angle Iron Tower

Product Description

GR65 GR50 Lattice Steel Towers Electric Transmission Line Angle Iron Tower



Quick Detail:

Power transmission equipment/electric transmission line Angle Iron tower

Lattice towers are the workhorse of the world’s electric grid.



Description:

Since its establishment 50 years ago, Henan Dingli Pole & Tower Co.,Ltd has been devoting itself to research,

development and manufacturing of pole and tower. It has rich experience in manufacturing and design.



Applications:

1. Power transmission equipment/electric transmission line Angle Iron tower ,The Steel tower has a simple

and durable structure and is easy to manufacture. At the same time, experiments are performed in harsh natural

environments such as high altitude, low pressure, hypoxia, sand storms, and severe cold to meet the needs of various

geomorphological features and wind speed conditions.



Specifications:

For production, the Company processes and manufactures raw materials and finished products in strict

accordance with domestic standards such as Specification of Manufacturing for Transmission Line Tower (GB/T 2694),

Cold Forging Hot Dip Galvanizing Bolt and Nut for Tower and Hardware of Transmission Lines (DL/T 764.4-2002) and

Code for Construction and Acceptance of 110-500kV Overhead Transmission Line (GB50233-2005) and American

standards such as ASTM A36, ASTM A572 and ASTM A588, Galvanized according to ASTM A123,so as to ensure

products meet customer’s needs.



1.1. Power transmission equipment/electric transmission line Angle Iron tower grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV

Application	Electric Power Transmission and Distribution
Type	Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower
Material	Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.
Power Capacity	10~550KV
Welding	Welding complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods No fissure, scar, overlap, layer or other defects Internal and external welding makes the pole more beautiful in shape If customers need any other requirements of welding, we also can make adjustment as your request
Galvanization	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required.
Joint	Joint with insert mode, flange mode.
Painting	According to clients' request
Life Period	More than 25 years, it is according to installing environment
Certificates	ISO9001-2008 , Test report of 220kV Steel Tubular Tower & Transmission Line Tower 500kV, Certificate of Conformity of Factory Production Control from LIoyd’s Register, etc

Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained and

professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our

products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be

available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an

excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD and

updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The

Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the

replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project delivers

as specified. What’s more, he/she communicates with you every step of the way.



International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid

the replacement on the profiles to save the working time.

Package

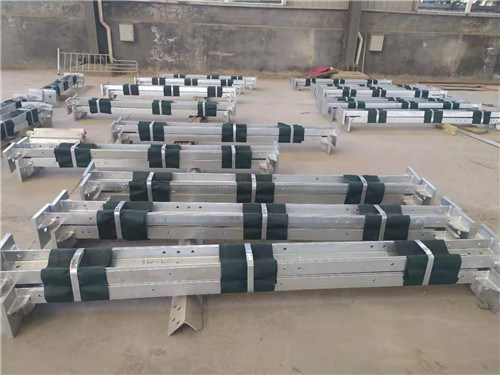

A. Profiles packing methods:

Profiles will be packed by drums. Each drum shall not exceed 2 tons. The profiles below length of 5.8 meters at least

tied 4 times, above length of 5.8 meters at least tied 6 times, to ensure them are not scattered bundle.

Each drum could be adjusted by customers when packing. And there is a plastic filler piece between every two profiles

to avoid being worn.



B. Steel Plate packing methods:

The steel plate ( including warning signs and number plate) will be packed by iron boxes, each box shouldn’t exceed 2 tons.

There are beams under the box for forklift loading. And each box has lifting holes around the foursquare easy for lift loading.

C. Bolts packing methods:

Each type of bolts ( including nuts, washers, etc.) will be individually wrapped in woven bags . Each woven bag should

not exceed 30KG, then packed in metal bucket. Each bucket should not exceed 1.5 tons.

D. Identification

Correspondingly, each product has detailed identification from piece to packing box.

E. New packing solution

We also offer a better protect packing solution, named railway frame loading solution.

Techniques:

The products will be fixed as one unit in the container then mounted on the frame, and there are wheels under the frames.

Installing rails in the container, put the frame with products into the container, then fix it.

In this case, we would additionally charge 1500USD/40GP for the cost price of welding frame and rails in the factory.

Remarks: Dingli has applied patent for this packing method in 20th OCT, 2016.

International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be completed in

our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to protecting

our products as always.

The new production line has improved on the part number tracking system, with this system we are doing better to

avoid the missing parts problem

Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.
