Product Description
PLS / MS Overhead Line Tower Single Circuit Steel Lattice Tower 66kV 330kV
Quick Detail:
66kV/230/330kV Overhead Line power tower single Circuit Tower steel lattice tower :
Lattice towers are the workhorse of the world’s electric grid.
ASTM A36 Equivalent to Chinese standard Q235B.
Description:
Since its establishment 50 years ago, Henan Dingli Pole & Tower Co.,Ltd has been devoting itself to research,
development and manufacturing of pole and tower. It has rich experience in manufacturing and design.
Applications:

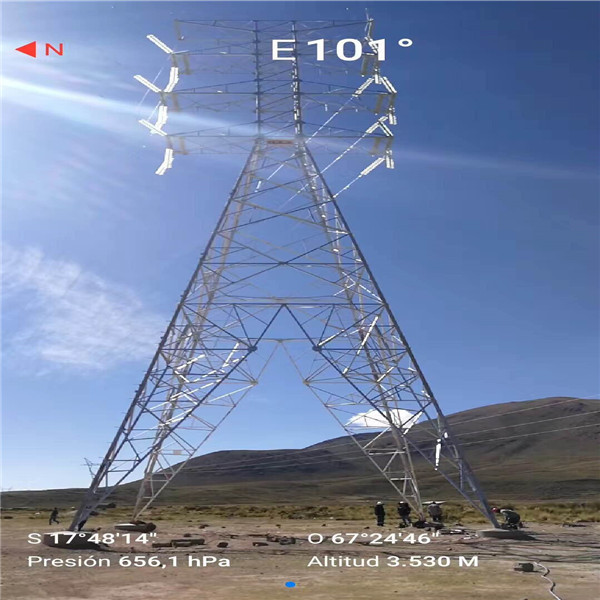

66kV/230/330kV Overhead Line power tower single Circuit Tower steel lattice tower : The tower was erected
on the tower cat shaped head, two wire lightning line, an isosceles triangle arrangement, it is also the 110
thousand kV and above voltage transmission lines of common tower can save line corridor, the economic and
technical indicators than the glass shaped tower is worse.
Specifications:
The product features:
As the traditional transmission line equipment, Angle steel tower has the field widely used, the characteristics of the
design code, the craft is mature, at different distances, different voltage level are showing the advantages and general
applicability
The design of Power Transmission line tower depends on, type of conductor and Earth-wire, wind zone, deviation
angle and material specification. These towers are galvanized to protect the steel from corrosion. The galvanizing
coating thickness depends on the weather conditions at the location of tower.
Transmission Line Steel Tower & Substation Structure- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code |
1. Chinese National Standard: a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line 2. American Standard: a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures b. ACI 318-02 Building Code Requirement for Structure Concrete |
| 2 | Design Software | PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD,PLS-TOWER etc. |
| 3 | Design Loading | As per requirement and specification by Clients worldwide. |
| 4 | Load test/destructive test | We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing. |
| 5 | Voltage | 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line |
| 6 | Hot-dip galvanization | ISO 1461-2009, ASTM A123 |
| 7 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 8 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard |
| 9 | Tower Type | Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower |
| 10 | Tower Type | Suspension Tower, Tension Tower, Dead Tower, Substation Structure |
| 11 | Warranty | Tower structures: 10 years |
| 12 | Return Period | 50 Years |
| 13 | Transportation | We are very close to the biggest port in the world which is our advantage for sea transportation. |
| 14 | Quality Control |
Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre -shipment inspection for the both quantity and quality We treat the quality first and 100% inspection ratio. |
Steel Grades
Angle Steel: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q2230B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994
B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard
Voltage: Power transmission equipment/electric transmission line Angle Iron tower grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV

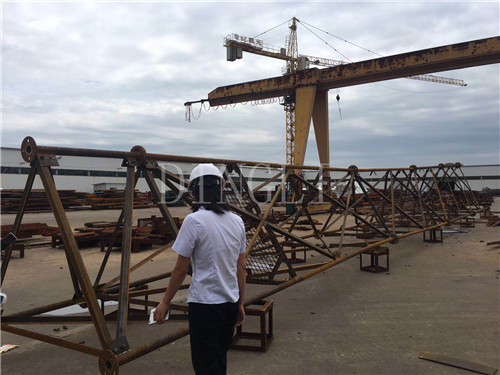

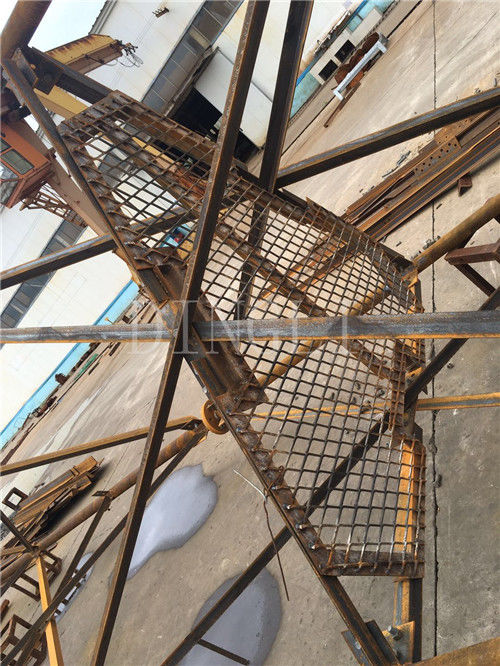

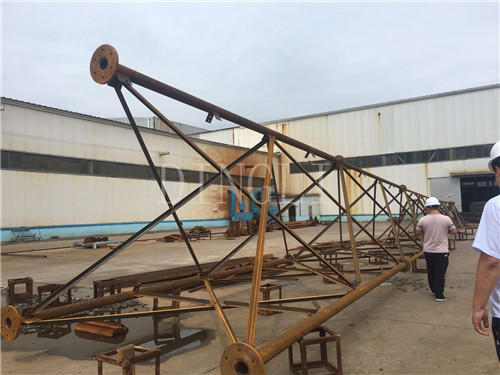

Production Process
Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and
confirm all shop drawings, technical specification, and which standard to conform. Before mass production,
we must received all signed approved shop drawings and technical documents from our client.
Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and approved
by the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.
| Shearing | A:Shearing and cutting shall be performed carefully and all portions of the work which will be exposed to view after completion shall be finished neatly. Manually guided cutting torches shall not be used. B:All material over 13 (or 12) mm thick shall be cold sawn or machine flame cut. C:Cropping or shearing shall be allowed for material thickness of 13 mm or less. Flame cutting of high yield steel shall be preceded by a slight preheat operation by passing the cutting flame over the part to be cut. All flame-cut edges shall be ground clean. |
| Bending | Our company owaned the bending machince. Frether more, we can manufacture the towers with hot bending or cold bending according to client's requirements. |
| Welding | No welding shall be done unless prior approval has been obtained from the Engineer. Welding shall not be allowed at tower attachment points for conductor, shield wire, insulators or associated assemblies or brackets |
| Sub-punching | All holes in structural steel less than 10 mm thickness may be punched to full size unless otherwise noted on the approved Drawings. Holes shown on the Drawings as drilled holes and all holes in structural steel 10 mm or more in thickness and tension members of cross-arms shall be drilled or sub-punched and reamed. All holes shall be clean cut and without torn or ragged edges. All burrs resulting from reaming or drilling shall be removed. All holes shall be cylindrical and perpendicular to the member. Where necessary to avoid distortion of the holes, holes close to the points of bends shall be made after bending. |
| Punching | For punching to full size, the diameter of the punch shall be 1.0 mm larger than the nominal diameter of the bolt, and the diameter of the die shall not be more than 1.5mm larger than the diameter of the punch. For sub-punching, the diameter of the punch shall be 4 mm smaller than the nominal diameter of the bolt, and the diameter of the die shall be not more than 2 mm larger than the diameter of the punch. Sub-punching for reamed work shall be such that after reaming no punch surface shall appear in the periphery of the hole |
| Hole Size | Where holes are reamed or drilled, the diameter of the finished hole shall be not greater than the nominal diameter of the bolt plus 1.0 mm. |
| Galvanizing | All material shall be hot-dip galvanized after fabrication in accordance with the latest revision of GB/T 13912-2002 or ASTM Specification A 123. Material that has been rejected because of bare spots or other coating defects shall either be stripped and re-galvanized, or the uncoated areas shall be recoated by an approved method. All plates and shapes which have been warped by the galvanizing process shall be straightened by being re-rolled or pressed. The material shall not be hammered or otherwise straightened in a manner that will injure the protective coating. Approval shall be secured from the Engineer if galvanizing is done outside of the Contractor's plant. All galvanized steel work shall be protected against white storage stain by using an approved solution treatment immediately following galvanizing. |
| Packing | Our product will be packed into several bundles whose weight is 2~3 MT or according to your requirement. |
|
Hot dip galvanizing |
Standard | Steel thickness/mm |
Mean coating thickness/μm |
Metallic Element |
Content |
|
Pole shafts,cross arms&bolted on accessories |
ASTM A123/ A123M-15 AS/ NZS 4680 |
>6 | 85 | Mn | 0.25%-0.40% |
| <3-6 | 70 | ||||
| 1.5-3 | 55 | Cu | <0.15% | ||
| <1.5 | 55 | ||||
| Bolts,nuts&washers | GB/T 5267.3-2008 | _____ | ≥ 54 | P | <0.025% |
| (ISO 10684-2004) | |||||
| Foundation bolts |
ASTM A153/ A153M-09 |
_____ | ≥ 54 | S | <0.03% |
Competitive Advantage:
Why Us
1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
4. Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure
our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company
be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis
of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other
CAD and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant
and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.
The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and a
void the replacement on the profiles to save the working time.
Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project
delivers as specified. What’s more, he/she communicates with you every step of the way.
International Fully Automatic Pollution-free Galvanizing Line
All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.
In the new production line, we invest whole package of lifting equipment, all the loading works will be complete
in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to
protecting our products as always.
The new production line has improved on the part number tracking system, with this system we are doing better
to avoid the missing parts problem
