132kv Steel Pole Tower Electric Transmission Tower For Electrical Line

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel

Detail Information

Design Software: PLS And MS Tower,etc. Standard: ASTM A123/ A123M-15 AS
Surface Coating: Hot Dip Galvanization Or Painting Voltage Grade: 10-750KV
Galvanization: Hot Dip Galvanization Painting: According To Clients' Request
High Light:

steel lattice tower

,

lattice transmission tower

Product Description

132kv Steel Pole Tower Electric Transmission Tower For Electrical Line

Quick Detail:

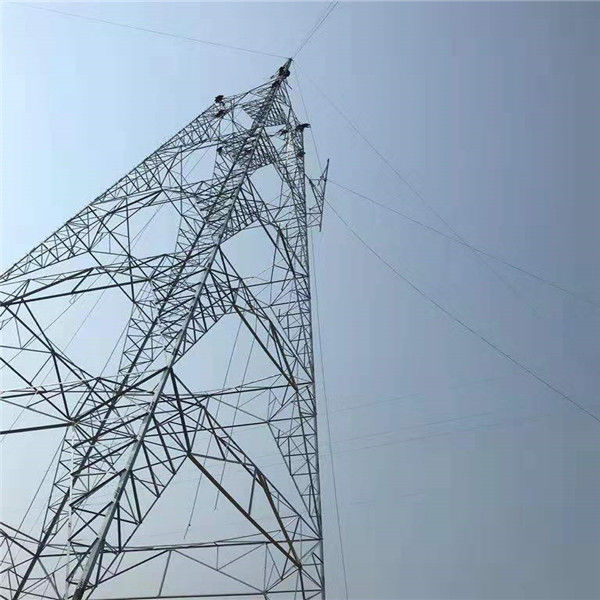

132kv electric power transmission line steel pole tower for electrical line

Lattice towers are the workhorse of the world’s electric grid.

ASTM A36 Equivalent to Chinese standard Q235B.

Description: DESIGN AND DETAILLING

  • The capacity of latticed tower members and connections can be described by relatively
  • simple formulae.
  • Modeling and design is relatively easy.
  • Deflection of guyed lattices towers will be much higher as compared to self supported
  • towers and monopoles.
  • The dynamic overall behaviour of lattice towers is ideal for wind turbines.
  • The configuration of latticed towers can be easily adjusted to accommodate several electric
  • circuits and various types of conductor configurations.

TOWER COST AND FABRICATION

Monopoles are generally more costly than lattice angle towers due to higher cost of plates.

Monopole requires specialized plate bending machine with high capital cost.

Lattice towers using angle sections are very easy to fabricate with quick factory setup.

The thickness of monopole plate increases rapidly with tower height and loads.

Galvanization of monopole sections are much difficult than angle sections.

132kv Steel Pole Tower Electric Transmission Tower For Electrical Line 0



























































Applications:

132kv electric power transmission line steel pole tower for electrical line: The tower was

erected on the tower cat shaped head, two wire lightning line, an isosceles triangle arrangement,

it is also the 110 thousand kV and above voltage transmission lines of common tower can

save line corridor, the economic and technical indicators than the glass shaped tower is worse.

Specifications:
The product features:

As the traditional transmission line equipment, Angle steel tower has the field widely used, the

characteristics of the design code, the craft is mature, at different distances, different voltage level

are showing the advantages and general applicability

The design of Power Transmission line tower depends on, type of conductor and Earth-wire,

wind zone, deviation angle and material specification. These towers are galvanized to protect

the steel from corrosion. The galvanizing coating thickness depends on the weather conditions

at the location of tower.

Transmission Line Steel Tower & Substation Structure- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code

1. Chinese National Standard:

a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line

b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line

2. American Standard:

a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures

b. ACI 318-02 Building Code Requirement for Structure Concrete

2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD,PLS-TOWER etc.
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control

Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre -shipment inspection for the both quantity and quality

We treat the quality first and 100% inspection ratio.



Steel Grades
Angle Steel: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q2230B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994

B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard



Voltage: Power transmission equipment/electric transmission line Angle Iron tower grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV



Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all

drawings and confirm all shop drawings, technical specification, and which standard to conform.

Before mass production, we must received all signed approved shop drawings and technical

documents from our client.



Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor

and approved by the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.

Shearing A:Shearing and cutting shall be performed carefully and all portions of the work which will be exposed to view after completion shall be finished neatly. Manually guided cutting torches shall not be used.
B:All material over 13 (or 12) mm thick shall be cold sawn or machine flame cut.
C:Cropping or shearing shall be allowed for material thickness of 13 mm or less.
Flame cutting of high yield steel shall be preceded by a slight preheat operation by passing the cutting flame over the part to be cut.
All flame-cut edges shall be ground clean.
Bending Our company owaned the bending machince. Frether more, we can manufacture the towers with hot bending or cold bending according to client's requirements.
Welding No welding shall be done unless prior approval has been obtained from the Engineer.
Welding shall not be allowed at tower attachment points for conductor, shield wire, insulators or associated assemblies or brackets
Sub-punching All holes in structural steel less than 10 mm thickness may be punched to full size unless otherwise noted on the approved Drawings. Holes shown on the Drawings as drilled holes and all holes in structural steel 10 mm or more in thickness and tension members of cross-arms shall be drilled or sub-punched and reamed.

All holes shall be clean cut and without torn or ragged edges. All burrs resulting from reaming or drilling shall be removed. All holes shall be cylindrical and perpendicular to the member.

Where necessary to avoid distortion of the holes, holes close to the points of bends shall be made after bending.
Punching For punching to full size, the diameter of the punch shall be 1.0 mm larger than the nominal diameter of the bolt, and the diameter of the die shall not be more than 1.5mm larger than the diameter of the punch. For sub-punching, the diameter of the punch shall be 4 mm smaller than the nominal diameter of the bolt, and the diameter of the die shall be not more than 2 mm larger than the diameter of the punch. Sub-punching for reamed work shall be such that after reaming no punch surface shall appear in the periphery of the hole
Hole Size Where holes are reamed or drilled, the diameter of the finished hole shall be not greater than the nominal diameter of the bolt plus 1.0 mm.

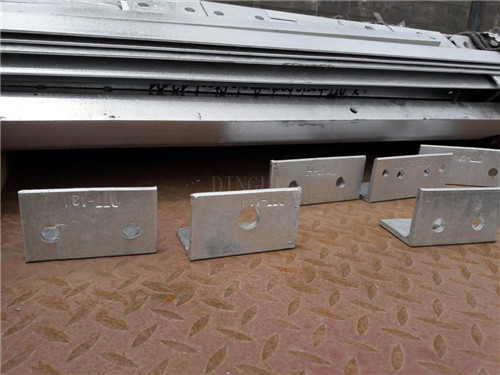

Galvanizing All material shall be hot-dip galvanized after fabrication in accordance with the latest revision of GB/T 13912-2002 or ASTM Specification A 123.
Material that has been rejected because of bare spots or other coating defects shall either be stripped and re-galvanized, or the uncoated areas shall be recoated by an approved method.
All plates and shapes which have been warped by the galvanizing process shall be straightened by being re-rolled or pressed. The material shall not be hammered or otherwise straightened in a manner that will injure the protective coating.
Approval shall be secured from the Engineer if galvanizing is done outside of the Contractor's plant.
All galvanized steel work shall be protected against white storage stain by using an approved solution treatment immediately following galvanizing.

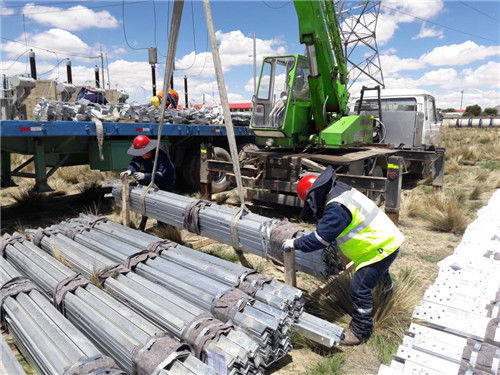

Packing Our product will be packed into several bundles whose weight is 2~3 MT or according to your requirement.





Hot dip

galvanizing

Standard Steel thickness/mm

Mean coating

thickness/μm

Metallic

Element

Content

Pole shafts,cross

arms&bolted on

accessories

ASTM A123/

A123M-15 AS/

NZS 4680

>6 85 Mn 0.25%-0.40%
<3-6 70
1.5-3 55 Cu <0.15%
<1.5 55
Bolts,nuts&washers GB/T 5267.3-2008 _____ ≥ 54 P <0.025%
(ISO 10684-2004)
Foundation bolts

ASTM A153/

A153M-09

_____ ≥ 54 S <0.03%



Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians

to ensure our products to be finished in high quality and stable feature. Welcome to contact us or

visit our company anytime.



In the whole pole and tower manufacturing industry, experienced engineers and designers make the

Company be available of designing accurately and timely and ensuring quality, safety and easy construction.

On the basis of an excellent design team, the Company further configures software of PLS-Tower,

AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide

technical consultant and design service within our scope of work. For Quito tower design center,

most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB

material standard, which will reduce the weight, and avoid the replacement on the profiles to save

the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure

your project delivers as specified. What’s more, he/she communicates with you every step of the way.
