Power Transmission Line Fittings Bolt Link Fitting Insulator Fitting
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
Minimum Order Quantity : | Negotiation | Price : | Negotiation |
---|---|---|---|
Packaging Details : | 1.packaged by bag or carton with pallet 2..small sizes usually is 20 pcs/carton, larger is 4/carton,larges is 1pcs/pallet. 3.a 20 ft container can accept about 22t goods. Special requirements in package can be met. | Delivery Time : | Depends on the quality of client |
Payment Terms : | 30% advanced payment , 70% balance payment before shipment. |
Place of Origin: | China | Brand Name: | DINGLI |
---|---|---|---|
Model Number: | Insulator |
Detail Information |
|||
Certification: | ISO9001/CE | Supply Ability: | 50000 Piece/Pieces Per Month |
---|---|---|---|
Material: | Steel | Type: | Galvanized,H.D.G |
Model Number:: | U12 | Usage: | Electric Power Cable,Electric Cable Fittings |
OEM/ODM: | Available | Color: | Silver |
High Light: | overhead line accessories,power line fittings |
Product Description
Trans Line Fittings Dead End Sets For AAAC Conductor OPGW Cable Fittings
Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation
and modular substation·Distribution network·Electricity Maintenance·Electricity investment·
Telecom tower and accessories
Quick Detail:
Dead end sets for AAAC conductor / ADSS&OPGW cable fittings

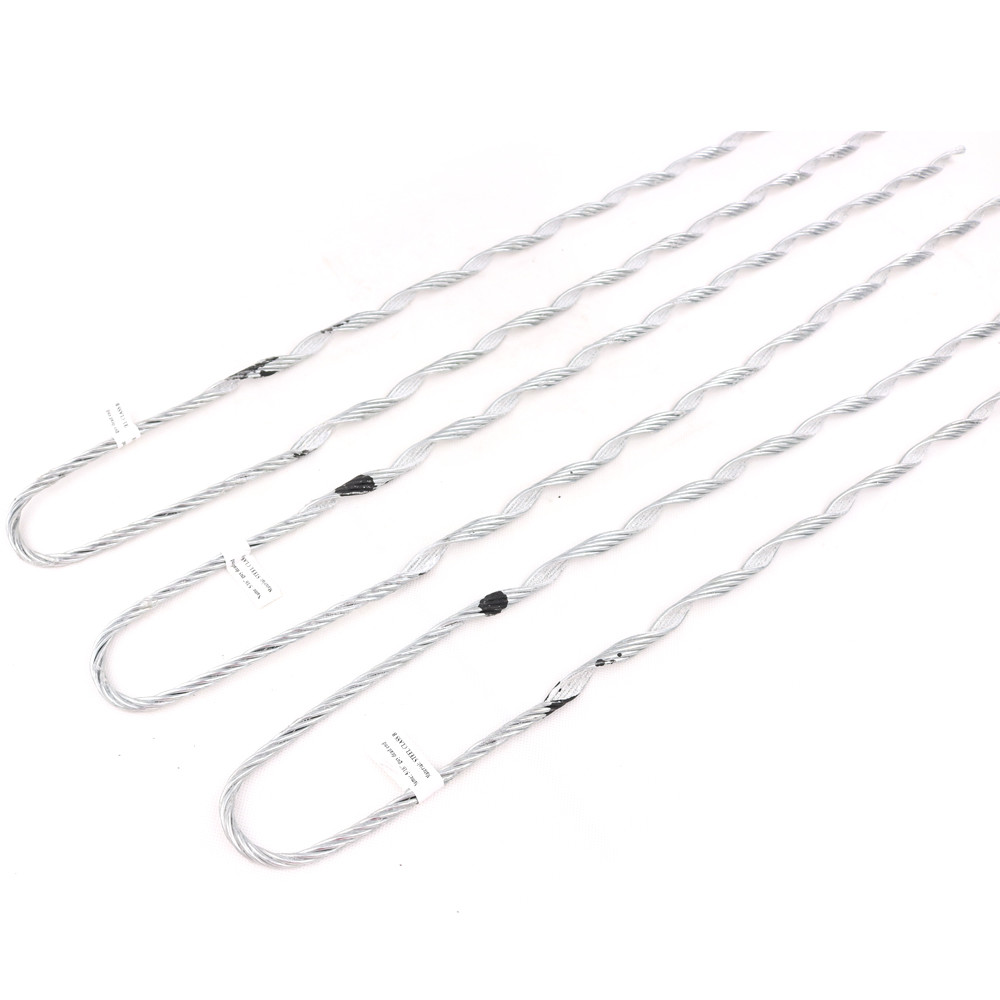

Preformed guy grip dead end clamp for conductor can be applied to bear strain on overhead bared or insulated covered conductors in transmission&distribution lines. It’s the substitutes of the traditional dead end clamps such as bolted type,compression type and wedge type.
Technical Data sheet:
Preformed Guy Grip for AAAC Conductor
Cat. No. |
Conductor Range (mm) |
Applicable conductor size (AAAC), mm2 |
Applied length (mm) |
Units per Carton (pcs) |
Weight (kg) | Color Code |
NL-16/LJ | 4.62~5.16 | 16 | 406 | 100 | 0.1 | Blue |
NL-25/LJ | 5.80~6.53 | 25 | 444 | 100 | 0.1 | Orange |
NL-35/LJ | 7.35~8.26 | 35 | 622 | 100 | 0.2 | Red |
NL-50/LJ | 8.27~9.25 | 50 | 685 | 100 | 0.2 | Green |
NL-70/LJ | 10.40~11.68 | 70 | 736 | 100 | 0.4 | Blue |
NL-95/LJ | 11.69~13.11 | 95 | 800 | 100 | 0.4 | Orange |
NL-120/LJ | 13.12~14.66 | 120 | 876 | 100 | 0.6 | Red |
NL-150/LJ | 14.67~16.59 | 150 | 889 | 50 | 0.8 | Black |
NL-185/LJ | 16.60~18.77 | 185 | 1016 | 50 | 1.1 | Green |
NL-210/LJ | 16.60~18.77 | 210 | 1016 | 50 | 1.1 | Green |
NL-240/LJ | 18.78~21.26 | 240 | 1155 | 20 | 1.7 | Orange |
NL-300/LJ | 21.27~24.05 | 300 | 1270 | 20 | 2.3 | Blue |
NL-400/LJ | 24.06~27.20 | 400 | 1422 | 10 | 3.0 | Brown |
NL-500/LJ | 27.21~30.78 | 500 | 1651 | 10 | 4.9 | Orange |
Packaging
1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development,
DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.
Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
Package
Set-wisely packing or member-wisely packing as per client's requirements.
Global-network map
China
Henan DINGLI Pole and Tower Co., ltd.
Henan Zhongdingxin Detection Technology Co.,ltd.
Henan Dadi Electricity Engineering Co.,ltd.
Henan DINGLI Power Equipment Co.,ltd
Henan DINGLI Power Construction Co., ltd
Huading Concrete Pole Co., Ltd
Xingjiang Huili Steel Tower Co., Ltd.
Bazhou Dingli Tower Co., Ltd.
Shanghai Sales and Service Center
Beijing Sales and Service Center
Cambodia
Cambodia Phnom Penh Factory
Spain
Madrid (Spain) Sales and Service Center
Dakar, Senegal
Senegal (Dakar) Sales and Service Center
Senegal (Dakar) Spare Part Warehouse
Quito, Ecuador
Quito (Ecuador) Steel Tower Design Center (ASTM Standard)
Quito (Ecuador) Steel Tower Emergency Production Line
Quito (Ecuador) Raw Material and Spare Part Warehouse
Lima, Peru
Lima (Peru) Sales and Service Center
Cochabamba, Bolivia
Cochabamba (Bolivia) Raw Material and Spare Part Warehouse
Santiago, Chile
Santiago (Chile) Sales and Service Center
Jakarta, Indonesia
Jakarta (Indonesia) Sales and Service Center
Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.
