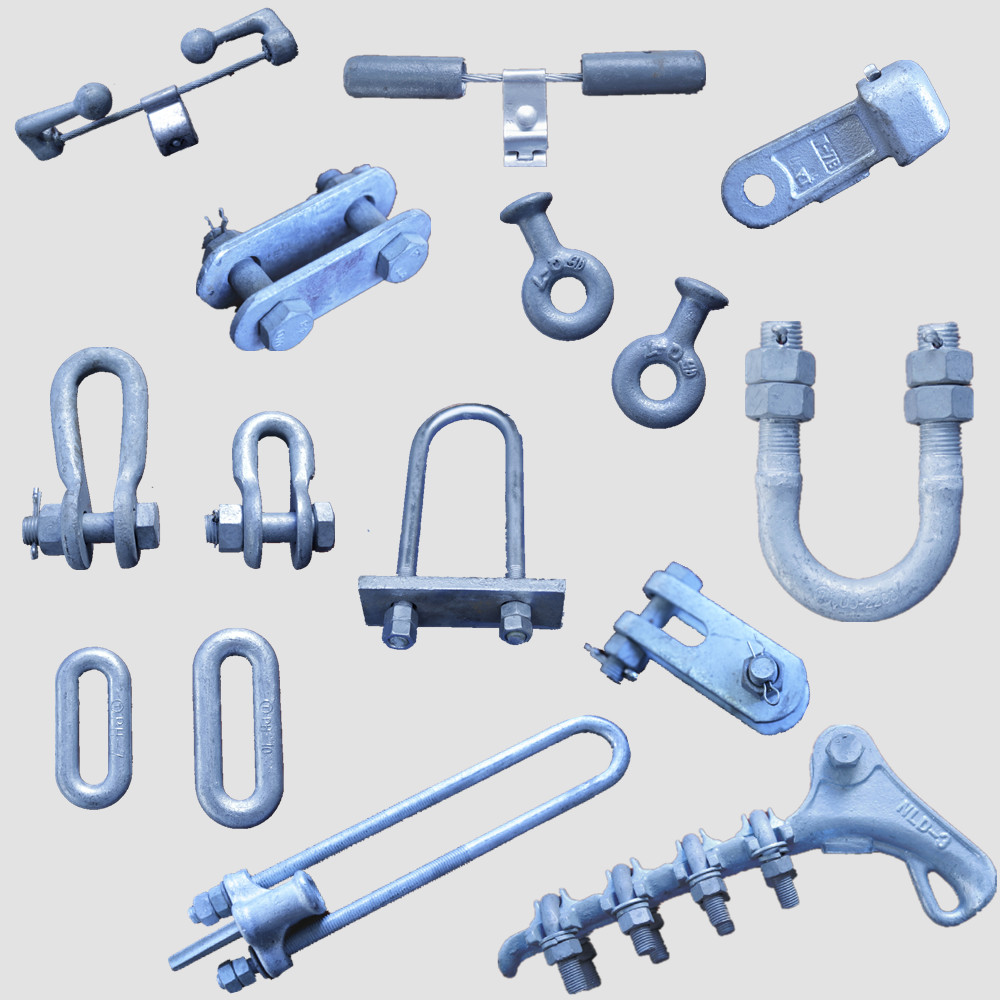

Power Accessories Transmission Line Fittings Overhead Line Tower Iron Parts

Product Description

Power Accessories Transmission Line Fittings Overhead Line Tower Iron Parts



Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories



Quick Detail:

Electric Power Iron Accessories Overhead Line tower Iron Parts Power Accessories







Aluminum Alloy NLL U Bolts Type High Tension Cable Strain Clamps for Transmission Line Fittings

STRAIN CLAMP BOLT TYPE
Modle:NLL-1
Applicable Conductor(mm²):5~10
U bolt:2
Specified Failure Load(kN):40
Aluminum Alloy Strain Clamp(Bolt type)is suitable for aerial line up to 10 kv,fixing aluminium wire or steel core aluminum wire on the strain pole,aerial insulation aluminium conductor.
Each U - shaped bolt is fastened to a single pressing block to ensure uniform contact pressure.



Type	Applicable Conductor(mm²)	U bolt		Specified Failure Load(kN)
		Quantity	Diameter(mm)
NLL-1	5-10	2	12	40
NLL-2	10.1-14	2	12	40
NLL-3	14.1-18	3	14	70
NLL-4	18.1-23	3	14	90
NLL-4L	12.48-21.66	4	16	90
NLL-5L	23-29	3	16	90
NLL-6	25.6-32.67	5	16	100

The clamp body and keepers are malleable iron, the closed-pin s stainless steelwork, the other parts are steel.



Custom design casted and forged alloy metal formed parts/components









1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.





Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.



Package

Set-wisely packing or member-wisely packing as per client's requirements.
