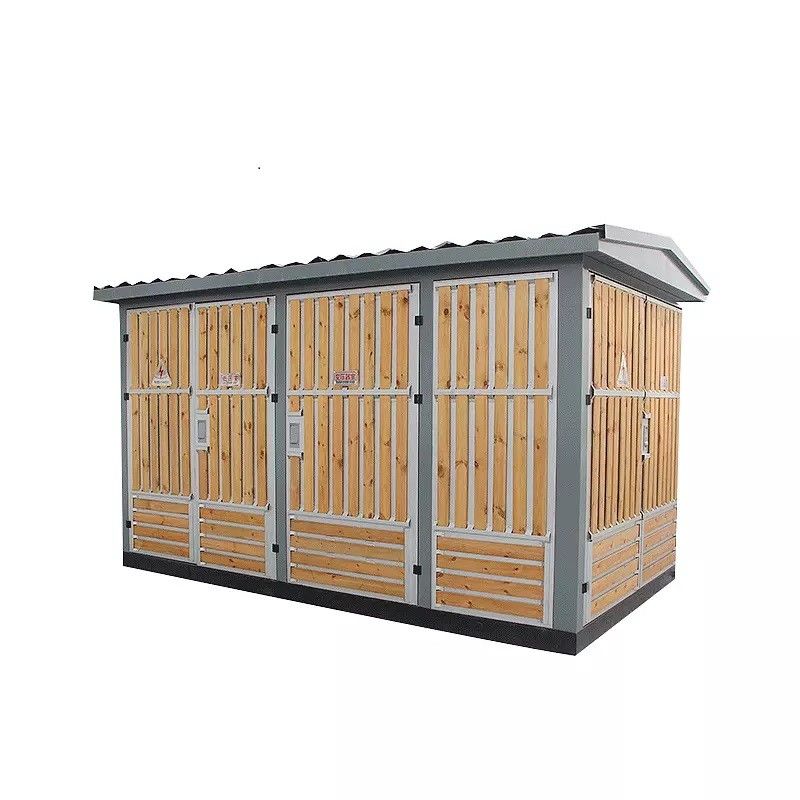

YB Series Prefabricated Substation Cubicle Type Substation Easy Maintenance

Product Description

YB Series Prefabricated Substation Cubicle Type Substation Easy Maintenance



Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

YB Series Cubicle-type Substation



Product Description:

Main Functions And Features The product consists of HV distribution unit,transformer,and LV distribution unit and is divided into HV chamber,transfomer chamber and LV.The HV chamber has complete functions,it with HXGN□一10 ring main unit forms the primary supply system,may be arranged into several supply modes(ring main supply,teminal supply and dual-source supply and also may be provided with HV metering elements to meet requirements on HV metering Model S9,S11 and other low loss oil-immersed transformers or dry transfomers else may be selected.The transformer chamber is designed to have automatic forced air cooling system and lighting system.The LV chamber can constitute user-requiredpower supply schemes in a panel type or cabinet type structure,provide several functions(power distribution,lighting distribution,reactive power compensation,and metering of electrical power)to meet users'different requirements,and facilitate supply management and improve power supply quality.

The HV chamber is compact in structure and is provided with mis-operation preventive interlocking function.Each chamber has automatic and forced lighting device.In addition,all elements in HV and LV chamber are reliable in performance and easy in operation,which makes the products safe and reliable in running and easy in operation and maintenance.



It adopts both natural ventilation and forced ventilation to reach good ventilation and cooling effects. The transfomer chamber and LV chamber are provided with air ducts. The blower fan has a temperature controller to automatically start and stop as per the preset temperature, thus ensuring on-load running of trans fomer.
The casing body prevents rain water and foreign matters from entrance and it is made of hot-galvanized color steel sheet or anti-rust aluminum alloy sheet and subjected to anti-corrosion treatment. It looks artistic, keeps long-tem corrosion-, water and dust-proof under outdoor conditions, and prolongs service life of transformer.



Application of product:
Its products have following characters: serialization, modularization, mutiple functions, complete facility, small volume, light weight and good-looking. They meet the requirement of IEC1330 standard and applicable to city public distribution, street lamp power supply, as well as power consumption in industrial & mineral enterprises, high-rises, residential areas, oil fields, jetty and site construction.
