Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Wooden packing or as per your required Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment., Western Union Supply Ability : 400 Piece/Pieces per Year
Place of Origin: China Brand Name: DINGLI
Model Number: Mobile substation

Detail Information

Certification: Test Report/CESI/ CTQC/ISO9001 Material: Aluminum-zinc Plate
Type: Distribution Box Electrical Boxes Shape: House
OEM/ODM: Available Application: Electric Power Transmission
High Light:

kiosk transformer

,

compact transformer substation

Product Description

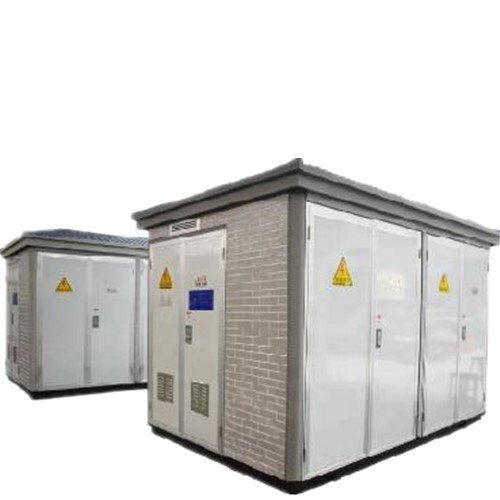

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub



Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

Medium Voltage MV 6.6KV 10KV 11KV 12KV 15KV Compact Metal-clad Transformer Substation Mobile Koisk / Package Cubicle Substation

Description

Compact MV substations are designed and manufactured for standard and specific customer requirements that are widely used in areas where underground power reticulation is required, such as in residential, commercial and industrial developments. The fully enclosed transformer, HV and LV connections or switchgear are all fully assembled and tested in the factory prior to shipping to site. The standard design methodologies have been subject to extensive design review and subsequent in field review.

Many standard and customised compact MV substation arrangements are available. All configurations are fully rated in their enclosures, which include:

  • In line kiosk (HV, transformer, LV) with oil containment
  • In line kiosk (HV, transformer, LV) without oil containment
  • Pad mounted style (HV and LV on one side of transformer) with oil containment
  • Pad mounted style (HV and LV on one side of transformer) without oil containment

Any other special request that a customer may have Key features and benefits include:

  • Compliance with Energy Performance Standards
  • Robust build with integrated quality control and proven performance
  • Proven supply chain integration
  • Qualified weld processes
  • Robust construction for transport to the most inaccessible locations
  • Excellent corrosion protection systems, with option of galvanised tanks and marine grade aluminium or 3CR12 stainless steel cubicle for rugged long life protection
  • Hot dip galvanized mild steel or concrete base, fluid containment available up to 110%
  • High fire point environmental fluid if beneficial
Description

(1) Medium/High voltage compartment,

(2) Low voltage compartment

(3) transformer compartment.

We can supply this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.

HV & LV compartment is with completed function. H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.

The transformer compartment can be choosed S7 ,S9 S11 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.

Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.

This substation body mainly has metal material, stainless steel material , non -metal material ...which can be choosed by user and customers

This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.

1) High Voltage Compartment which equipped with RMU-Ring Main unit Switchgear, GIS-Gas insulated switchgears ..

inside.

2) Low voltage compartment in which equipped with low voltage switchgear panels such as standing alone MCCB panels,ACB panels, PFI-Power Factor Imporvement panels..etc

3) Transformer compartment in which is equipped with 3-phase oil immersed power distribution transformer or 3-phase cast resin dry transformer

Technical data
High voltage compartment item unit Parameter
Rated frequency Hz 50 /60 Hz
Rated Voltage KV 3.3KV , 6.0KV, 6.6KV 10KV 11KV 13.8KV 15KV 20KV 22kv 30KV 33KV 35KV 36KV
Max service voltage KV 7.2 KV 12KV , 24KV 40.5KV
Rated current A 400, 630, 1000, 1250 ,1600, 2000, 2150,...etc
Transfer current A 1200 -3150 A
1MIN Power frequency withstand voltage , earth -phase KV 42/48, 85/95
1MIN Power frequency withstand voltage , phase/fracture
BIL KV 75/85, 170/185
Rated short circuit breaking current KA 20, 31.5
Transformer compartment Rated voltage KV 3.3KV , 6.0KV, 6.6KV 10KV 11KV 13.8KV 15KV 20KV 22kv 30KV 33KV 35KV 36KV
Rated power capacity KVA 200 KVA Upto 2.5 MVA
Tapping range % ±2 X 2.5% , ±5%
Vector group   Yyn0, Dyn11
Short-circuit Impedance % 4.0 , 4.2, 4.5, 6, 8
Low voltage compartment rated voltage V 220, 380, 400, 415, 433, 440, 660, 690,800
main circuit rated current A 50 -4000
branch current A 5-800
Enclosure protection level
HV compartment   IP33, IP65..
LV compartment   IP33
Transformer compartment   IP23
Noise level dB ≤ 50
About us

We are engaged in manufacturing,development,service ,sales & marketing of H.V./L.V. power distribution equipments,switchgears,pad-mounted transformers,compact substations..etc .for all over the world. As a leading & professional manufacturer in China,we mainly manufacture below items and supply their electrical accessories:

  • H.V.& L.V.switchgears
  • M.V solid insulated switchgears (SIS)
  • compact substations
  • single phase & three phase pad mounted transformers(PMT)
  • Gas insulated switchgears(GIS)
  • Ring main units (RMU)
  • Oil-immersed transformers and dry type transformers
  • Cable Branch Box (CBB)
  • Vacuum circuit breakers (VCB),Air circuit breakers(ACB),mini circuit breakers(MCB),Moulded case circuit breakers(MCCB),Residual current circuit breakers(RCCB).Fuse cutout,overload relays,contactors.etc

Workshop and Inspection:

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 1



Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.
2. We can arrange technicians to  install the equipments and train your staff on site.
3. Anytime, we provide considerate technical consultation.
4. Prompt reply for your inquiry and feedback.

Packaging

1. Specific packaging can be made to order.

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 2

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 3

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 4

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 5

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 6

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.

 Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory

Spain

Madrid (Spain) Sales and Service Center

Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse

Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse

Lima, Peru

Lima (Peru) Sales and Service Center

Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse

Santiago, Chile

Santiago (Chile) Sales and Service Center

Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 7

Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.

Customers and Partners of Dingli

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 8

Medium Voltage Compact Transformer Substation Metal Clad Package Cubicle Sub 9
