Outdoor Compact Prefabricated Substation 10KV Distribution Box EU EEU Standard

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Wooden packing or as per your required Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment., Western Union Supply Ability : 400 Piece/Pieces per Year
Place of Origin: China Brand Name: DINGLI
Model Number: Mobile substation

Detail Information

Certification: Test Report/CESI/ CTQC/ISO9001 Material: Aluminum-zinc Plate
Type: Distribution Box Electrical Boxes Shape: House
OEM/ODM: Available Rated Votage: 33KV 1000KVA
Keyword: Prefab Substation Installation Site: Well-ventilated Place
Suit For: Community, Park ,station, Hotel, Construction Site Application: Electric Power Transmission
High Light:

padmount substation

,

kiosk transformer

Product Description

Outdoor Compact Prefabricated Substation 10KV Distribution Box EU EEU Standard

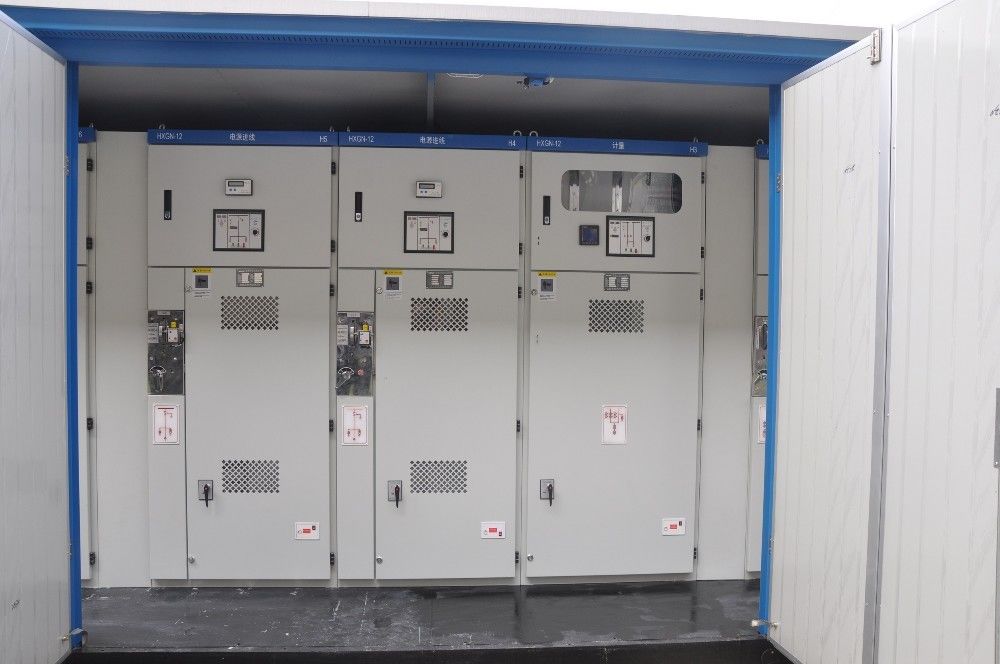

Outdoor Compact Prefabricated Substation 10KV Distribution Box EU EEU Standard 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

EU EEU Standard Outdoor 15KV 630KVA 15/0.4KV Compact Customized10KV power distribution prefabricated substation



Ring network cabinet:
Can be installed to meet the measurement requirements of the original measurement



Name
box-type substation
structure
By the high voltage electrical equipment transformer low voltage electrical equipment combination
characteristics
Complete set, small size, compact structure, safe and mobile operation
function
Receiving and distributing electrical energy
material
Steel topped with glass
configuration
High voltage distribution device, transformer, low voltage distribution device,Can be arranged into a ring network power supply, terminal power supply, dual power supply
Application
Power plant substation petrochemical metallurgy transportation energy light industry textile residential high-rise building



Service conditions

◎ Altitude: ≤1000m;

◎ Ambient temperature should be within -25°C~+40°C, mean value within 24h should not exceed +35°C;

◎ Outdoor wind speed should not exceed 35m/s;

◎ Relative air humidity should not exceed 90% (+25°C);

◎ Seismic intensity: horizontal acceleration should not more than 0.4m/s2; vertical acceleration should not more than 0.2m/s?;

© The installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.

◎Note: Any special requirements can be settled through friendly negotiation.
Data sheet

Outdoor Compact Prefabricated Substation 10KV Distribution Box EU EEU Standard 1
Main technical parameters
HV unit
Rated frequency
Hz
50
Rated voltage
kV
7.2 12 24 40.5
Rated current of main bus
A
630 1250 1600
Rated short-time withstand current / duration
kA/s
20/4 25/3 31.5/4
Rated peak withstand current
kA
50 63 80
1min power frequency withstand voltage (to-ground/between open contacts)
kV
32/36 42/48 65/79 95/115
Lightning impulse withstand voltage (to-ground/between open contacts)
kV
60/70 75/85 125/145 185/215
Rated short-circuit breaking current
kA
20 25 31.5
Ground loop short-time withstand current / duration
kA/s
20/2 20/4
Rated short-circuit making current of main loop
kA
50 63 80
Rated active load breaking current
A
630
Rated closed loop breaking current
A
630
Rated transfer current
A
1700
Mechanical life
times
3000 5000 10000
LV unit
Rated frequency
Hz
50
Rated voltage
kV
0.315/0.27
Rated insulation voltage
V
690
Rated current of main loop
A
100~3200
Rated short-time withstand current
kA/s
30/1 50/1 100/1
Rated peak withstand current
kA
63 105 176
5s power frequency withstand voltage
kV
2.5 3.75
Transformer unit
Rated frequency
Hz
50
Rated voltage
kV
7.2 12 24 40.5/0.4
Rated capacity
kVA
30~1600
1min power frequency withstand voltage
kV
25/20 35/28 55/50 85/75
Lightning impulse withstand voltage
kV
60 75 125 170
Impedance voltage
4~6
Tapping range

±×2.5% ±×5%
Connection group

Y,yn0 D,yn11
Type

Oil-immersed type, dry type
Cabinet body
IP code of HV and LV chambers

IP33D
IP code of transformer chamber

IP23D
Sound level (oil-immersed type/dry type)
dB
≤50/55


Workshop and Inspection:
