12kv Prefabricated Substation 500kva Box Type Cable Connection Box 50HZ / 60HZ



12kv Prefabricated Substation 500kva Box Type Cable Connection Box 50HZ / 60HZ 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

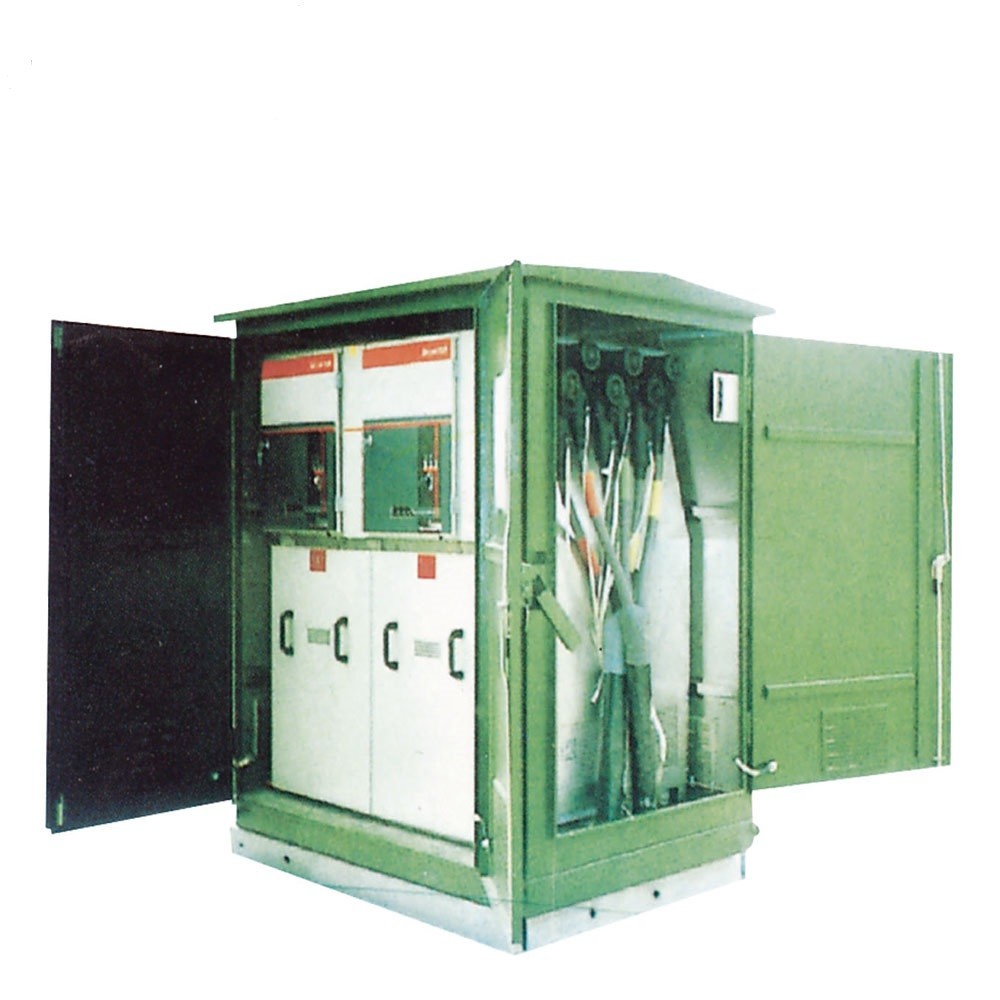

Name: HDFW-12 12kv substation 500kva transformer box-type cable connection box



Quick Detail:

HDFW - 12 series of outdoor high voltage cable connection box (outdoor box type ring network cabinet, switch type cable connection box) is used for power cable connection and tapping, within the product USES the high performance of SF6 gas insulation sulfur hexafluoride load switch and a touch screen type cable type joint, has strong active load and no load of cable current open and close short circuit current.Lightning arresters and ground fault indicators can be installed according to user requirements.

Each ring wire in this series is equipped with a load switch or vacuum circuit breaker.Any branch loop is free to exit and put into operation, and the other loop is unaffected.A fuse can also be attached to the load switch.When a branch circuit has a short circuit fault, the fuse on the branch circuit can quickly disconnect the fault circuit, and impact the tripping device of the load switch to make it open. The fault circuit is isolated, so as to ensure the power supply connectivity of the non-guaranteed branch circuit.

Each switch is permanently sealed and maintenance-free (i.e., 30 years).No bare electric rest, moisture, dust, condensation.Manual spring energy storage operating mechanism can be added with electric operating mechanism and control unit to realize electric and remote operation (optional), and FTU can also be installed to realize automatic distribution network.

Outdoor box: with 2.5mm thick stainless steel plate welding forming, according to user requirements for the appearance of mirror or sand spray (camel gray or environmental protection green}.

Within the framework;It is welded by steel plate and profile and cast by hot plating.The load switch and the cable connector of incoming and outgoing wires are fixed on the cabinet frame and installed in the outdoor box.

switch room: installed SF6 load switches, the switch models are fln36-12d, fln48-12d, sfg-12 and fully enclosed SF6 load switchgear or vacuum circuit breaker.

Cable access cabinet: touchable shielded cable connector with live display.

Cable out room: according to the number of out branch assembly of the corresponding number of cable joints and cable fixed cabinet.

Techncial Data:​


Item Unit Data
Rated voltage Kv 12
Rated current on main busbar A 400/630
Rated short endurance current/duration KA/S 20/3
Rated peak withstand current KA 50
(min power frequency withstand voltage) KX 42
Lightning shock withstand voltage {peak value) KV 95
Loop resistance {not greater than} {deduct cable) µΩ 60
Local discharge {not greater than) pC 10(15kv)
Applicable cable type   XLPE
Applicable cable section Mm2 25~400
Enclosure protection grade

LP33
