Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : 1.packaged by bag or carton with pallet 2..small sizes usually is 20 pcs/carton, larger is 4/carton,larges is 1pcs/pallet. 3.a 20 ft container can accept about 22t goods. Special requirements in package can be met. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 8000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Protective fitting

Detail Information

Material: Aluminum Alloy Usage: Prevent Wire Collision
Supply Ability:: 50000 Piece/Pieces Per Month Color: Silver,gray
Application: Overhead Line Accessories Function: Prevent Wire Collision
High Light:

overhead line accessories

,

power line fittings

Product Description

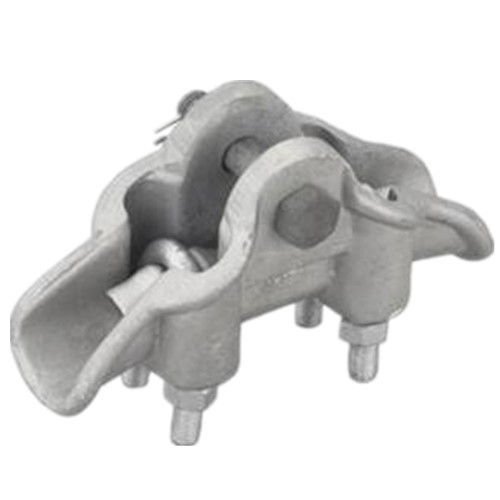

Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp



Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp 0

Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories


 Quick Detail:
Transmission line fittings overhead line fittings ADSS suspension clamp bridge cable clamp



Our Advantages

History Since 1996,we have been focusing on making electrical power fittings

ADVANTAGES

Quality



Our customers highly approve of the products

Service



24 hours service

On time



All orders are delivered on time

OEM



OEM service







Product Description
Application: Suspension clamps are used to hang conductor or ground wire through insulators or link fitting to tower arms or substation structures.The clamps are made of malleable iron or aluminium alloy.

The suspension angle of suspension clamps is not less than 25℃,the radius of curvature is not less than the dia.of installed lead by 8-10.








The clamp body and keepers are aluminum alloy ,cotter -pin stainless steel ,the other parts are hot-dip galvanized steel.















Technical Parameters:

Catalog No. Conductor Dia.(mm) Dimensions(mm) Specified Failure Load(KN) Weight(kg)
H C M R L
CGH-2 5.1-12.5 52.5 25 16 18 166 40 1
CGH-3 12.4-17 50.5 23 16 11.5 200 40 1.5
CGH-4 19-23.5 59.5 27 16 13.5 225 40 2.3
CGH-5 24.2-28 70 32 16 16 260 60 4.4
CGH-6 25-35 68 35 16 17.5 216 60 3.6
CGH-8 48-53 97 36 20 27 300 60 5.5



Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp 2

Packaging
1. Specific packaging can be made to order for sea transport.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp 3

1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development,
DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp 4


Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Rustproof Transmission Line Fittings Adss Cable Suspension Clamp Bridge Cable Clamp 5


Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package
Set-wisely packing or member-wisely packing as per client's requirements.
