OPGW / ADSS Fiber Optical Cable Tension Suspension Clamp Span Adss Fittings

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : 1.packaged by bag or carton with pallet 2..small sizes usually is 20 pcs/carton, larger is 4/carton,larges is 1pcs/pallet. 3.a 20 ft container can accept about 22t goods. Special requirements in package can be met. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 8000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Protective fitting, JZJ4,FJZ3,JTZ4,TJ2,FJQ,JJB2,FJZ

Detail Information

Material: Aluminum Alloy, Aluminum Alloy, Rubber & Galvanized Steel Color: Silver,gray
Application: OPGW/ADSS Cable Function: Prevent Wire Collision
Product Name: OPGW Down Lead Clamp For Tower Feature: Anti Corrosion
High Light:

trans line fittings

,

power line fittings

Product Description

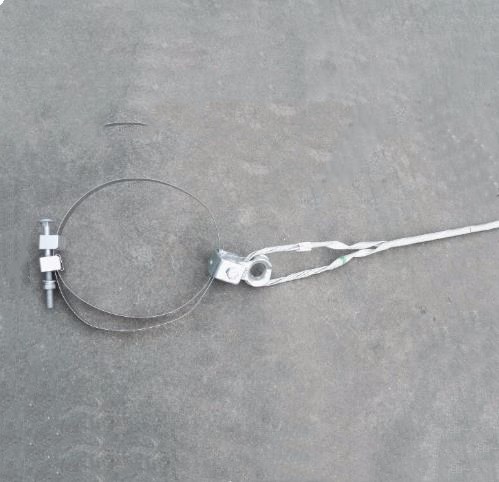

OPGW / ADSS Fiber Optical Cable Tension Suspension Clamp Span Adss Fittings



OPGW / ADSS Fiber Optical Cable Tension Suspension Clamp Span Adss Fittings 0

Total Solution the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories



Quick Detail: Factory 200/400/600 Span Adss Fittings Accessories Adss Fiber Optical Cable Tension Suspension Clamp In China



Description: This ADSS fitting clamps used to connect ADSS fiber optic cable and tower in ADSS fiber optic cable erection. Pre-skewers can protect and improve the resistance of ADSS fiber optic cable. The special design of pre-stranded wire can ensure that the tension clamp itself will not produce the stress concentration that causes damage to the ADSS cable, so as to ensure the normal life of the cable system.



Tension clamp datasheet(for reference only):

Model no. Dia.of ADSS cable (mm) Tensioning preformed rods Color code
Length(mm) Rods quanlity
ANF 1000 010 9.0-10.0 750 6 Red
ANF 1110 010 10.1-11.1 800 7 Orange
ANF 1220 010 11.2-12.2 850 7 Yellow
ANF 1330 010 12.3-13.3 900 8 Green
ANF 1440 010 13.4-14.4 950 8 Blown
ANF 1550 010 14.5-15.5 1000 6 Blue
ANF 1660 010 15.6-16.6 1050 6 Purple
ANF 1770 010 16.7-17.7 1100 7 Black
ANF 1880 010 17.8-18.8 1150 7 Red



Suspension clamp( for reference only):

Model No. Dia. Of ADSS cable (mm) Length of clamp(mm)
AXJ 1110 010 9.0-11.1 116
AXJ 1330 010 11.2-13.3 116
AXJ 1550 010 13.4-15.5 116
AXJ 1770 010 15.6-17.7 116



Remark: Pls advise the details of ADSS cable to customized the ADSS fitting clamps.



Packaging

1. Specific packaging can be made to order for sea transport.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.






OPGW / ADSS Fiber Optical Cable Tension Suspension Clamp Span Adss Fittings 1





1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development,
DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

OPGW / ADSS Fiber Optical Cable Tension Suspension Clamp Span Adss Fittings 2



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



OPGW / ADSS Fiber Optical Cable Tension Suspension Clamp Span Adss Fittings 3



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.


Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.


Package
Set-wisely packing or member-wisely packing as per client's requirements.
