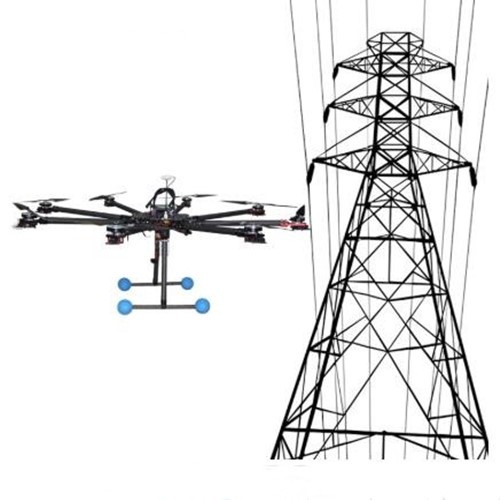

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 20000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: Customized

Detail Information

Product Name:: UAV Inspection System Duration: 4 Hours
Cruise Time: 100 Km/h Playload: 3kg - 7 Kg
Camera: Single / Dual HD Visible Light Accuracy: Base Station + Airborne RTK, Post Differential Mode
High Light:

uav drone

,

transmission line inspection drone

Product Description

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection



Quick Detail:Power line inspection robot uav drone for tower and high voltage line inspection



Automatic inspection system for transmission corridors

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 0

Inspection robot

  • Sighting crossing robot along the ground
  • Striding inspection robot across the ground
  • Patrol single-segment robot along the guide/ground
  • Striding inspection robot along the wire
  • Ground pipe gallery inspection robot

Collect message < Fault identification < Repair and maintenance

Data center: equipment information system, maintenance (information, fault, maintenance and repair) information system, maintenance scheduling system, data storage system



The Inspection Robot System For Aerial Transmission Line

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 1

Transmission Line Inspection Robot

  • Inspection of Transmission Lines
  • Walking on the line (wire, ground)
  • Intelligent navigation, obstacles
  • Visible light, infrared, lidar sensor

UAV Inspection

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 2

Inspection Planning

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 3

Helicopter Inspection

Using the laser radar scanning system mounted on the helicopter platform, high-density, high-precision lidar point cloud and optical image data on the high-voltage transmission line can be obtained. Realize the true three-dimensional modeling of the transmission line body and its surrounding environment, and carry out high-precision three-dimensional space measurement, simulation analysis and channel visualization management.
Integrate a variety of sensors such as laser scanners, inertial navigators, digital cameras, data loggers, and weather sensors to quickly acquire laser point clouds, image data, and weather data of transmission line equipment and corridors.

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 4

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 5

Characterastic

Helicopter Line inspection

  • Flying along the center of the line, the flight speed is about 60-80km/h, and the flying height is about 200m.
  • 100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 6
  • The data acquisition pod is externally attached to the abdomen of the helicopter, and the data acquisition device is controlled by the control and monitoring system in the engine room to achieve real-time monitoring data acquisition effect.

Energy storage platform



In order to solve the short-running problem of UAV, an energy storage platform based on the principle of online energy-taking is proposed.

  • Energy is stored in a variety of ways, and the electrical energy is stored in the battery of the energy storage platform.
  • The transmission line tower is equipped with a charging platform. The functions include: energy harvesting and energy storage, UAV charging,UAV take-off and landing, monitoring data receiving and transmitting, and ground communication.
  • It adopts industrial-grade UAV, with high degree of flight control and hardware stability, realizes automatic lifting and lowering on the charging platform, and patrols according to the planned route. It is equipped with high-definition cameras, infrared instruments, ultraviolet instruments and other testing equipments for inspection, and transmit data to the ground monitoring center.

Data analysis system

According to the condition of inspection tower and the transmission line, the size of the image that the UAV needs to shoot for each base tower is 45~50MB, and the data volume of one gear is about 120~130MB. Simply transmitted to the ground by UAV, subject to signal and network speed constraints, low efficiency.

When the UAV is charging on the platform, the data is transmitted to the platform, and then the platform transmits the data back to the monitoring center through the wireless base station established on the ground.

100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 7



Autonomous inspection platform for drones



The drone takes 30 hours, which is 4.5 times more efficient than traditional human patrols for 136 hours. At the same time, it strengthens basic management and on-site operation risk management and control, and improves the lean management level of drone patrols. The application of the human-machine independent inspection platform makes the drone inspection more autonomous and intelligent.



100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 8

Autonomous inspection platform for drones



100 Km/H Uav Power Line Inspection Drone For Tower / High Voltage Line Inspection 9

Total solution for electricity maintenance

  • Transmission line condition monitoring and evaluation system.
  • Inspection robot on the earthing wire/ Conductor
  • UAV inspection system for transmission line
