Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Brand Name: China Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel
Model Number: DINGLI

Detail Information

Material: ASTM A572 GR65, GR50, SS400 Available Height: 5-100M
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Joint: Joint With Insert Mode, Flange Mode. Feature: Durable Structure
High Light:

steel lattice tower

,

lattice transmission tower

Product Description

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole



Quick Detail:Substation Structure Transformer Electric Steel Tower Pole

Electric Transmission Line Metal Latticed Tower:

(1) Professional Design (2) Advanced Equipment

(3) Strict Quality Control (4) Complete Products

(5) Rich Experience (6) Full Range of Service

Description:

Power transmission towers can support the structure of high voltage or ultrahigh voltage overhead

transmission lines and lightning protection lines.

Applications:

The structure of steel tower is simple and durable, and has convenience in processing and manufacturing.

Meanwhile stands trial in severe natural environments such as high altitude, low pressure, oxygen deficit,

sandstorm and severe coldness exist, and meets needs under conditions of various geological landforms

and wind speeds.

Specifications:
For production, the Company processes and manufactures raw materials and finished products in strict accordance

with domestic standards such as Specification of Manufacturing for Transmission Line Tower (GB/T 2694),

Cold Forging Hot Dip Galvanizing Bolt and Nut for Tower and Hardware of Transmission Lines (DL/T 764.4-2002)

and Code for Construction and Acceptance of 110-500kV Overhead Transmission Line (GB50233-2005) and

American standards such as ASTM A36, ASTM A572 and ASTM A588, Galvanized according to ASTM A123,

so as to ensure products meet customer’s needs.

Product Substation Structure Tower
Height 5m to 30m or other height customer requirement
Suit for Electric Power Distribution Transmission Steel Tower
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52
Strength 2.5KN,5KN,8KN,10KN,12KN
Torlance of the dimenstion +- 2%
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade I
The casing anti-corrosion performance Class II
Working atmosphere of lighting fixture -40 ºC~+45 ºC
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles Insert mode, inner flange mode, face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160km/hour
Minimum yield strength 335mpa
Minimum ultimate tensile strength 400mpa
Max ultimate tensile strength 620mpa
Standard ISO9001
Length of per section Within 14m once forming without slip joint
Welding
We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard : AWS ( American Welding Society ) D 1.1
Thickness 1mm to 30mm
Production Process Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Style Size and styles are variable as per customer request

Physical Detection:

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 0

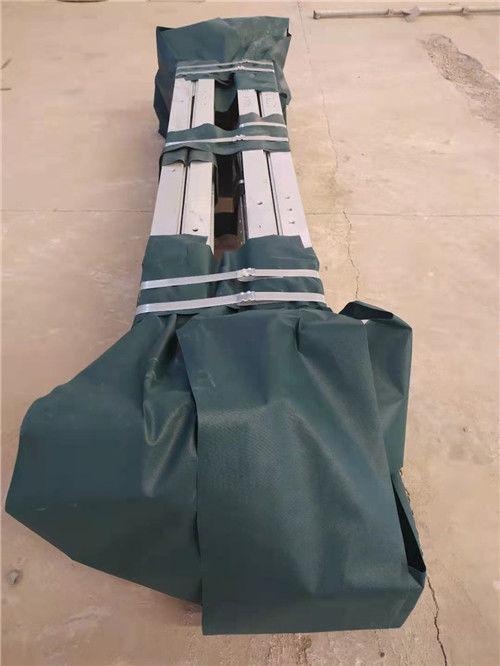

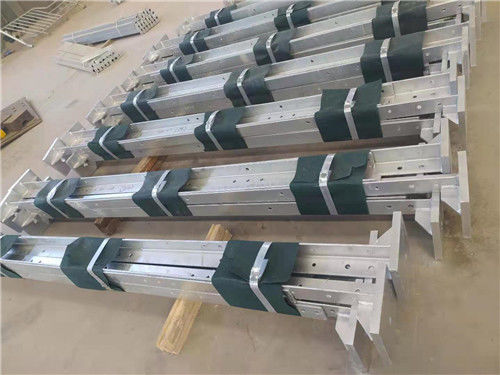

Packing Detials:

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 1



International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and

avoid the replacement on the profiles to save the working time.

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 2

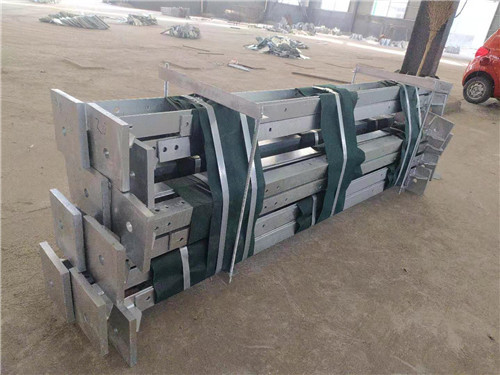

Package

International Package Method suitable for long distance delivery.

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 3



Organization Chart of Dingli

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 4

Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.



Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 5



Customers and Partners of Dingli

Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 6Durable Lattice Steel Towers Substation Structure Transformer Electric Steel Tower Pole 7
