Telecommunication Steel Tubular Tower Hot Dip Galvanized Steel Tower

Product Description

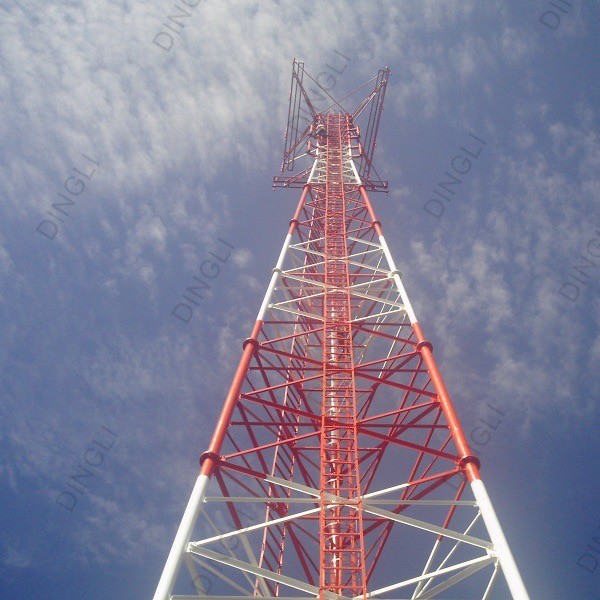

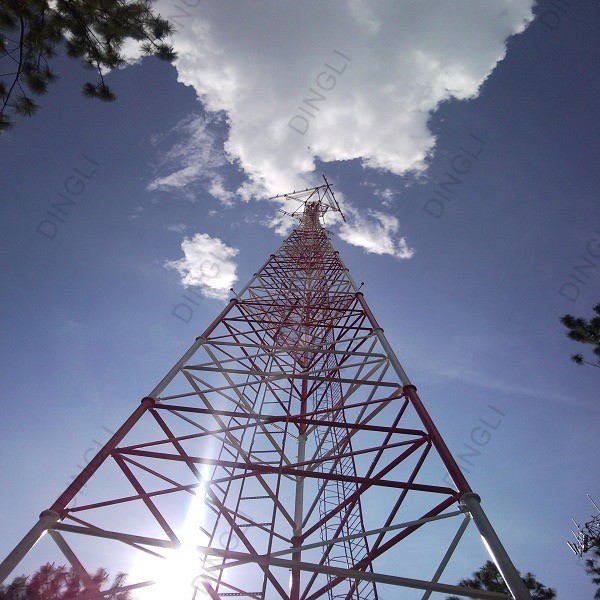

High Quality Telecommunication Tubular Hot-Dip Galvanized Steel Tower



                 Telecommunication Tower- Goods description and major parameters

No.	Description	Detailed Specification and Major design Parameters
1	Design Code	ANSI/TIA222G, European Standard and others
2	Design Loading	1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4	Structure Classification	II
5	Hot-dip galvanization	ISO 1461 2009, ASTM A123
6	Steel Grade	1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7	Bolts and Nuts	Mainly ISO 898 grade 6.8 and 8.8 bolts
8	Foundation	50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9	Tower Type	1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles
10	Warranty	1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years
11	Return Period	50 Years
12	Accessories	1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients

Our Workshop:

Before put into production, all the material must pass the chemical and physical analysis to make sure that

they have met the requested strength and component. we have more than 15 inspection procedures from

incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee

the quantity.



Competitive Advantage:



Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained

and professional engineers and staff.

4.Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure

our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be

available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an

excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD

and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid

the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project

delivers as specified. What’s more, he/she communicates with you every step of the way.
