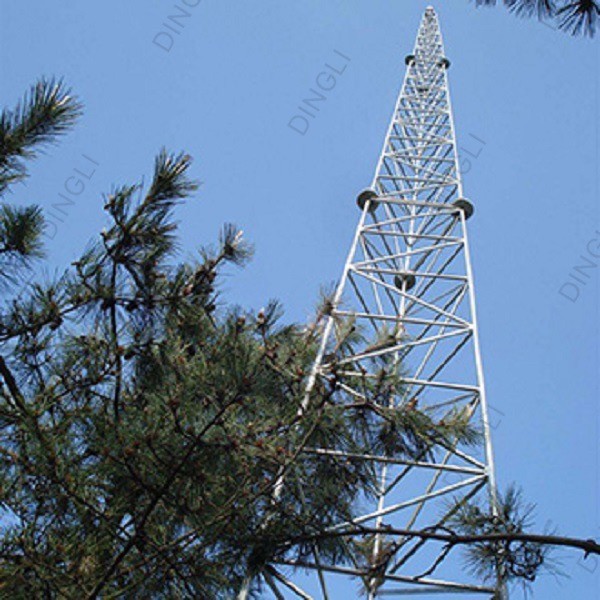

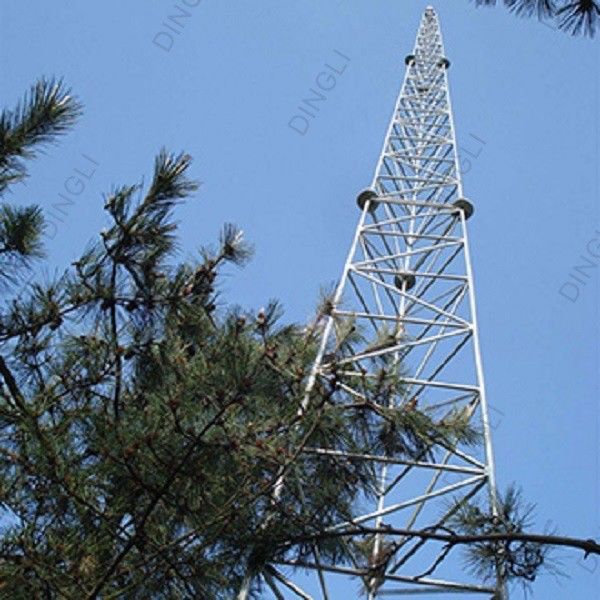

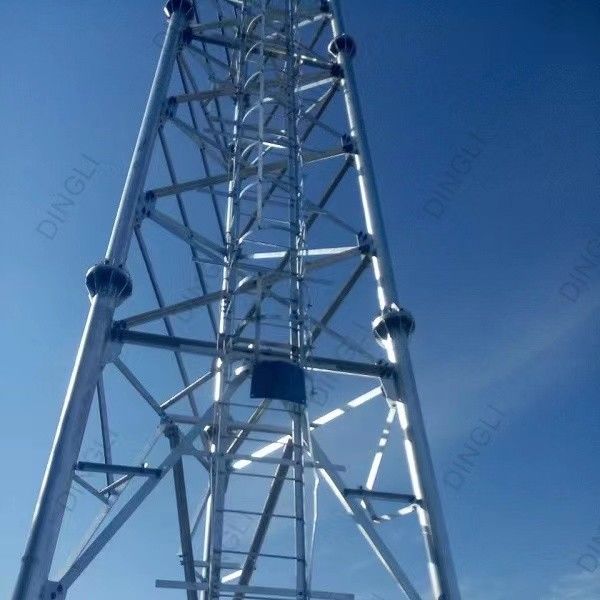

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 50000 Ton/Tons per Year
Brand Name: DINGLI

Detail Information

Place Of Origin: China Certification: ISO9001:2008/TL9000
Model Number: Tubular Tower 001 Material: Q345/Q235
Height: 0-120m Surface Treatment: Hot Dip Galvanized
Color: Customize Type: Three Tubular/ Four Tubular
Connection Structure: Bolt/nut Design Standard Code: American ANSI/TIA-222-G
High Light:

Q235 3 Leg Self Supporting Tower

,

60m 3 Leg Self Supporting Tower

,

Q235 60m Tubular Antenna Tower

Product Description

High Quality Self-Support Steel 4- Tubular 3-Tubular Antenna Tower



Quick Details
Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 0

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 1

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 2

Height 0-120m
Wind pressure 0~1kN/m2 (Chinese standard, other country's standard may change based on it)
Wind speed 0~200km/h (American standard 3s gust)
Foundation type Independent foundation/Raft foundation/Pile foundation
Environment condition Soft ground/Mountain groud
Type Three tubular/four tubular
Quality system ISO 9001:2008/TL9000
Design standard Chinese relative regulation/American standard G/American standard F
Material Q345/Q235
Galvanized Hot dip galvanization (86μm/65μm)
Connection structure Flange
Lifetime 30years/50years/100years

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 3

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 4

Our Workshop:

Before put into production, all the material must pass the chemical and physical analysis to make sure that

they have met the requested strength and component. we have more than 15 inspection procedures from

incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee

the quantity.

Galvanized Steel Tubular Substation Structure Transmission Tower



Competitive Advantage:



Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained

and professional engineers and staff.

4.Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure

our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be

available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an

excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD

and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid

the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project

delivers as specified. What’s more, he/she communicates with you every step of the way.



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50

years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering

survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and

so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and

made an outstanding contribution to UHV transmission lines of China.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 6

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and

construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,

Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more

than 30% of the company's main revenue. We have provided high-quality products and services to more than 100

customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical

support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

To improve the products’ quality and provide superior service for our customers, DINGLI has started using new

Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA,

which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental

protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization,

which can meet ASTM standard, EN standard, GB standard under the computer control system.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 7

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 8

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.



Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 9

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers are

local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the

weight, and avoid the replacement on the profiles to save the working time.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 10

Delivery Site of Client



Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 11

4. Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 12



5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 13

6. International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be completed

in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to

protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing better

to avoid the missing parts problem.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 14



7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and

found ways to solve it together. They set a high value on this cooperation.

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 15

8. Customers and Partners of Dingli

Steel 3 Leg Self Supporting Tower 4 leg Tubular Antenna Tower 16
