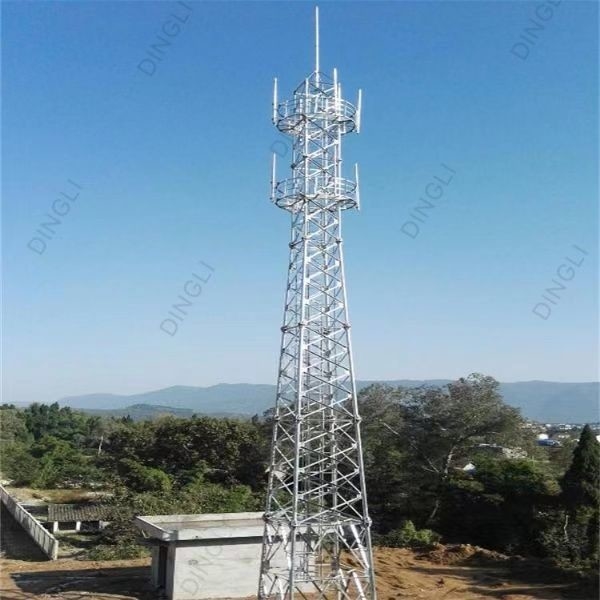

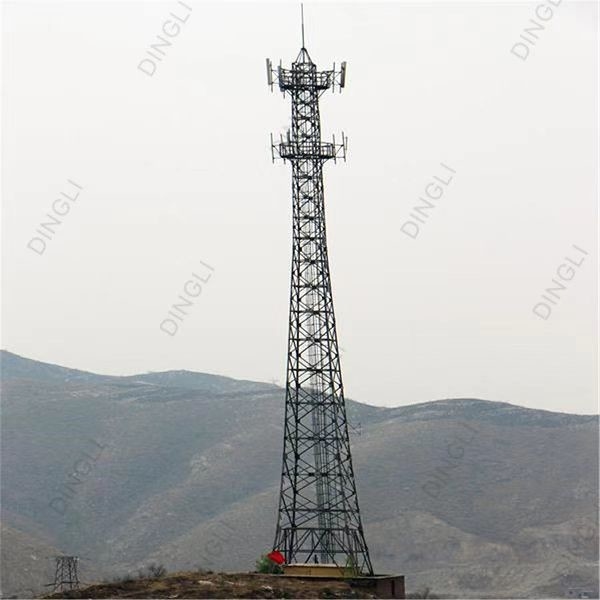

Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 50 Ton/Tons per Day
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: DLTC-5

Detail Information

Material: Steel Q355/Q255 Model Number: DLTC-5
Type: Telecommunication Tower Place Of Origin: China
Surface Treatment: Hot Dip Galvanised Height: 3M, 6M, 9M, 10.5M, 12M, 15M,18M, 21M, 36M, 42M, 45M, Etc.
Color: Customized Sertification: ISO9001
Wind Speed: 120KM/H Suit For: Electric Power Transmission And Distribution
High Light:

Telecommunication Steel Lattice Tower

,

Galvanized Tubular Steel Lattice Tower

,

Q255 Steel Lattice Tower

Product Description

Self Supporting Telecom Communication Hot Dip Galvanized Tubular Steel Lattice Tower

Quick Detail:

Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 0
Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 1

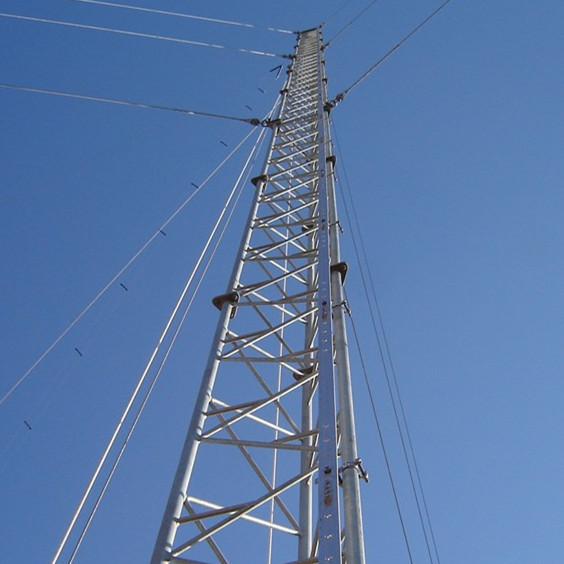

Guyed Tower

Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire. Guyed tower is a common type of communication tower which is economical and practical. It is lighter and cheaper than the others. It is very suitable for

the geographical wide areas.

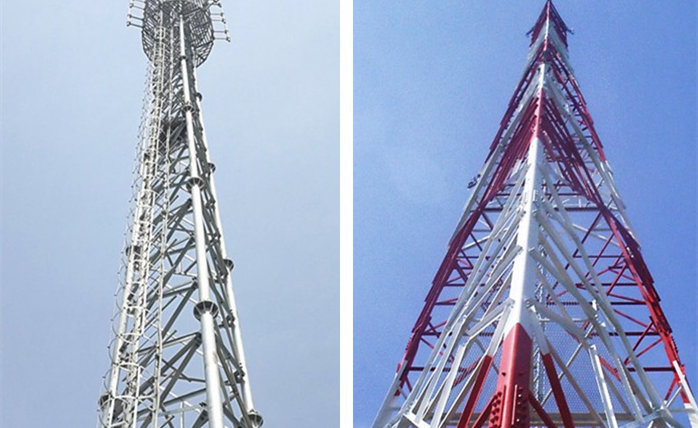

Self Supporting Tower

self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.

Features:

1.strong wind resistance.Small coefficient of wind load,

2.Save land resource, convenient location.

3.Convenient transportation and installation.

Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 2
Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 3

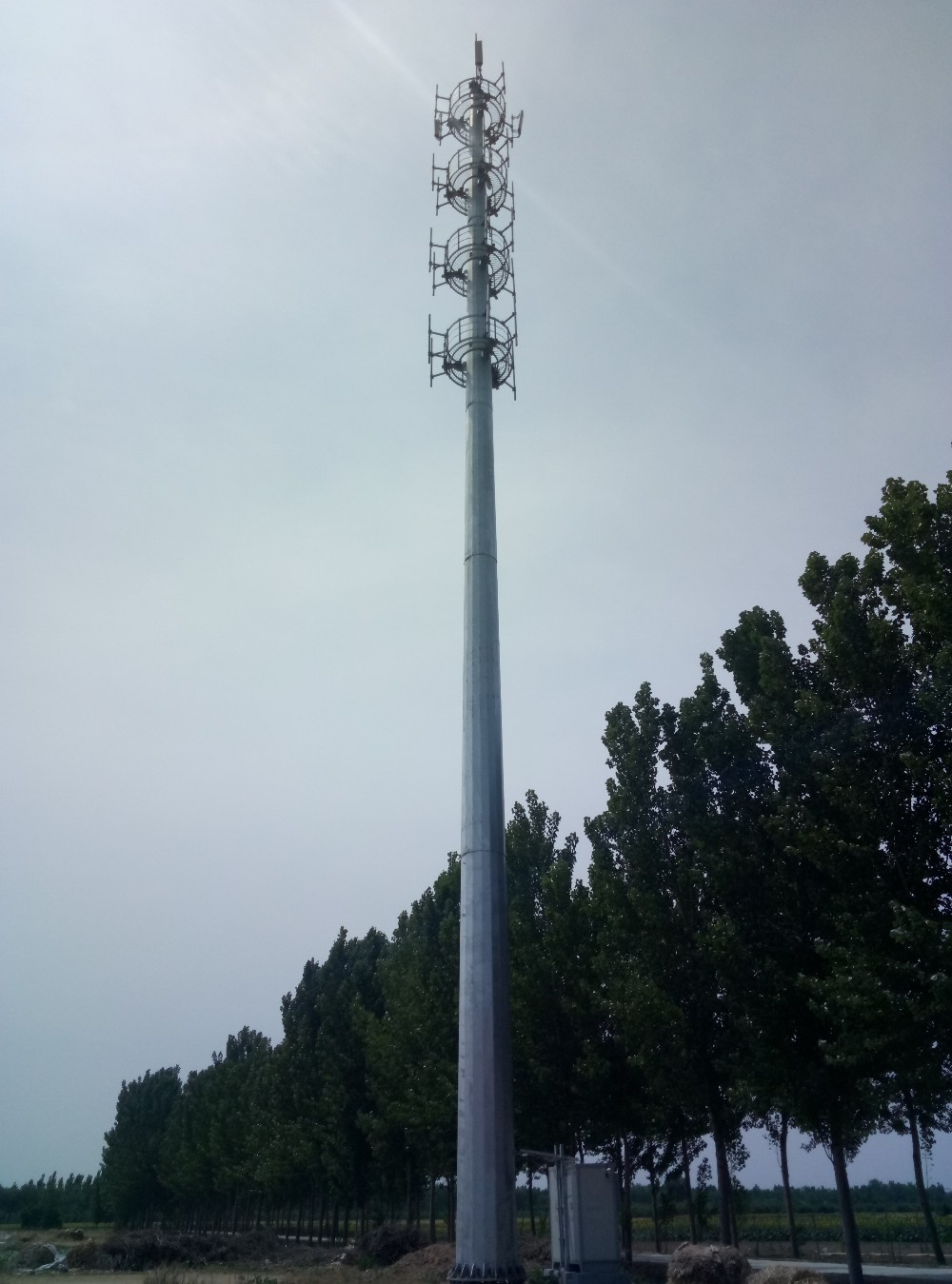

Monopole tower
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.

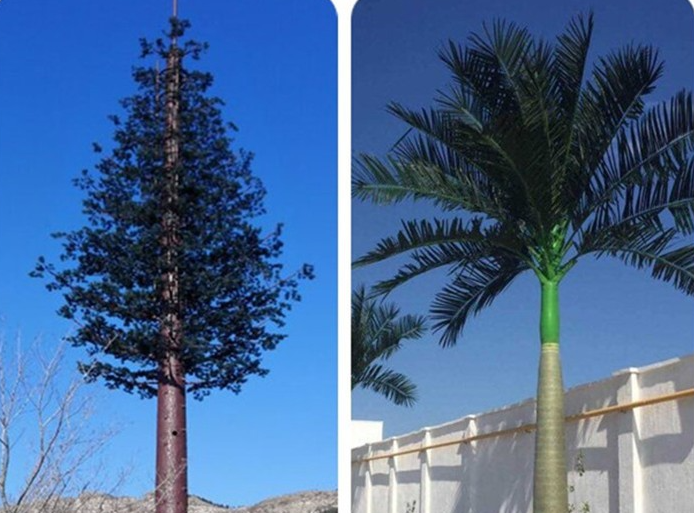

Camouflaged Tree Tower

Camouflaged Tree Tower is also a kind of cartificial trees of Bionic tree tower, on base like a real one, plus the meticulous design, when placed among the real trees in sightseeing area, park and square, it will be a part of the nature.
Features:
1. Exquisite structure, gorgeous appearance.
2. Strong structural stability, long working life.
3. Small area covering, great economic effect.

Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 4
Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 5



Height

From 10M-100M or according to client’s requirement

Suit for

Electric Power Transmission and Distribution

Shape

According to client’s requirement



Material

Normally Q235B/A36,Yeild Strength≥235MPa

Q345B/A572,Yeild Strength≥345MPa

Tolerance of the dimension

According to client’s requirement

Surface treatment

Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement

Joint of Poles

Slip joint, flanged connected

Standard

ISO9001:2008

Length of per section

Within 13M once forming

Welding Standard

AWS(American Welding Society)D 1.1

Production Process

Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-

sample assemble-surface clean-galvanization-recalibration-packing

Packages

Packing with plastic paper or according to client’s requirement

Life Period

More than 30 years, according to installing environment

Competitive Advantage:
Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
4. Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure
our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.
7. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
and staff.
8. Special discount and protection of sales are provided to our distributor.
9. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20
years, competitive with good quantity.
Service
Experienced senior engineers and technical staff keeping on learning can help perform design accurately and
timely and ensure quality, reliability and innovation of products. With the help of the latest advanced design
software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes meeting
complex landform and environment, so as to meet various needs of customers.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company
be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis
of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other
CAD and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant
and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.
The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and
avoid the replacement on the profiles to save the working time.
Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your
project delivers as specified. What’s more, he/she communicates with you every step of the way.


Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 6
International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
After-Sale Service
Technical Support
Technical support on pre-sales stage.



DINGLI has own survey and engineering company with more than
100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 7
Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,
Ecuador, Senegal, which will make a fast response for customer.
Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 8
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production
line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with
common use spare parts.
Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 9
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical
consultant and design service within our scope of work. For Quito tower design center, most of the engineers
are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce
the weight, and avoid the replacement on the profiles to save the working time.
Package
Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoid the
damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of
40HC or OT an be calculated calculation base on the client actually specification and data.

Hot Dip Galvanized Tubular Steel Lattice Tower Self Supporting 10
