4 Legged Lattice Steel Towers Quadrilateral Angular Transmission Lattice Tower

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Brand Name: China Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel
Model Number: DINGLI

Detail Information

Material: Q235B/A36,ASTM A572 GR65, GR50, SS400 Available Height: 5-100M
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Certificates: ISO9001-2008 Feature: Durable Structure
High Light:

steel lattice tower

,

lattice transmission tower

Product Description

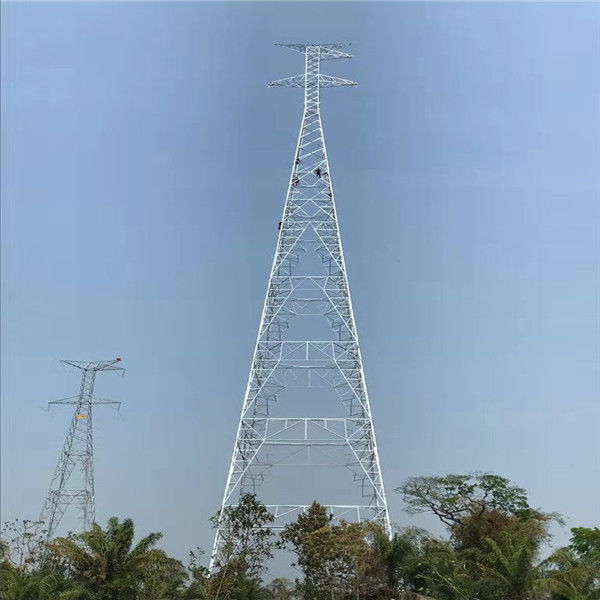

4 Legged Lattice Steel Towers Quadrilateral Angular Transmission Lattice Tower

Quick Detail:

Lattice towers are the workhorse of the world’s electric grid.

As a factory, we can assure you of top quality, quick delivery and competitive price.

Description:

Lattice tower for transmission line: Lattice towers manufactured by the Company are featured in large air flux,

high plate efficiency, simple and durable structure, convenience in processing and manufacturing and good rigidity.

Applications:

Lattice towers are the workhorse of the world’s electric grid.

The design, manufacture, installation, maintenance and quality inspection of power towers are important

guarantees for the operation and development of modern power systems.

Specifications:
For production, the Company processes and manufactures raw materials and finished products in strict

accordance with domestic standards such as Specification of Manufacturing for Transmission Line Tower

(GB/T 2694), Cold Forging Hot Dip Galvanizing Bolt and Nut for Tower and Hardware of Transmission Lines

(DL/T 764.4-2002) and Code for Construction and Acceptance of 110-500kV Overhead Transmission Line

(GB50233-2005) and American standards such as ASTM A36, ASTM A572 and ASTM A588, Galvanized

according to ASTM A123,so as to ensure products meet customer’s needs.



1. Electric Power tower voltage grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV

Application Electric Power Transmission and Distribution
Type Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

Power Capacity 10~550KV
Welding

Welding complies with AWS D1.1 standard.

CO2 welding or submerged arc auto methods

No fissure, scar, overlap, layer or other defects

Internal and external welding makes the pole more beautiful in shape

If customers need any other requirements of welding, we also can make adjustment as your request

Galvanization Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required.
Joint Joint with insert mode, flange mode.
Painting According to clients' request



Life Period

More than 25 years, it is according to installing environment



Certificates

ISO9001-2008 , Test report of 220kV Steel Tubular Tower & Transmission Line Tower 500kV, Certificate of Conformity of Factory Production Control from LIoyd’s Register, etc



Competitive Advantage:

Before put into production, all the material must pass the chemical and physical analysis to make sure that

they have met the requested strength and component. we have more than 15 inspection procedures from

incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee

the quantity.

Through continuous technological innovation and fine service,for customers to provide optimal solution to

maximize cost savings, to 'customer demand is the first starting point the purpose of serving is the difference

in the same business.

The advanced management system of the Company ensures the furthest optimization of internal resources and

information, so as to shorten the time for internal information transfer, internal designing, setting out, drawing,

prototype design, testing, manufacturing and supplying and propose an optimized solution in the shortest time

to solve problems from the customer.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and

avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project

delivers as specified. What’s more, he/she communicates with you every step of the way.

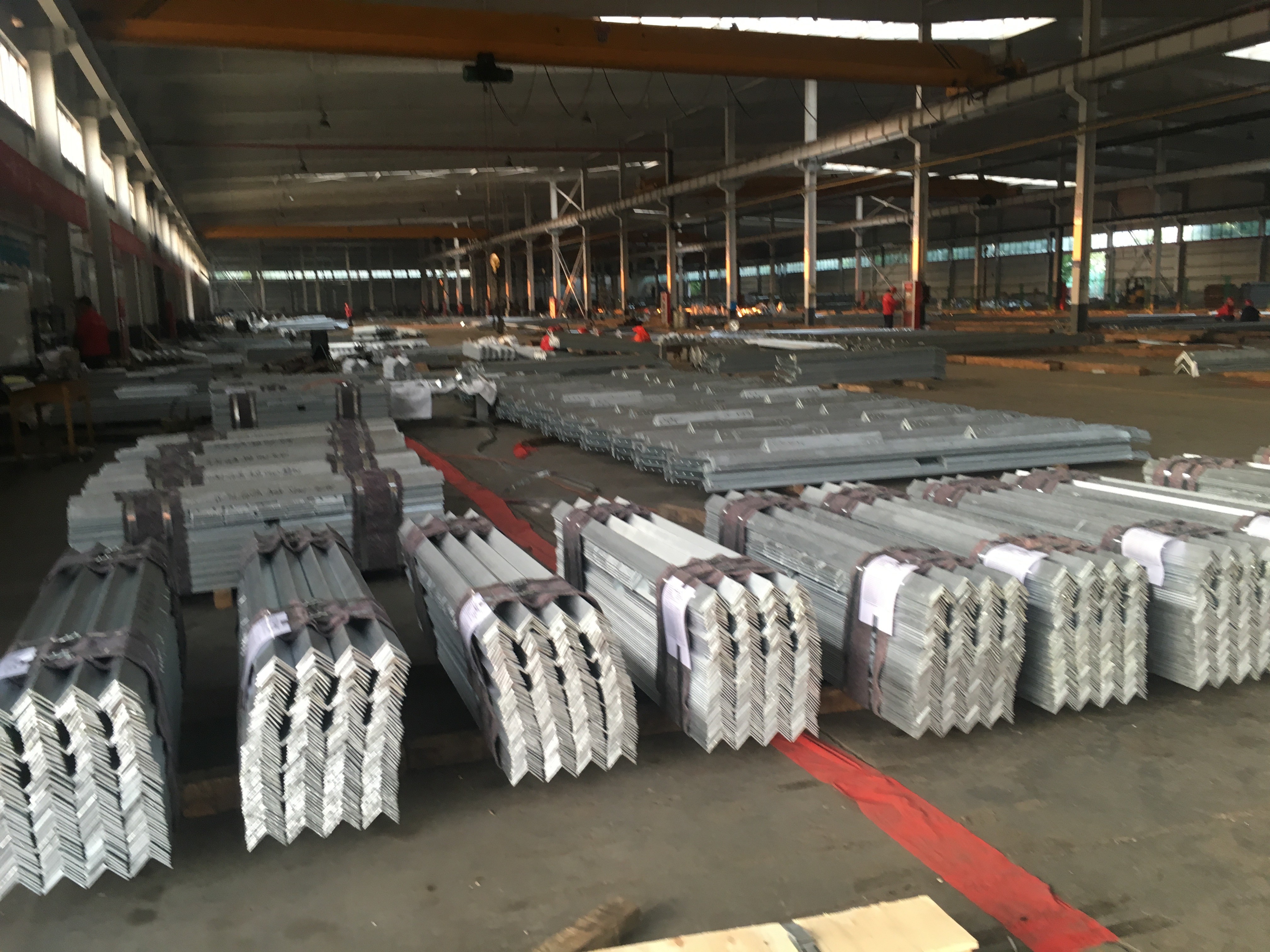

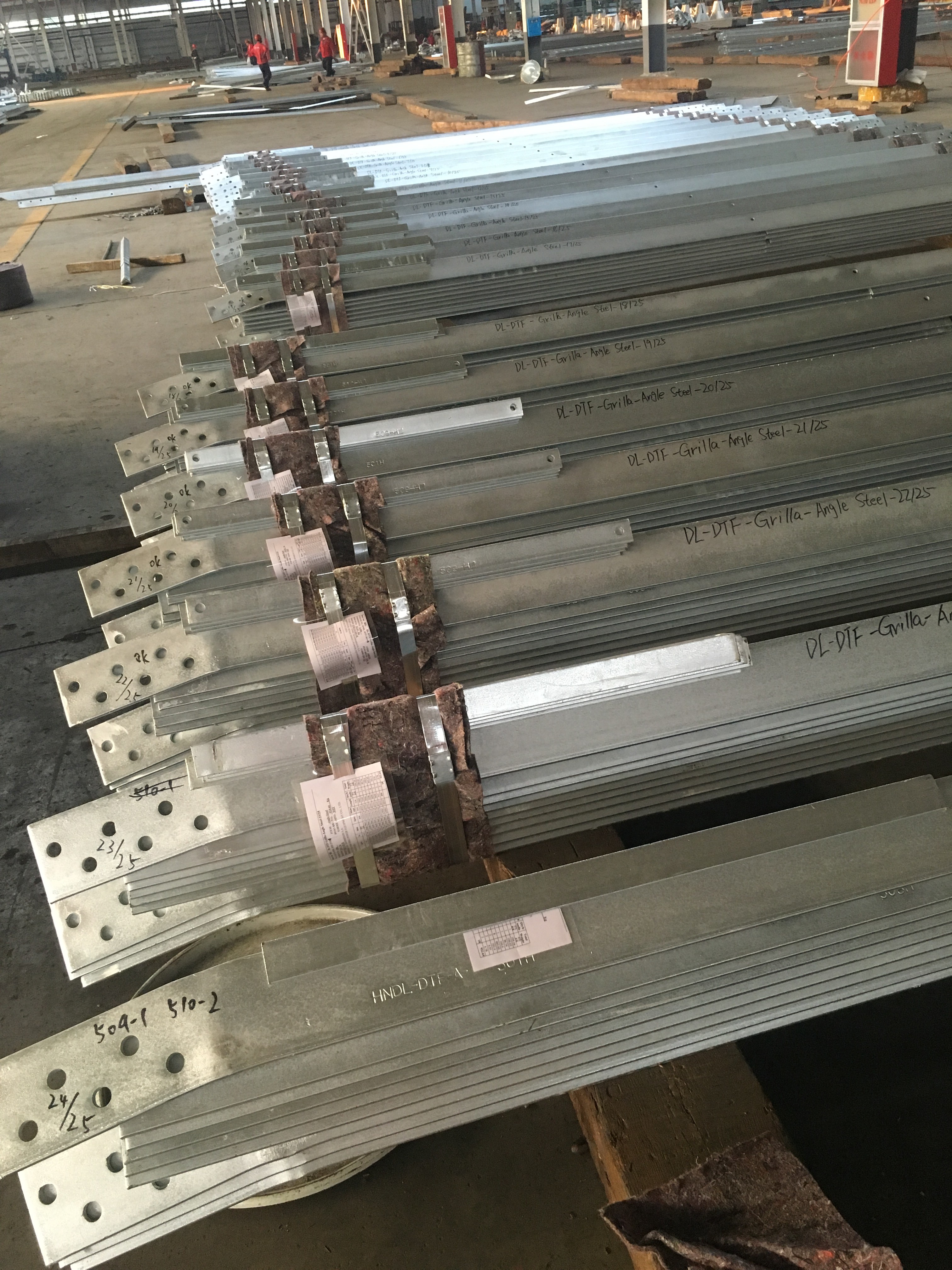

 Package

International Package Method suitable for long distance delivery.

4 Legged Lattice Steel Towers Quadrilateral Angular Transmission Lattice Tower 0

Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.

4 Legged Lattice Steel Towers Quadrilateral Angular Transmission Lattice Tower 1
