Transmission Line Steel Tubular Tower Clear Force Transmission Simple Structure

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel

Detail Information

Material: All Types,GB/ASTM/JIS/EN. Type: Steel Tubular Tower
Surface Coating: Hot Dip Galvanization Or Painting Voltage Grade: 10-750KV
Height: 0-200m Use: Transmission Line
High Light:

steel tube tower

,

microwave transmission tower

Product Description

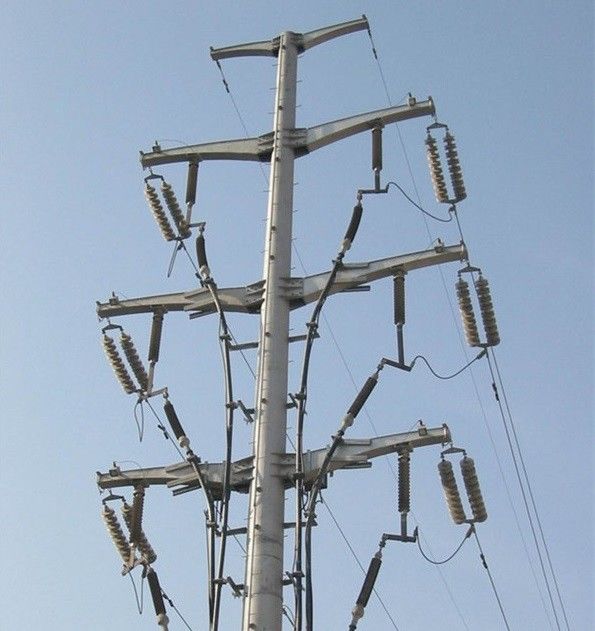

Transmission Line Steel Tubular Tower Clear Force Transmission Simple Structure



Quick Detail:

Transmission line steel tubular tower



The steel tube tower structure has relative technical and economic advantages, and is suitable for transmission towers that bear large loads.



Applications:



In China, steel pipe profiles have also been used in 500kV double-circuit towers and four-pass towers on the same tower, showing its good performance and benefits. The steel pipe tower structure has been well developed in lines with different voltage levels due to its outstanding cross-section stiffness, good cross-section force characteristics, simple force, and beautiful appearance. Especially in large-span structures and urban power grid tower structures.



Specifications:

Height 0-200m
Wind pressure 0~1kN/m2 (Chinese standard, other country's standard may change based on it)
Wind speed 0~220km/h (American standard 3s gust)
Foundation type Independent foundation/Raft foundation/Pile foundation
Environment condition Soft ground/Mountain groud
Type Three tubular/four tubular
Quality system ISO 9001:2008/TL9000
Design standard Chinese relative regulation/American standard G/American standard F
Material chinese materials standard Q345/Q235/Q355/Q420
Galvanized Hot dip galvanization (86μm/65μm)
Connection structure Flange
Lifetime 30years/50years/100years





Steel tube tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.



Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple structure, and clear force transmission, which can give full play to the material's bearing performance. On the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand, it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure body shape coefficient can significantly reduce the wind load on the tower body.





Voltage: Power transmission equipment/electric transmission line Angle Iron tower  steel tubular tower

Voltage grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV
