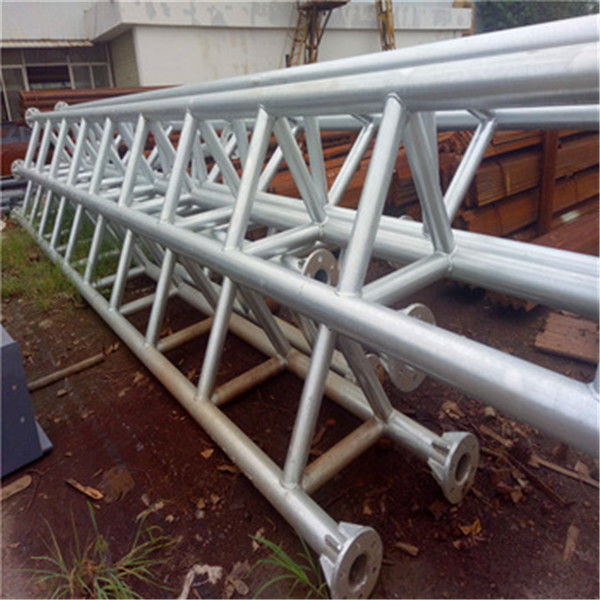

Galvanised Steel Tubular Tower 25m Lattice Telecom Mast ASTM JIS EN Material

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel

Detail Information

Material: ASTM/JIS/EN. Type: Telecom Mast
Surface Coating: Hot Dip Galvanization Or Painting Voltage Grade: 10KV - 750KV
Galvanization: Hot Dip Galvanization Painting: According To Clients' Request
High Light:

steel tube tower

,

telecommunication mast

Product Description

Galvanised Steel Tubular Tower 25m Lattice Telecom Mast ASTM JIS EN Material

Quick Detail:

Galvanised steel mast Galvanized  lattice tower tubular telecom tower

The steel tubular tower structure has relative technical and economic advantages, and is suitable for '

transmission towers that bear large loads.



Applications:

Specifications:

Galvanised steel mast Galvanized lattice tower tubular telecom tower

Height 0-200 meters
Wind speed 0-320 km/hr (3s gust)
Foundation type Independent foundation/Raft foundation/Pile foundation
Geological condition Soft ground/ Mountain ground/ Other
Shape Triangular / Square
Connection type Bolts/Nut
Design code ANSI/TIA-EIA-222-G
Material grade Q235/345
Deflection <1/1000 or as client's requirement
Design load As per client's requirement
Design life 30/50/100 years
Quality system ISO 9001:2008



Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station

flange processing system has significantly improved the precision of geometric tolerance for each work piece.

Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national

quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line

cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is

capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC

stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line

can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production

capacity and product quality.

Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple

structure, and clear force transmission, which can give full play to the material's bearing performance. On

the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand,

it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and

stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure

body shape coefficient can significantly reduce the wind load on the tower body.

Voltage: Power transmission equipment/electric transmission line Angle Iron tower  steel tubular tower

Voltage grade:35KV/66KV/110KV/220KV/330KV/500KV/750KV/800KV/1000KV

Production Process25m lattice tower tubular telecom tower

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and

confirm all shop drawings, technical specification, and which standard to conform. Before mass production,

we must received all signed approved shop drawings and technical documents from our client.

Galvanised Steel Tubular Tower 25m Lattice Telecom Mast ASTM JIS EN Material 0

Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and approved by

the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.

Galvanised Steel Tubular Tower 25m Lattice Telecom Mast ASTM JIS EN Material 1

Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained

and professional engineers and staff.

4.Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure

our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company

be available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis

of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other

CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your

project delivers as specified. What’s more, he/she communicates with you every step of the way.
