Triangle Self Supporting Antenna Tower Signal Transmission Guyed Wire Tower



Quick Detail:

Triangle hot-dip galvanized high-quality telecom guyed wire tower

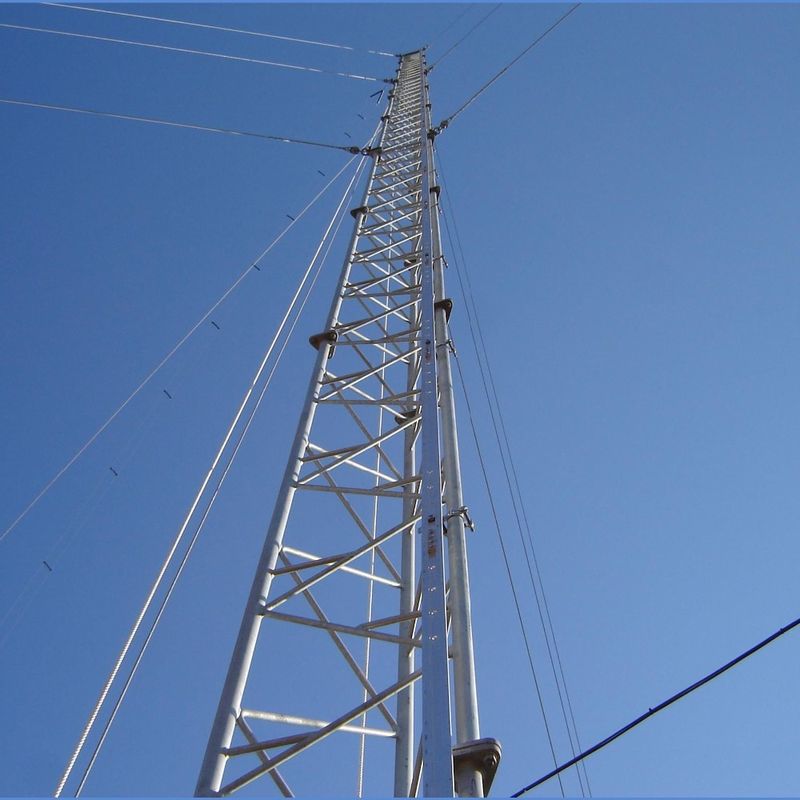

Triangle hot-dip galvanized high-quality telecom guyed wire toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.



Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.



Design

Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete

conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutinyto deliver what you need.

Triangle Self Supporting Antenna Tower Signal Transmission Guyed Wire Tower 0



Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.



Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily



Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.





Triangle Self Supporting Antenna Tower Signal Transmission Guyed Wire Tower 1



Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and approved by the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.




Triangle Self Supporting Antenna Tower Signal Transmission Guyed Wire Tower 2



Proto-Assembly:

For every new type, our factory will do proto-assembly before mass production to ensuere the safety and quality of product for client.

Triangle Self Supporting Antenna Tower Signal Transmission Guyed Wire Tower 3
