Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved



Quick Detail:

Monopole cell tower telecom tower



monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.

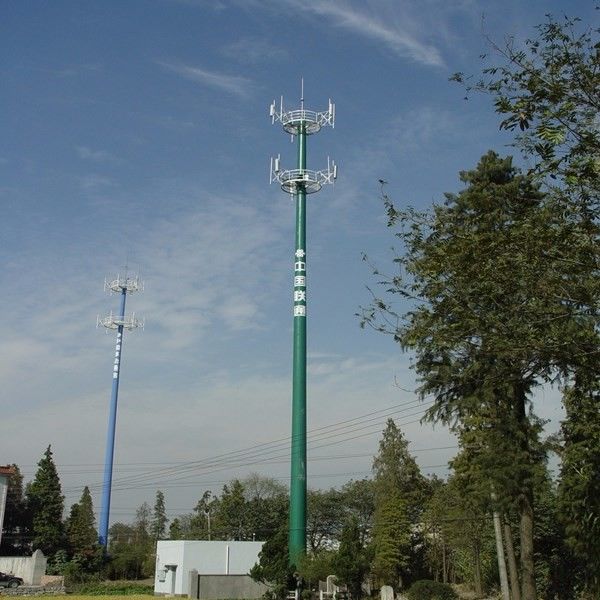

TELECOM MONOPOLE



Detailed Product description as follows :

1. Circle /Polygonal

2. Slip joint/Flange Joint

3. Hot Dip Galvanization (ASTM123)

4. ISO9001 / ISO14001 certificate

5. Slip joints result in easy field assembly and erection

6. Painting Optional: according to customer's requirements

7. Design standard: TIA/EIA-222-G/F

8. Design software: MS TOWER



Products Features:

Available Height:10m-60M

Wind Pressure:50KM/H-280 KM/H

Material:main shaft :Q345B/S355JR/ASTM572;Spare parts:Q235B/S235JR/ASTM A36

Anchor bolts:grade 8.8 hot-dipped zinc galvanization

Zinc thickness: minimum 100um for main structure

Vivid appearance,less space,easy to install

Structure:Slip joint/Flange Joint

Lifetime:main shaft and steel parts more than 30 years

Delivery Lead Time: 35 Days after we receive deposit or LC

Antenna Loading Quantity Range:3-18 PCS

Microwave Dish loading Quantity Range :3-18 PCS

Working &Resting Platform Quantity Range:1-3 PCS

Concealed mounts available

Cable and Ladder: can be assembled by customer's request

Typically assembled and erected within a matter of hours

May be fitted with various combinations of feedline entry, feedline exit, and personal access ports

Cable line:supported on internal J-hooks

Earthing Cable and earthing bar : according to customer's request,generally our offer not including this part

Complete line of antenna mounts and accessories available

Provided with step bolts and cable-type safety climb system

Normal camouflaged pine tree tower including : lightning rod ,antenna support ,microwave suppport ,platform ,main section shaft,connection bolts ,anchor bolts ,templates ,internal/external ladder ,cable tray and etc

Aviation light: we can make it if customer request



Our Services

Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project

management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide

fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries

Association,China Standard, American National Standards Institute, Uniform Building Code, and others).



 Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.



Design

Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete

conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.



MONOPOLE GA DESIGN FOR REFERENCE:



Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 0



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutinyto deliver what you need.

Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 1



Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.



Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily



Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.





Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 2



Our Fabrication shall be in strict accordance with detail Drawings prepared by the Contractor and approved by the Engineer. Fabrication shall begin after the approval of the shop assembly and tests.




Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 3



Proto-Assembly:

For every new type, our factory will do proto-assembly before mass production to ensuere the safety and quality of product for client.



Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 4





1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 5



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



We can design and produce all kinds Communication Tower, Electric Transmission Steel poles, Substation structures, Microwave Steel Tower and technical decoration tower etc. we produce light-weight and heavy steel structures, steel space frame structures, steel-structure bridges, tower-and-mast steel towers and specially precise steel structures. Our company has a full-scale concept and system for quality assurance, include ISO 9001:2008 Quality Management System Certification and other Certification.



To improve the products’ quality and provide superior service for our customers, DINGLI has started using new Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA, which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization, which can meet ASTM standard, EN standard, GB standard under the computer control system.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.





3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 6



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.



Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 7

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 8



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 9





Delivery Site of Client



Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 10









Packaging, marking, storage and transportation
1. Before packaging, the galvanized vent hole shall be sealed, and the aging resistant rubber plug and aging resistant plastic plug shall be used for sealing.
2. The packaging shall be firm to ensure that the product will not be damaged under normal transportation conditions, and avoid mutual friction between components, components and packages, and damage to the galvanized layer.
3. All components shall be marked with component number, which shall be clearly marked before delivery.
4. The finished components shall be stored according to the single base, and pay attention to the deformation of components during placement.
5. Before the product is shipped, the packaged finished products within a contract number shall be sampled for inspection as an inspection lot, and the steel quality, parts, component size, weld quality and zinc layer quality shall be inspected. According to the judgment principle, if the class a item is not found, the batch of products shall be judged as qualified and approved to leave the factory. B If one of the items is greater than or equal to the number of nonconformities (RE), the product will be judged as nonconformity, the shipment will be stopped, the rectification will be carried out, and the spot check will be carried out after the rectification, and the shipment can only be carried out after the requirements are met.



Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved 11
