Zinc Oxide Voltage Lightning Arrester 35kv Over And Under Voltage Protection

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 5000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: FXB-0691217

Detail Information

Material: Polymer/Silicon Rubber+zinc-oxide Type: Distribution Type Lightning Arrester
Model Number: BWKP-35 Certification: ISO9001/CE/ROHS
Application: Electricity Distribution Rated Voltage: 35KV
High Light:

metal oxide lightning arrester

,

zinc oxide lightning arrester

Product Description

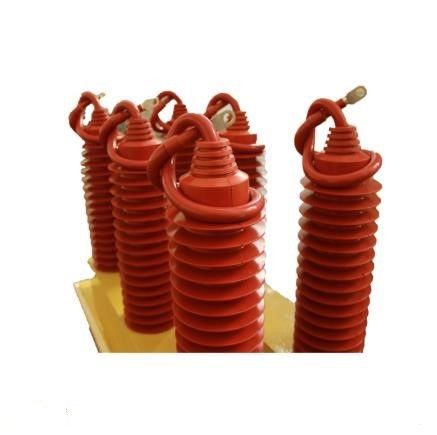

Zinc Oxide Voltage Lightning Arrester 35kv Over And Under Voltage Protection

Quick Detail:

36kV 5kA Distribution Types of Lightning Arrester

Product Description:

1. Use and Characteristics
This product is a gapless series protector, mainly for the protection of 35KV and below high voltage motors, transformers, shunt compensation capacitors, switches, cables, electric furnaces, power station distribution equipment, rectifier equipment, generators, electrolyzers and other electrical equipment. Relatively insulated from operating overvoltage and atmospheric overvoltage damage, it can effectively limit the amplitude of overvoltage to the insulation resistance level of electrical equipment, protect the insulation of electrical equipment, and maintain the safe operation of electrical equipment. Although the traditional lightning arrester can limit the overvoltage, it can only achieve phase-to-phase protection between the phase and ground of the electrical equipment. The overvoltage protection between the two phases is through the series connection of two arresters, and the residual voltage is higher than the relative voltage. 1 times, it is not conducive to the phase insulation protection of electrical equipment; and the company's production series products are combined, which can effectively achieve the relative insulation protection and phase insulation protection of electrical equipment, which can effectively limit the operating overvoltage and atmospheric overvoltage. This product adopts zinc oxide varistor with excellent performance. It has large flow capacity of 2ms, excellent volt-ampere characteristics, small residual voltage ratio, high resistance to 4/10us high current impact level, suitable operating voltage and reliable.

The BWKP series protector produced by our company fully meets GB11032-2000 "AC gapless oxide arrester", JB/T9672.2-1999 "AC system with series gap metal oxide arrester" and DC/T620 "AC electrical device" Voltage protector and insulation match the requirements of the standard.

The BWKP series protectors produced by our company all adopt double sealing process structure. The outer shells of the protector are all made of synthetic silicone rubber jacket. The external connection is led by high-voltage insulated silicon rubber cable. All products are fully insulated and closed. No metal exposure outside the nose; flame retardant, explosion-proof.

3. Main technical parameters of overvoltage protector

Item No.
Type of protector
Mode of connection
System rated voltage (KVRms)
Continuous operating voltage (KVRms)
Square wave flow capacity (A)
High current impulse withstand (kA)
BWKP-A-6.3KV
Motor
Phase-Phase
6
7.6
400
65
Phase-Ground
BWKP-A-10KV
Phase-Phase
10
12.7
400
65
Phase-Ground
BWKP-B-6.3KV
Generator
Phase-Phase
6
7.6
400
65
Phase-Ground
BWKP-B-10KV
Phase-Phase
10
12.7
400
65
Phase-Ground
BWKP-B-35KV
Phase-Phase
35
42
500
65
Phase-Ground
BWKP-C-6.3KV
Capacitor
Phase-Phase
6
7.6
500
65
Phase-Ground
BWKP-C-10KV
Phase-Phase
10
12.7
500
65
Phase-Ground
BWKP-C-35KV
Phase-Phase
35
42
500
65
Phase-Ground

4.Motor neutral point overvoltage protector
Item No.
Continuous operating voltage (KVRms)
Effective value of rated voltage of motor (KV)
Lightning impulse current residual voltage≤(KV)
DC 1mA reference voltage ≥ (KV)
BWKP-O-2.13
2.13
3.15
6.0
3.4
BWKP-O-4.6
4.6
6.3
12.0
6.9
BWKP-O-7.6
7.6
10.5
19.0
11.3



Shipping:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
