24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 3000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: 24KV/10KA

Detail Information

Place Of Origin: China Model Number: 24KV/10KA
Rated Voltage: 24kV Discharge Current: 5KA/10KA
Housing: Silicone Rubber 4/10 Us High Current Impulse: 100KA
Standard: IEC60099-4 Color: Gray
Type: Lightning Arrester Certificate: ISO9001
High Light:

Polymer High Voltage Lightning Arrester

,

24kV High Voltage Lightning Arrester

,

24kV Polymer Surge Arrester

Product Description

Hot Sale Surge Arrester Polymer High Voltage Lightning Arrestor Arresters

Product Description:



Normal operating conditions for Lightning Arrester :



1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .

2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)

3. AC system frequency is 50Hz or 60Hz.

4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation

voltage of the arrester.

5. Maximum wind speed does not exceed 35m/s.

6. Te earthquake intensity does not exceed 7 degrees.

7. The pollution area should be indicated.



Gapless Arrester Electrical Parameter

MOA Type

MOA Rated
Voltage

MCOV

Max.Residual Viltage

2ms square
wave impulse
withstand current

High current
impulse withstand
4/10μs

Steep current

impuise1/10μS

Lightning current

lmpulse 8/20μs

Switching current

lmpulse30/60μs

KV

KV

KV

KV

KV

A

KV

YH5W-24

24

19.5

82

72

62.6

150

65

YH10W-24

24

19.5

75

65

61.6

250

100

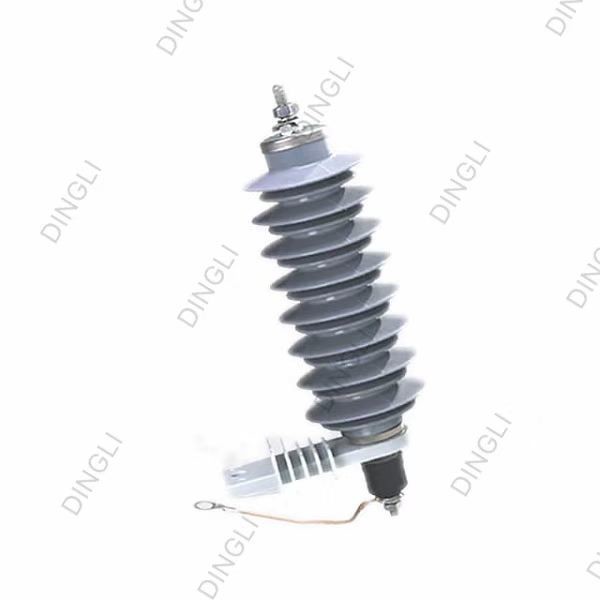

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 0

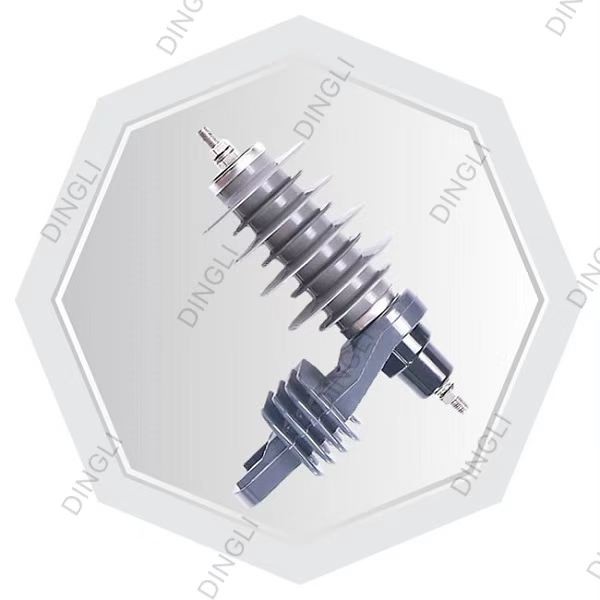

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 1

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 2

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 3

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 4

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 5

 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 6

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 7

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 8

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

24kV High Voltage Lightning Arrester Arrestor Polymer Surge Arrester 9
