High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 500 Rod/Rods per Day
Place of Origin: China Brand Name: DINGLI
Certification: ISO IEC BSI GB IEEC Model Number: YH10CX-102/298

Detail Information

Place Of Origin: China Model Number: YH10CX-102/298
Related Volatge UR: 102KV Housing Material:: Silicone Rubber
Application: Electric Power Transmission Certification: ISO IEC BSI GB IEEC
Lightning Impulse Residual Voltage: 296kV Color: Gray, Gray
Impulse Discharge Voltage: 525KV Product Name: Surge Arrester
High Light:

110KV Ese Lightning Surge Arrester

,

Lightning Surge Arrester High Voltage

,

IEC Certification Lightning Surge Arrester

Product Description

High Quality High Voltage Ese Lightning Surge Arrester 110KV



Product Description:

Product Show

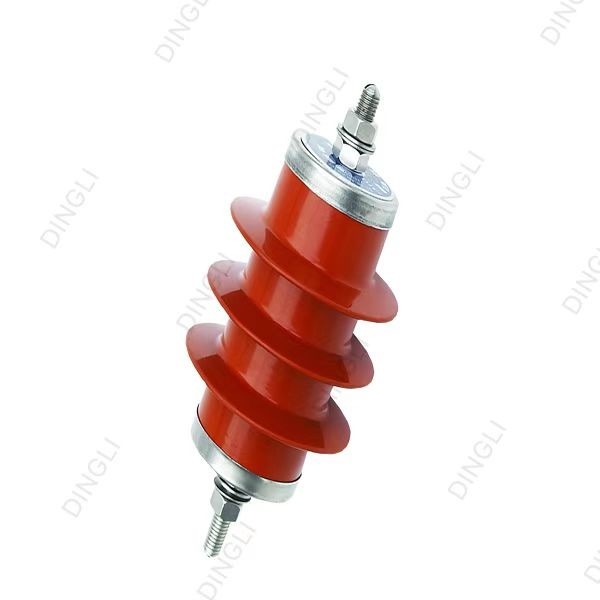

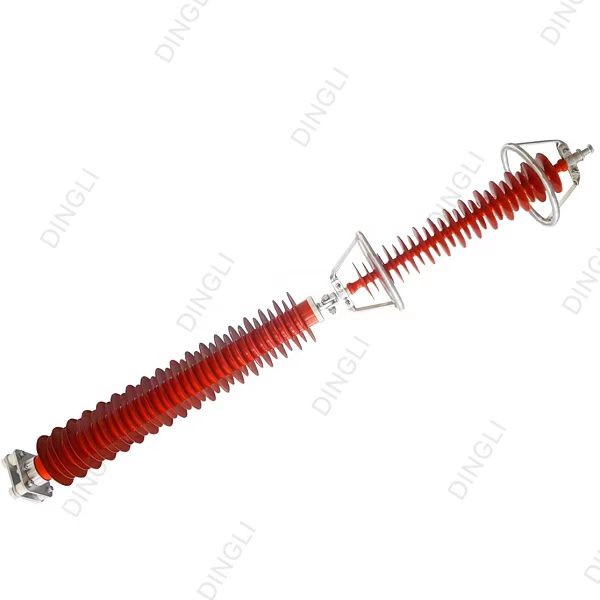

TYPE: Composite metal oxide (ZnO) arrester
STRUCTURE: The composite metal oxide arrester is mainly composed of resistors, insulating bases

and flanges
APPLICATION: Product various electrical equipment in power systems,railway electrification systems

and communicaiton
systems
ADVANTAGE: Light weight,convenient for transportation and installation,maintenance-free,especially

suitable for dirty
areas.

LIGHT WEIGHT SMALL SIZE
STURDY STRUCTURE
STRONG STAIN RESISTANCE
ELECTRIC CORROSION RESISTANCE
ANTI-AGING
GOOD EXPLOSION-PROOF PERFORMANCE
EASY OPERATION
EASY INSTALLATION AND MAINTENANCE

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 0

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 1

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 2

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 3


PRODUCT DETAIL AND ADVANTAGE
1.The resistors are manufactured with high-quality raw materials and strict processes .The comprehensive

performance of the resistors has reached China's advanced level.
2.The use of duriton encapsulating materials or epoxy composite casing fundamentally solves the problem

of product failure caused by moisture intrusion.Even in a high temperature enviroment with a humidity of more

than 90%,there will not be any failures.
3.Silicone rubber material is highly hydrophobic.it can prevent rainwater from forming continuous channels and

prevent any pollutants from accumulating during use.make the product corrosion resistant and cut off the leakage

current path.
Moreover,the flame retardant and self-extinguishing properties of the material can realize the product cleaning-free

function.
High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 4

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 5

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 6

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 7

Type

Rated Voltage UR

(kv)

Power frequency discharge voltage (KV)

1mA DC reference voltage U1mA

(KV)

Normal discharge current( KA)

Steep current impulse residual volateg(KV)

Lightning impulse residual voltage (KV)

Switch impulse residual voltage(KV)

YH10CX-102/296

102

185

148

10

331

296

525

YH10CX-108/320

108

185

160

10

358

320

525

YH10CX-192/560

192

370

280

10

628

560

900

YH10CX-204/592

204

370

296

10

662

592

900

YH10CX-288/775

288

510

408

10

817

775

1300

YH20CX-396/1050

396

567

561

20

1171

1050

1760

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 8

 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 9

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 10

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 11

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

High Voltage Ese Lightning Surge Arrester 110KV for Power Transmission 12
