11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: Surge arrester

Detail Information

Place Of Origin: China Model Number: Surge Arrester
Voltage Level: 3-220kV Brand Name: DINGLI
Application: Electric Power Transmission Certification: ISO CCC IEC
Product Name: Surge Arrester Color: Red White Or Customization
Rated Frequency: 50/60Hz Standards: ISO9001,GB
High Light:

12kv High Voltage Lightning Arrester

,

11kv High Voltage Lightning Arrester

,

11kv Polymer Surge Protector Arrester

Product Description

11kv 12kv High Voltage Metal Oxide Polymer Surge Protector Lightning Arrester

Product Description:

The zinc oxide arrester is the most advanced over-voltage protector in the world, Due to make the resistor

disc of core component mainly adopt zine oxide arrester. Compared with the conventional silicon carbide

arrester, this prescription of the product improves greatly the volt-Ampere characteristics of the resistor disc

and increased through-current capability at over-voltage so as to dring radical changes for the characteristics

of the arresters.
Under the circumstance of normal operating voltage, the current through the arrester is just on microampere

degree, When suffered from over-voltage, the arrester's excellent nonlinear characteristics will make the current

through the arrester increase to several thousand amperes, while the arrester will be under the circulating state

and release over-voltage energy so as to protect the power transmission equipment against the damage caused

by the over-voltage.

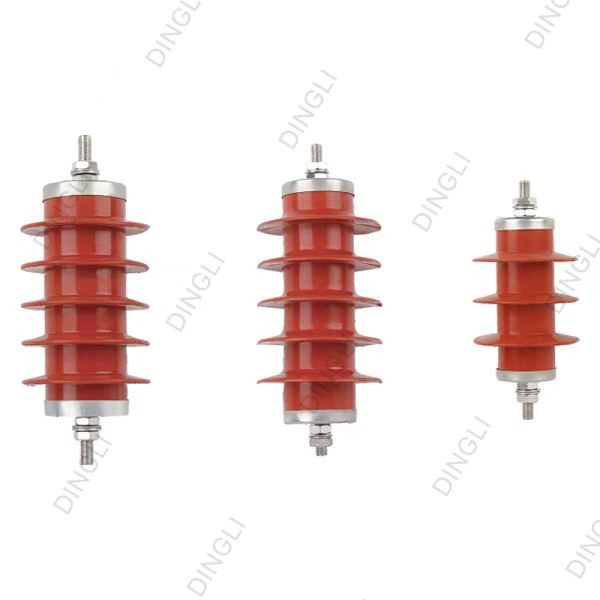

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 0

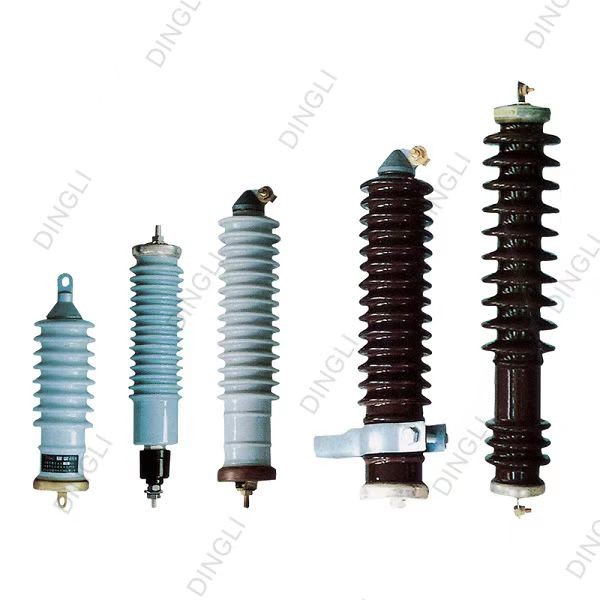

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 1

Type

System Rated voltage KV(rms)

Arrester Rated voltage KV(rms)

Continuous Rated voltage KV(rms)

DC lmA voltage (kv)

Lightning Impulse residual voltage (kv)

Steep wave Impulse residual voltage (kv)

2ms square wave Impulse current withstand (A)

HYWS -3.8/17

3

3.8

2.4

7.5

17.0

19.6

100

HYWS -7.6/30

6

7.6

4.0

15.0

30.0

34.5

100

HYWS -12.7/50

10

12.7

6.6

26.0

50.0

57.5

150

HYWS17/50

10

17

13.6

26.5

50.0

57.5

150

HYWZ-7.6/27

6

7.6

4.0

14.5

27.0

31.0

200

HYWZ-12.7/45

10

12.7

6.6

24.0

45.0

51.8

200

HYWZ-17/45

10

17

12.7

24.0

45.0

51.8

200

HYWZ-42/134

35

52

40.8

78.0

134.0

154.0

400

HY2.5WD-7.6/19

605

7.6

4.8

11.5

19.0

21.9

200,400

HY2.5WD-12.7/31

10.5

12.7

6.6

19.0

31.0

35.7

200,400

HY2.5WD-16.7/40

13.8

16.7

9.0

25.0

40.0

46.0

400

HY2.5WD-19/45

15.7

19

10.0

28.5

45.0

51.8

400

HY5WR-7.6/27

6

7.6

4.8

13.8

27.0

20.8

400

HY5WR-12.7/45

10

12.7

6.6

23.0

45.0

35.0

400

HY5WR-42/134

35

52

23.4

73.0

134.0

105.0

400































































11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 2

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 3

The ambient air temperatures are no higher than +40ºC,lower than -40ºC;

The altitude above sea level dose not exceed 1000-2000m(the plateau areas should

be indicated when order);

AC system frequency is 50Hz or 60Hz;

Power frequency voltage brought to bear on arrester for a long time does not

exceed arrester's continuous operation voltage;

Maximum wind speed does not exceed 35m/s;

The earthquake intensity does not exceed 7 degrees;

The filthy area should be given clear indication.























Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 4

 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 5

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 6

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

11kv 12kv High Voltage Lightning Arrester Metal Oxide Polymer Surge Protector Arrester 7

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.
