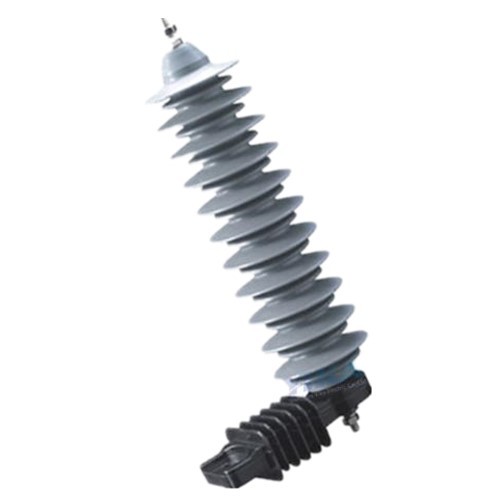

33kv Lightning Arrestor Electrical Epoxy Arrester Lightning Arrester In Substation

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000000 Piece/Pieces per Year
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: FXB-0691217

Detail Information

Model Number:: HY5W-33, HY10W-33 Certification: ISO9001/CE/ROHS
Color: Gray Standdard: IEC60099-4
Disconnector: Include Mounting Plate: Include
NEMA Bracket: Include
High Light:

metal oxide surge arrester

,

metal oxide lightning arrester

Product Description

33kv Lightning Arrestor Electrical Epoxy Arrester Lightning Arrester In Substation

Quick Detail:

33KV Surge Arrester Hy5w Lighting Arresters Electrical Epoxy Arrester

Product Description:

Specifications

Normal operating conditions for Lightning Arrester :

1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .

2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)

3. AC system frequency is 50Hz or 60Hz.

4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation voltage of the arrester.

5. Maximum wind speed does not exceed 35m/s.

6. Te earthquake intensity does not exceed 7 degrees.

7. The pollution area should be indicated.

Gapless Arrester Electrical Parameter

Type

Rated Voltage

MCOV

Max.Residual Viltage

2ms square wave impulse withstand current

High current impulse withstand 4/10μs

Steep current impuise1/4μS

Switching current lmpulse30/60μs

Nominal current lmpulse 8/20μs

kV

kV

kV

kV

kV

A

kV

HY5W-33

33

26.8

104.0

84.7

99

100

65

HY10W-33

33

26.8

104.0

84.7

99

250

100

Shipping:

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
