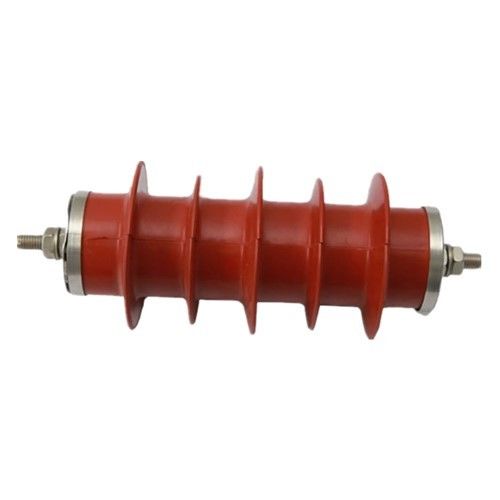

Transformer Surge Arrester High Voltage Protection Devices For Current Over Voltage

Quick Detail:

Supplies Electrical Equipment High Voltage Earthing System Lighting Arrester

Product Description:

Overview

Metal oxide arresters are the most advanced protection devices for current over-voltage. They are widely used in power generation, power transmission and distribution systems to protect the insulation of electrical equipment from overvoltage.

The organic jacket metal oxide arrester is a scientific research achievement combining the advantages of organic insulating material and traditional porcelain sleeve metal oxide arrester technology. It not only has the advantages of porcelain sleeve metal oxide arrester, but also has good electrical insulation performance and dielectric. High strength, anti-leakage, anti-corrosion, heat resistance, cold resistance, aging resistance, explosion-proof, water-repellent, good sealing performance.

Conditions of Use

A. Applicable to indoor and outdoor;

B. Ambient temperature -40 ℃ ~ + 40 ℃;

C. Altitude does not exceed l000m;

D. Power frequency is not less than 48Hz, no more than 62 Hz;

E. The working frequency voltage applied to the arrestor should not exceed the continuous operating voltage of the arrester (no gap type).

F. Earthquake intensity is 8 degrees and following areas;

G. The maximum wind speed does not exceed 35m / s.

Name: arrester 10kv 20kv 33kv lightning surge protect oxide metal polymer

Color: yellow | green | red | blue | grey
Standard: IEC60099-4
Frequency: 50/60 hz
Material: polymer/oxid-zinc + silicon rubber
Type: metal oxide arrester
Certification: iso9001
Application:Industrial
Jacket:Rubber
Conductor Material:Aluminum
Type:High Voltage
Insulation Material:Rubber

Product model description

Product type:

Y—indicating porcelain sleeve metal oxide arrester
YH(HY)—represents an organic jacket metal oxide arrester
Structural features:

W—indicating no gap

C—representing series gap
Use place:

S—indicating power distribution type

Z—representing power station type

R—representing shunt compensation capacitor
D—represents the motor T—represents the electrified railway

X—represents the line type
Additional features:

W—indicating antifouling type

G—representing high prototyping

TH—indicating wet tropics
DL—Indicating cable type lightning arrester (Advantage: The product adopts a fully sealed structure, which reduces the distance between phases and has a large creepage distance.)
Anti-fouling level:

3- indicates Class III antifouling

Main technical parameters

The power distribution type is used to protect the power distribution equipment such as switchgear, variable voltage, box type change, cable outlet head, and oil switch on the column from atmospheric and operational overvoltage.

Model

Nominal

system

voltage

Rated

voltage

Continuous

operation

voltage

DC 1mA

reference

voltage

Lightning

impulse

current

residual

Steep wave

impulse

current

residual

switching

impulse-current

residual

voltage

creepage

distance

Height
kV (Valid value) KV (peak) φ mm H mm
Y5WS-5/15 3 5 4 7.5 15 17.3 12.8 85 253
YH5WS-5/15 80 184
YH5WS-5/15DL 80 184
Y5WS-10/30 6 10 8 15 30 34.6 25.6 85 253
YH5WS-10/30 80 184
YH5WS-10/30DL 80 184
Y5WS-12/35.8 10 12 9.6 18 35.8 41.2 30.6 85 305
YH5WS-12/35.8 85 257
YH5WS-12/35.8DL 85 257
Y5WS-15/45.6 10 15 12 23 45.6 52.5 39 85 305
YH5WS-15/45.6 85 257
YH5WS-15/45.6DL 85 257
Y5WS-17/50 10 17 13.6 25 50 57.5 42.5 85 305
YH5WS-17/50 85 257
YH5WS-17/50DL 85
