Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: ZW32-12F

Detail Information

Model Number: ZN63(VS1)-12 Product Name: Vacuum Circuit Breaker
Type: Circuit Breaker Material: Hot-dip Galvanized Steel.
Ambient Temperature: - 40℃-+40℃
High Light:

high voltage circuit breaker

,

vacuum circuit breaker

Product Description

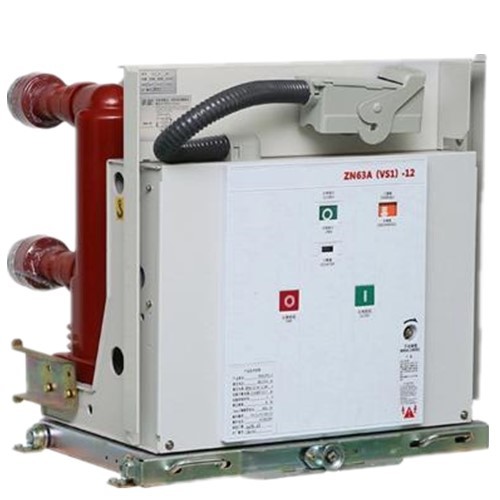

Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker

Quick Detail: Electrical 12kv High Voltage Indoor Vacuum Circuit Breaker


ZN63(VS1) indoor high-voltage alteratingcurrent vacuum circuit breaker has a frequency of 50Hz and a rated voltage of 12kV. It applies to the ecrical equipment control and protection in industial and mining enterprises, power plants and substations, priculanty to the places needing frequent operation. It can be fixed in a switch cabinet or nstalld on a handcart.

With stable performance and convenient intallation, it is the best choice for the control and protection of hig-voltage power transmission and distribution systems.

Overall dimension of VS1-12(wheeled)indoor high-voltage alternating-current vacuum circuit breaker(cabinet width:800mm)

Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker 1

Overall dimension of VS1-12(fixed)indoor high-voltage alternating-current vacuum circuit breaker(cabinet width:800mm)

Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker 2

Technical Parameter

1.1 Technical parameters

Item Unit Reference value
Rated voltage kV 12
Rated insulation level

Power frequency voltage

(when losing a circuit)

kV Breaker 42

Impulse withstand voltage

(when losing a circuit)

kV Breaker 75
Rated frequency Hz 50/60
Rated current A 630/1250/1600/2000/2500/3150/4000
Rated short-circuit breaking current KA 20,25,31.5,40
Rated short-circuit making current (peak value) KA 50,63,80,100
Rated short-time withstand current KA 20,25,31.5,40
Rated withstand current (peak value) KA 50,63,80,100
Required operation sequence   O-0.3s-CO-180s-CO
Rated short-circuit duration s 4
Times of making-breaking with the rated short-circuit current Times 30
Mechanical life Times 10000
Weight kg 110

1.2 Mechanical parameters

Item Unit Reference value
Gap of contacts mm 11±1
Contact overtravel mm 3.5±0.5
Average making speed m/s 0.6±0.2
Average breaking speed m/s 1.1±0.2
Bounce time in contact making ms ≤2
Non-synchronous making/breaking of contact ms ≤2 ≤3(40kA)
Resistance of the circuit of each phase μΩ ≤80
Permissible total wear thickness of the moving/fixed contact mm 3


Product standards:

1. IEC 62271-100 High-voltage alternating-current circuit-breakers

2. GB/T 11022-2011 Common specifications for high-voltage switchgear and controlgear standards

3. GB 1984 High-voltage alternating-current circuit-breakers

4. GB311.1 Insulation co-ordination for high voltage transmission and distribution equipment.



Ambient condition:

1. Altitude:≤1000m;

2. Ambient temperature: - 40℃-+40℃ (below 35C within 24 hours)

3. Relative humidity: ≤95% (daily average) or≤90% (monthly average)



Workshop:

Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker 3

Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker 4


Shipping:

1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:

Electrical Substation Circuit Breaker 12kv Indoor Vacuum Circuit Breaker 5
