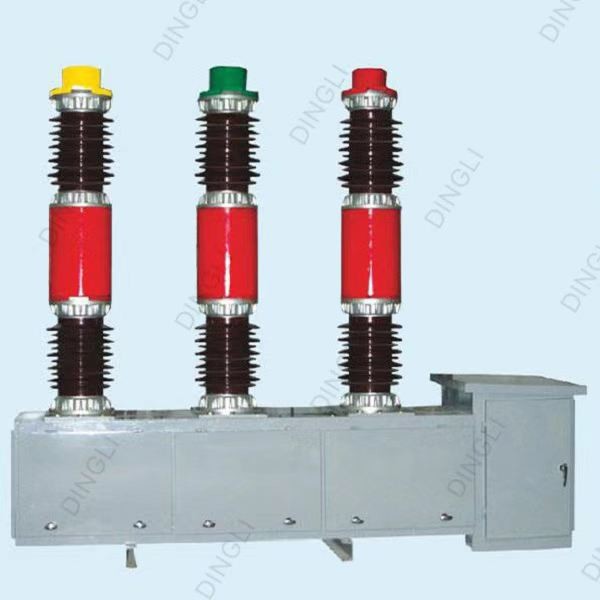

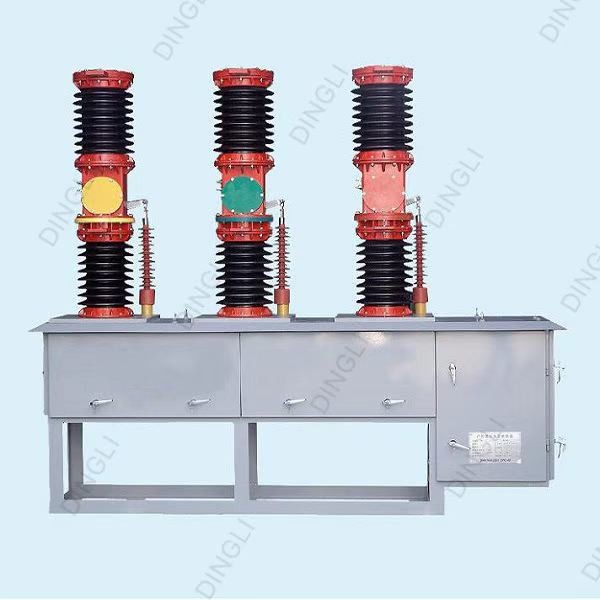

LW8-40.5 Type High Voltage SF6 Circuit Breaker Outdoor

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 300 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: LW8-40.5

Detail Information

Place Of Origin: China Poles Number: 3P
Type: SF6 Gas Certificate: ISO9001
Rated Voltage: 40.5KV Mechanical Life: 3000 Times
Rated Current: 1600/2000 Color: Black And Red
Keyword: Circuit Breaker Usage: Outdoor
High Light:

LW8-40.5 High Voltage SF6 Circuit Breaker

,

40.5kv High Voltage SF6 Circuit Breaker

,

LW8-40.5 sf6 high voltage circuit breaker

Product Description

Hot Selling LW8-40.5 Type Outdoor High Voltage SF6 Circuit Breaker



Quick Detail:

Main technical parameters

Description

Unit

Parameters

Rated Voltage

KV

40.5

Rated insulation level, lmin power frequency withstand voltage

KV

95

Rated insulation level, lightning impact withstand voltage (peak)

KV

185

Rated Current

A

1600/2000

Mechanical life

times

3000

SF6 air rated pressure (20 °C )

Mpa

0.45

Close lock pressure

Mpa

0.42

Rated short circuit breaking current

KA

20/25/31.5

Rated short circuit making current (peak)

KA

50/63/80

Rated short circuit withstand current (thermal stable current)

KA

20/25/31.5

Rated peak withstand current (dynamic stable current)

KA

63/80/100

Rated duration of short-circuit

S

4

Rated switching current of single capacitor bank

A

400



Summary LW8-40.5 type outdoor high voltage SF6 circuit breaker is the three phase 50JZ outdoor high voltage

equipment , apply to control and protect the 35KV power transmission and distribution system , also can used to

connect the circuit breaker and switching the capacitor bank .



LW8-41.5 type circuit breaker has the CT14 spring operating mechanism . The circuit breaker compliance with

the standard GB1984-89<> and IEC<> .



Regular Working Conditions

1. Ambient temperature : -10 ℃ ~ +40 ℃

2.The sea level height not above 3000

3.Seismic intensity : No more than 8 degrees

4.The installation environment shall be without obvious filth, no explosive or corrosive gas and dust The installation

site shall be free of violent shock.

5.Anti-pollution type is applicable to severely contaminated area .



LW8-40.5 Type High Voltage SF6 Circuit Breaker Outdoor 0

LW8-40.5 Type High Voltage SF6 Circuit Breaker Outdoor 1

LW8-40.5 Type High Voltage SF6 Circuit Breaker Outdoor 2

LW8-40.5 Type High Voltage SF6 Circuit Breaker Outdoor 3
