Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 1000 Unit/Units per Month
Brand Name: DINGLI Certification: ISO9001
Model Number: LW36

Detail Information

Place Of Origin: China Poles Number: 3
Type: High Voltage Certificate: ISO9001
Rated Voltage: 72.5kV~252kV, 72.5kV~252kV Rated Frequency: 50Hz
Rated Current: 1250A~3150A Rated Short Circuit Breaking Current: 31.5kA/40kA
Mechanical Life: 10000 Application: Electric Power Transmission
High Light:

Auto 110kV Substation Circuit Breaker

,

Dear Tank Load Break Switch

,

110kV SF6 Load Break Switch

Product Description

Auto Breaker Outdoor SF6 Dear Tank Load Break Switch 110kV Substation



Product Description:

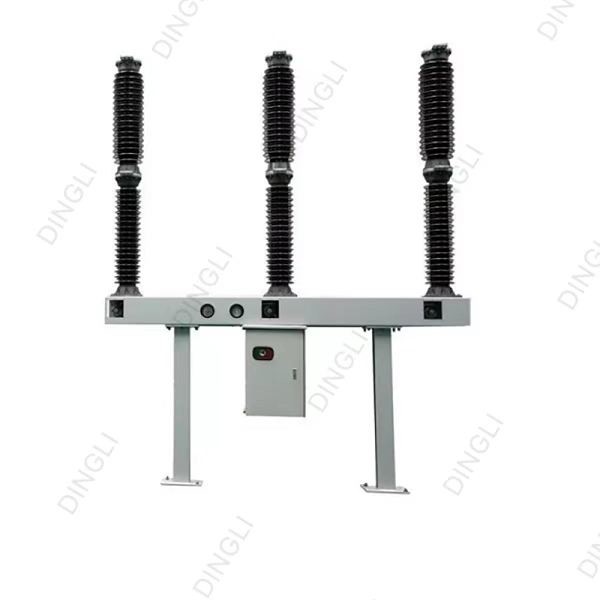

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 0

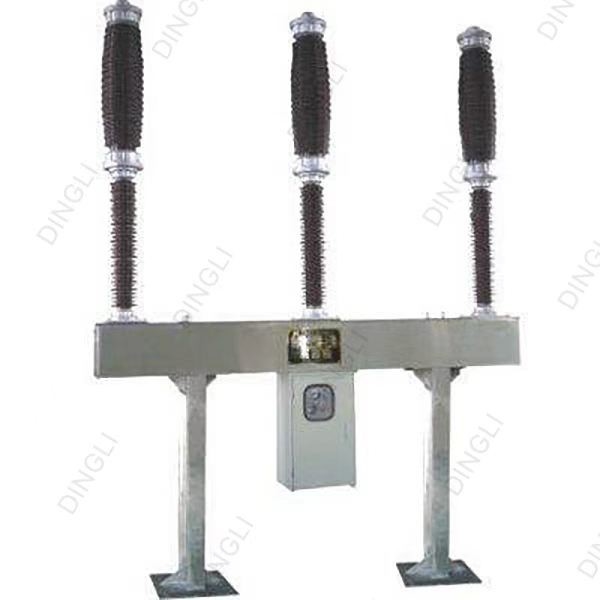

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 1

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 2

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 3

Specification

Type

High Voltage, Outdoor

Pole number

3

Rated Voltage

72.5kV~252kV

Rated Cuttent

1250A~3150A

Rated short circuit breaking current

31.5KA/40kA

Rated short-time withstand current

31.5kA/40kA

Rated peak withstand current

100kA

Rated short time continual time

3s

Certificated:

ISO9001

Mechanical Life

10000

Application

Electric Power Transmission

OEM

accept

Package

Wooden case

Description

SF6 circuit breaker LW36 is outdoor circuit breaker using sulfur hexafluoride gas as the arc extinguishing and

insulating medium, and adopts the most advanced self-energy arc-extinguishing technology in the world. It has

the characteristics of long electrical life, low operating power and high reliability.

Environmental Condition

Ambient temperature:-40℃~+40℃

Altitude:≤2000m

Wind pressure:≤700Pa

Daily temperature differenc:25℃

Icing thickness:≤10mm

Air pollution level:Ⅲ

Features

a) Reliable breaking performance

b) Reliable mechanical operating performance: high operational reliability, mechanical life up to more

than 10000 time

c) Reliable insulation

d) Reliable sealing performance

e) Strict process of product components


Shipping:

1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 4
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.


Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 5

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 6



Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 7

Customers and Partners of Dingli

Auto 110kV Substation Circuit Breaker Outdoor SF6 Dear Tank Load Break Switch 8
