High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 500 Set/Sets per Month
Brand Name: DINGLI Certification: ISO9001
Model Number: ZW32

Detail Information

Place Of Origin: China Poles Number: 3
Type: High Voltage Color: Grey
Rated Voltage: 10-12kv Rated Frequency: 50Hz
Rated Current: 630A Feature: Circuit Breaker,overload Protect
Insulation Material: Silicone Rubber Application: Substation
High Light:

Vacuum Circuit Breaker For Substation

,

11kv HV Vacuum Circuit Breaker

,

High Voltage Earth Leakage Circuit Breaker

Product Description

High Voltage Earth-Leakage 11kv Vacuum Circuit Breaker For Substation



Quick Detail:

Products specification
Item Unit Parameter

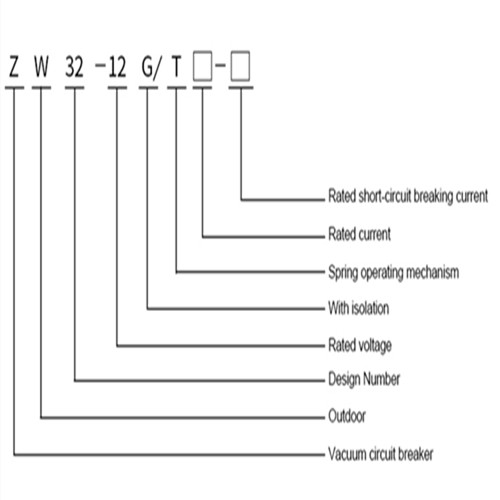

Earth-leakage 11kv vacuum circuit breaker

























Rated voltage KV 12
Rated frequency Hz 50
Rated current A 630
Rated short-circuit breaking current KA 20
Rated peak withstand current (peak) KA 50
Rated short-time withstand current KA 20
Rated short-circuit current (peak) KA 50
Mechanical life Times 10000
Rated short-circuit breaking current breaking frequency Times 30
Power frequency withstand voltage (1min): (wet) (dry) same, ground/fracture KV 42/48
Lightning impulse withstand voltage (peak) is the same, ground/fracture KV 75/85
Secondary circuit 1min power frequency withstand pressure KV 2

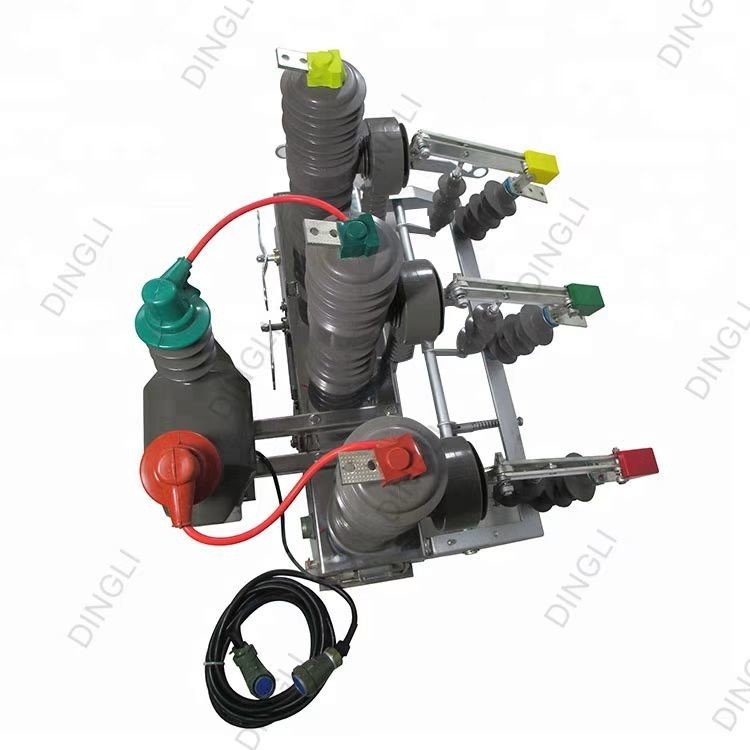

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 1

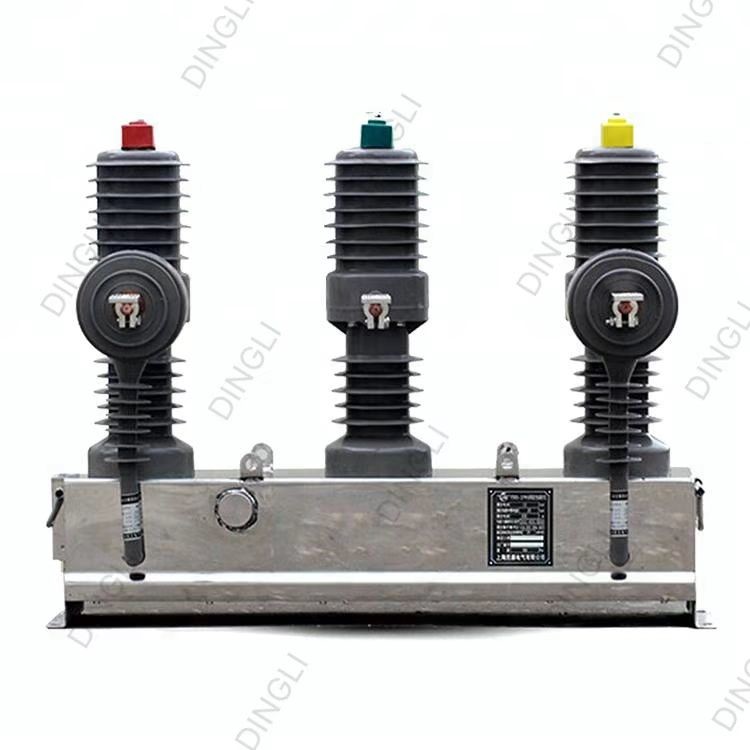

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 2

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 3

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 4

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 5

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 6
Shipping:

1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 7
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.


High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 8

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 9



Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 10

Customers and Partners of Dingli

High Voltage Earth Leakage 11kv Vacuum Circuit Breaker For Substation 11
