40.5kv 1250A Outdoor High Voltage AC Vacuum Substation Circuit Breaker

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: ZW7-40.5

Detail Information

Place Of Origin: China Poles Number: 3
Type: Vacuum Breaker, Vacuum Certificate: ISO9001
Rated Voltage: 40.5kv Rated Frequency: 50Hz
Rated Current: 1250A, 1600A,2000A,2500A Rated Short-Circuit Breaking Current: 20KA / 25KA / 31.5KA
Machanical Life: 10000 Times Application: Outdoor 33kV Substation, Power Plant
High Light:

40.5kv 1250A Substation Circuit Breaker

,

AC Vacuum Substation Circuit Breaker

,

40.5kv Circuit Breaker Used In Substation

Product Description

ZW7-40.5kv 1250A Outdoor High Voltage AC Vacuum Circuit Breaker For Substation



Quick Detail:

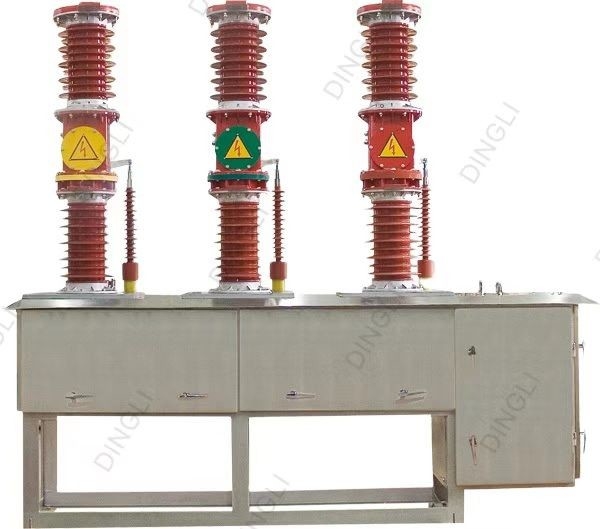

40.5kv 1250A Outdoor High Voltage AC Vacuum Substation Circuit Breaker 0

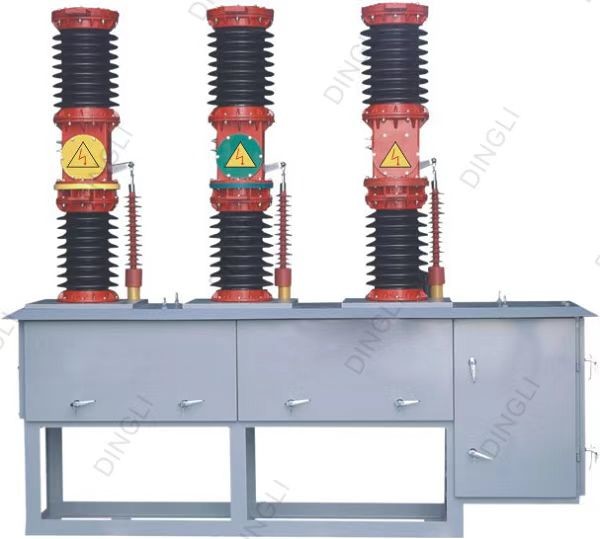

40.5kv 1250A Outdoor High Voltage AC Vacuum Substation Circuit Breaker 1

40.5kv 1250A Outdoor High Voltage AC Vacuum Substation Circuit Breaker 2

Environmental Conditions

1.Ambient temperature : -40℃~+40℃ ;

2.Altitude : ≤1000m ;

3.Maximum wind speed is 10km/h , minimum wind speed for the rated level (132/230kv) is 3.2km/h ;

4.Earthquake intensity : ≤8 level ;

5.Minimum nominal creepage distance : 31mm/kV ;

6.Air pollution degree : Class IV .

Main Technical Parameters

No Item Unit Value
1 Rated voltage kV 40.5
2 Rated insulation level

1min power frequency

Dry test (fracture, inter-phase, to earth)

Wet test (to earth, external insulation)

kV

95



85

Lightning impulse withstand voltage (peak) 185
3 Rated current A 1250, 1600, 2000, 2500
4 Rated short circuit breaking current kA 20, 25, 31.5
5 Rated short circuit making current (peak) kA 50, 63, 80
6 Rated peak withstand current kA 50, 63, 80
7 Rated short time withstand current kA 20, 25, 31.5
8 Rated operating sequence   O-0.3S-CO-1 80S-CO
9 Rated short circuit breaking current breaking number times 20
10 Mechanical life times 10000
11 Circuit breaker net weight kg 800
12 Average opening speed m/s 1.4~1.7
13 Average closing speed m/s 0.4~0.7
14 Closing time ms 50≤t≤200
15 Opening time ms 30≤t≤60
